Cutskill Argon Regulator Flowmeter For MIG & TIG

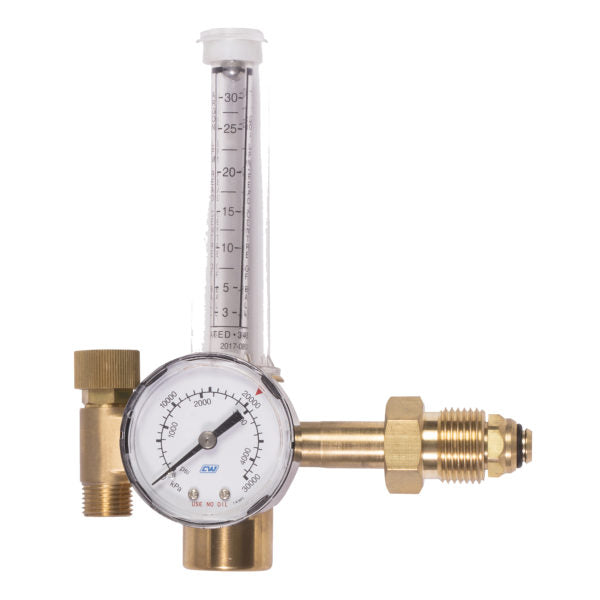

The CutSkill Side Inlet Regulator Flowmeter provides accurate indication of flow rate of shielding gases for MIG and TIG welding processes. The Regulator/Flowmeters have been designed for TIG processes and for MIG, Short Arc and Spray Arc applications and are calibrated for O to 30 lpm.

The metering ball is stainless steel. They are constructed with a machined brass body and cap, are back pressure compensated and have a self-reseating relief valve – not designed to protect down stream equipment.

• Maximum 30 LPM Flow Rate
• Pressure compensated (fixed pressure/variable orifice)
• Maximum Inlet Pressure 20,000kPa
• Robust brass body and fittings
• Failsafe against over pressure

Calibrated flow rates at 345 kPa inlet pressure.

• 0 to 30 lpm
• Inlet connection 5/8” BSP – 18 Type 10 (Side Inlet)
• Outlet connection 5/8” – 18 UNF – RH
