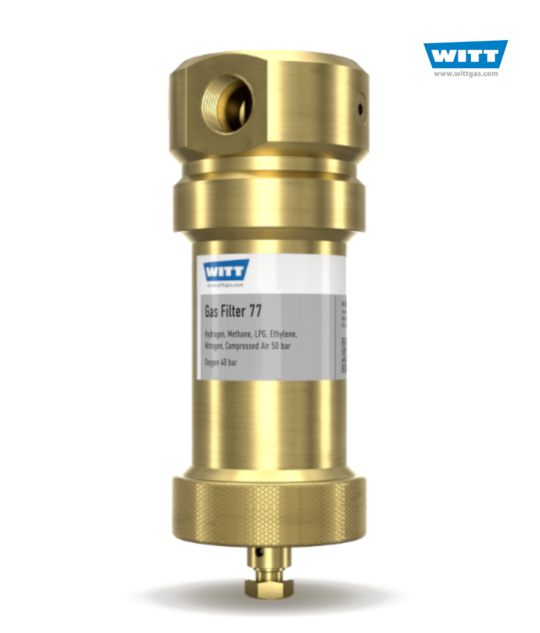

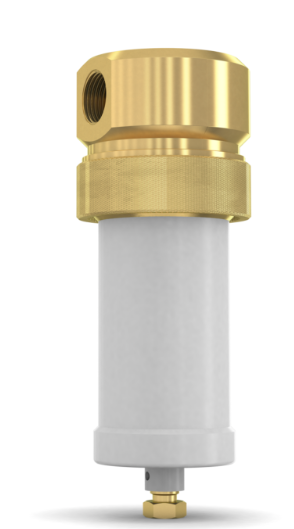

Gas Filter 77: Pipeline, 5, 7-10, 40 & 50µm versions

WITT gas filters for reliable protection against contamination and condensate.

Benefits:

• ultra-fine filtering out of mechanical impurities through bronze or stainless steel filter inserts
• broad range of uses – compatible with many technical gases
• filter inserts in stainless steel with a filtering fineness of 7-10 µm or 40 µm
• filter inserts in bronze especially for O2 with a filtering fineness of 5 µm or 50 µm, according to EIGA
• change of filter possible while installed due to user-friendly design
• high flowrate thanks to flow - maximising design
• condensate can be collected and removed using condensate drain
• easy to install thanks to large choice of connections
• reliable filtering performance increases service life of downstream fittings and equipment
• meets all the requirements of EIGA Guideline IGC Doc 13/12/E “Oxygen Pipeline and Piping Systems“
• pre-cleaned to EIGA Guideline IGC Doc 13/12/E, and ready for O2
• withstands maximum line pressure (40 bar) even if it becomes clogged

Operation / Usage:

• Particularly well suited for laser systems
• Gas filter model 77 is designed for installation in pipelines
• the gas purifiers with condensate drain must be installed vertically

Maintenance:

• the condensate should be drained at regular intervals
• the filter inserts must be checked regularly and replaced if necessary

Approvals

Company certified to ISO 9001 CE-marked in accordance with PED 97/23/EC Cleaned for Oxygen Service according to EIGA IGC Doc 13/12/E: Oxygen Pipeline and Piping Systems
