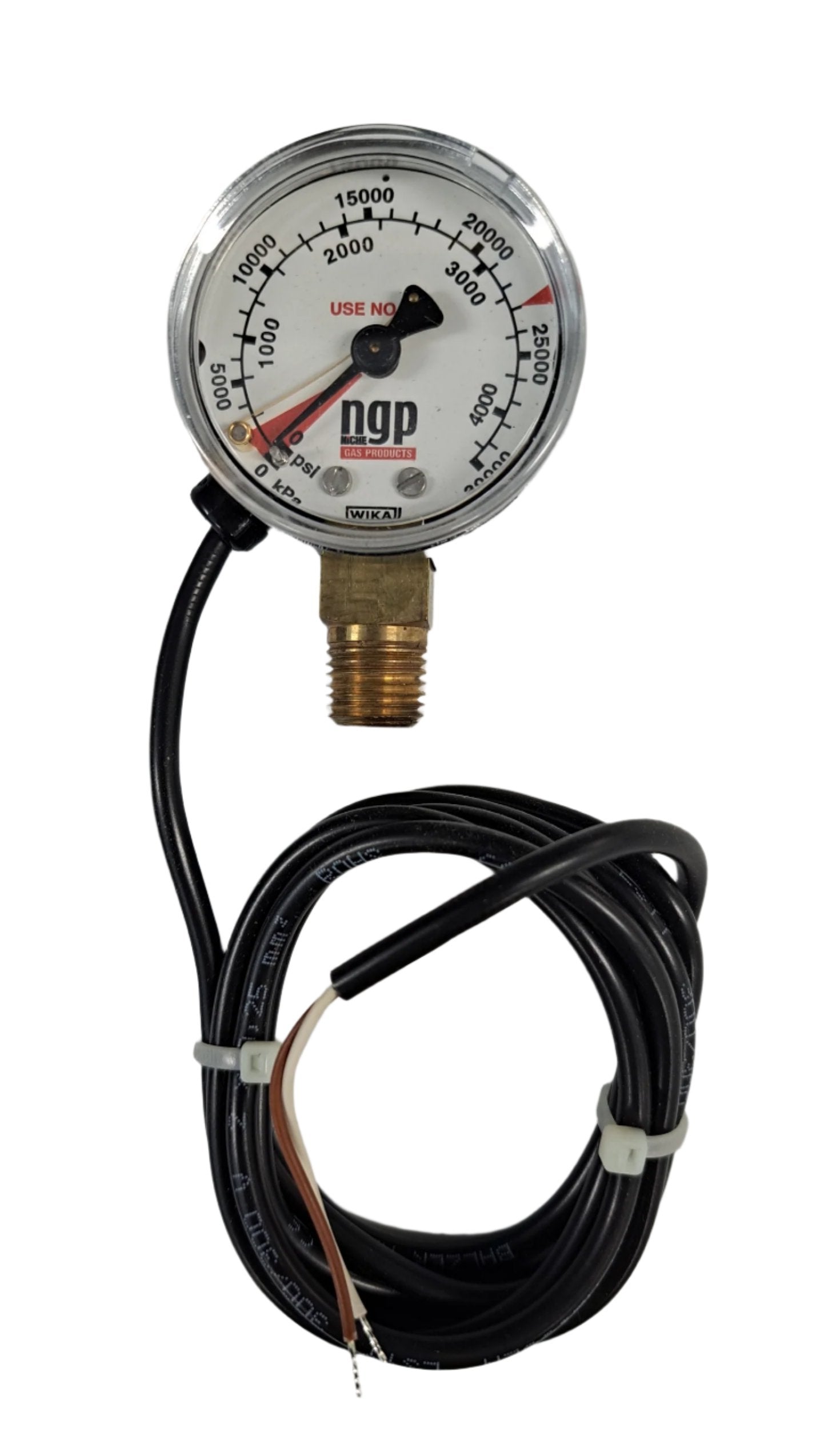

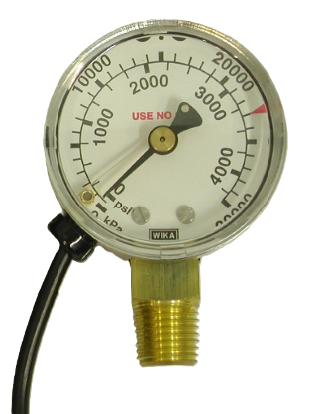

30,000 kPa, set trigger 30 bar contact gauge

Wika contact gauge for signalling a fixed lower limit of cylinder contents.

When the cylinder contents falls to 3,000 kPa, the set point is triggered. This is an indication only and gives enough time for a new cylinder to be organised.

Connect the cable to alarm panel or signalling system. Contact completes the circuit to alert that the set point has triggered.

1.5 -24V DC

5 - 100 mA, 3W

Not gas specific. 50mm, ¼″ NPT male brass connection

WIKA safety gauge. Stainless steel case, 1.5m cable
