Light Weight - Medium Duty Oxy-LPG Torch Kit (formerly Buddy Kit 1)

Light Weight - Medium Duty - Oxy-LPG Torch Kit

A versatile medium duty oxy-fuel torch kit comprising a Model 19-6 torch handle, “E” style equal pressure acetylene mixer, and a selectable 5090 series brazing tip.

Torch Handle – Model 19-6

A medium duty combination torch handle with front valve control, suitable for use with all fuel gases.

Key Features:

• Silver-brazed twin inner tube construction for strength, safety and durability while remaining lightweight
• Tube-within-a-tube design supports optimum flow performance and maximum leak integrity
• Front valves allow easier adjustment during operation
• 9/16 in. – 18 B-hose fittings
• Embossed model number for simple identification of compatible components
• Length: 7 1/2 in. (190.53 mm)
• Fitted with FlashGuard® replaceable check valves

Performance:

• Cuts up to 2 in. (50.6 mm) plate
• Welds up to 5/16 in. (7.9 mm) plate

Compliance:

• ISO 5172

Mixer – “S” Style (Equal Pressure, LPG)

Professional-grade equal pressure mixer for LPG applications.

Specifications:

• “E” Style – Equal Pressure
• Gas Type: LPG

Compatibility:

• 5090N / 1390 / 0090 / J632 tips
• 019038 handle

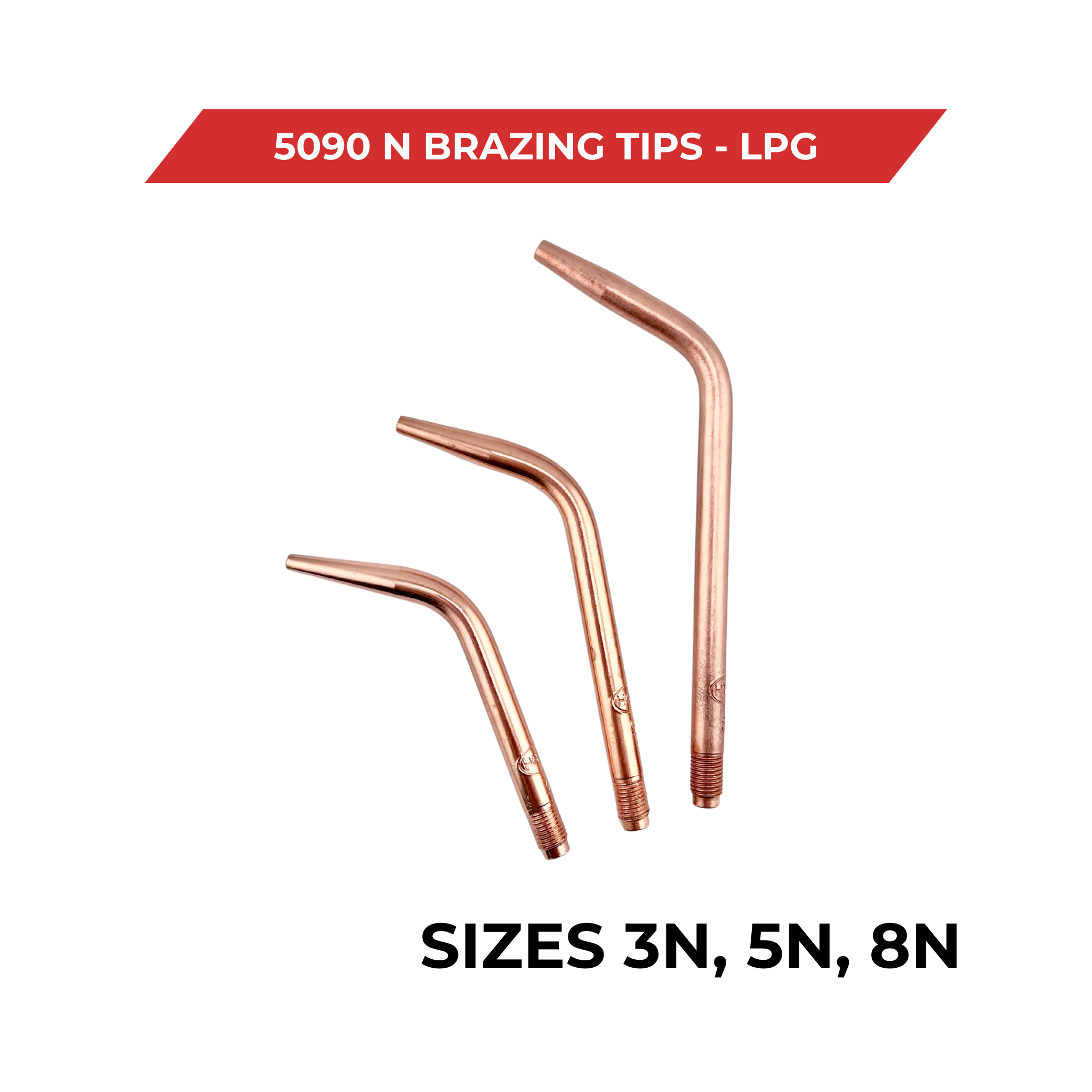

5090N Brazing Tips – LPG

Precision swaged tips available in a range of sizes to suit welding and brazing applications.

Key Features:

• Sizes: 3N, 5N and 8N
• Constructed from tellurium copper
• Metal-to-metal seat helps minimise leaks
• Precision drilled and swaged for consistent flame performance
• Excellent machining properties contribute to overall tip quality

Specifications:

• Suitable for welding and brazing with LPG
• Compatible with Harris universal mixer
• Tip thread size: 5/16" – 27
