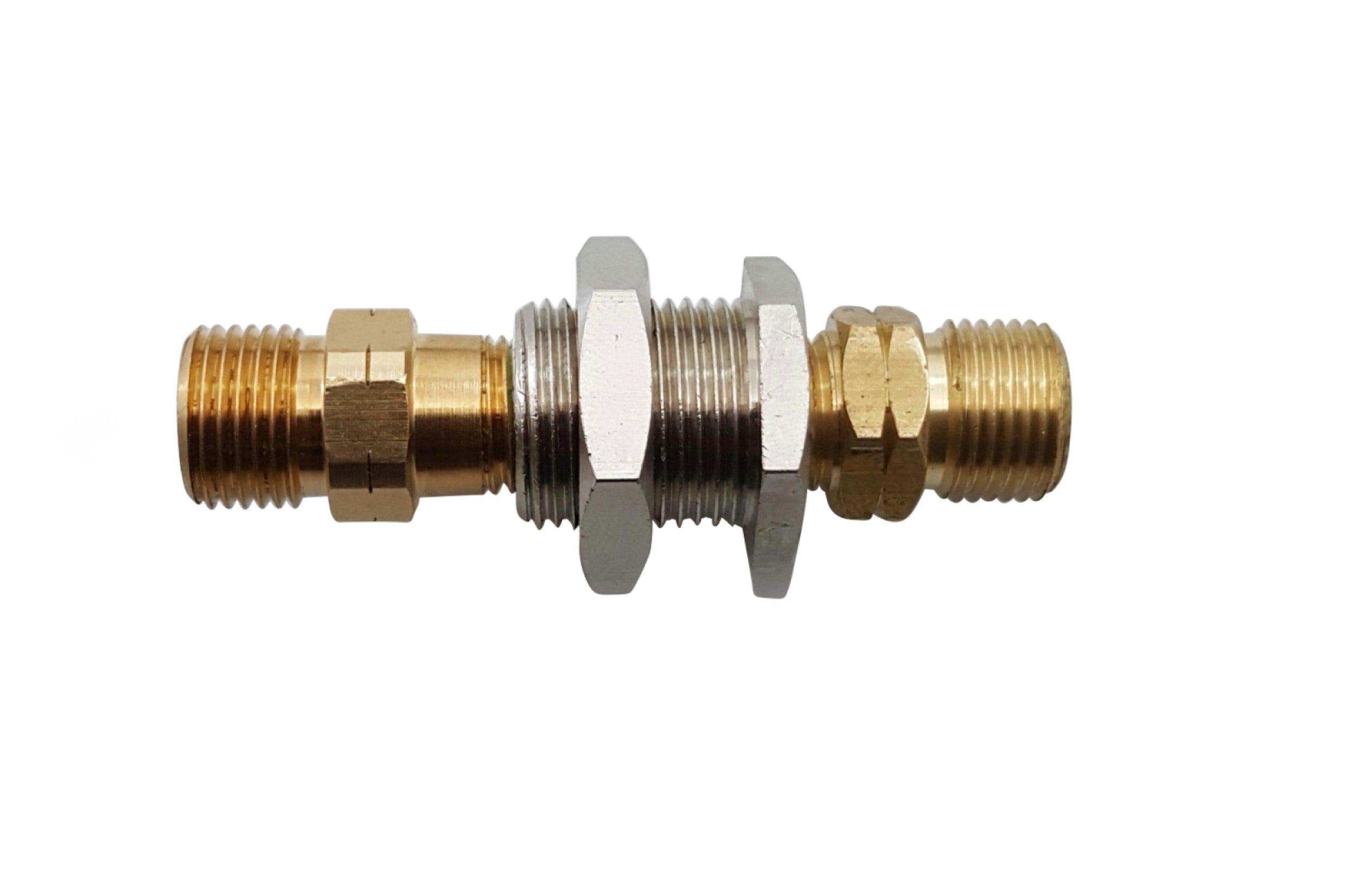

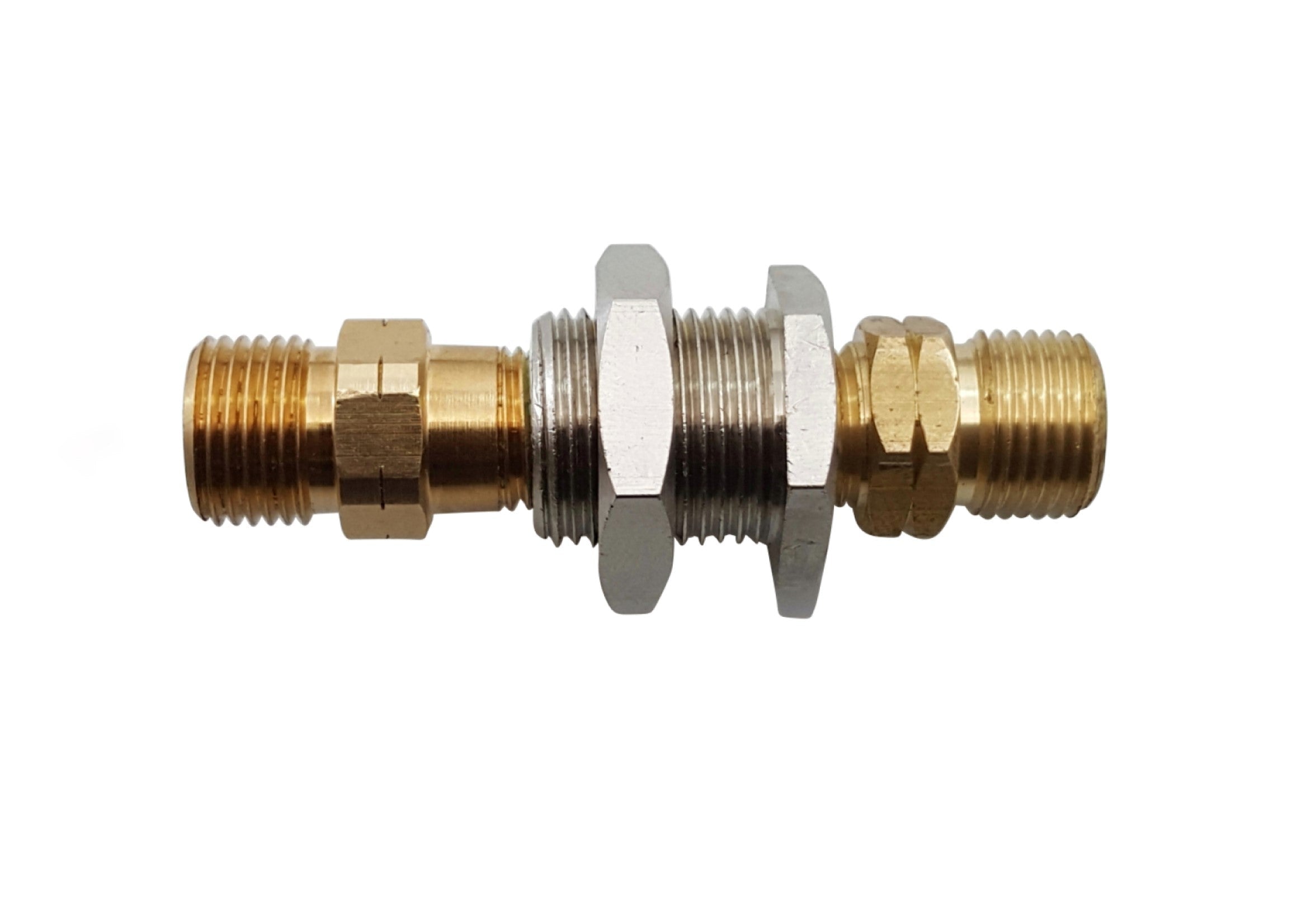

Bulkhead connector, 5/8"-18 LH (Fuel gases) male

Bulkhead adaptor for wall or cabinet pass-throughs

Allows welding hoses for acetylene, LPG, and similar gases to be routed through a wall, cabinet, or enclosure.

Thread: 5/8″-18 LH male threads on both ends

Cut-out diameter: 20 mm

Maximum wall thickness: 14 mm

Maximum working pressure: 2400 kPa

The plated nut unscrews so the assembly can be passed through the cut-out and reassembled securely.

Alternate version: A right-hand oxygen version (5/8″-18) is also available (NGP6118).
