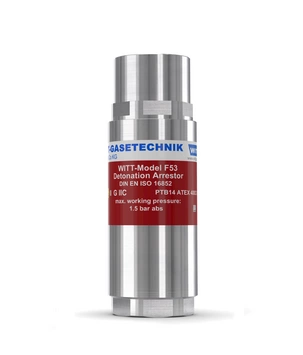

Detonation Flame Arrester F53

The deflagration volume protection device is ideal for protection of plants and equipment with a volume of max. 4.6 litres. Suitable as a detonation flame arrester ideal for mounting in small pipelines and to protect appliances, for example gas analysers.

Benefits:

• compact design according to DIN EN ISO 16852
• offer security in case of deflagrations and stable detonations
• applicable for almost all flammable gases and gas mixtures (not combined with oxygen)
• low life cycle costs
• may be mounted in any position / orientation
• compact size for easy, problem free installation
• designing and testing according to Directive 94/9/EC test report: PTB Ex 14-44012
• EC type-examination certificate PTB 14 ATEX 4003 X

Function & description:

• the fitting protects against deflagration and stable detonations. This allows mounting into pipelines in any position / orientation, independent of distance to the potential source of ignition. The small and compact design of the flame arrester is for use in pipelines.

Maintenance:

• annual testing of body leak tightness and flow capacity is recommended
• WITT is happy to supply special test equipment
• Flashback Arrestors are only to be serviced by the manufacturer

Approvals

Company certified to ISO 9001 and ATEX 95 Directive 94/9/EC
