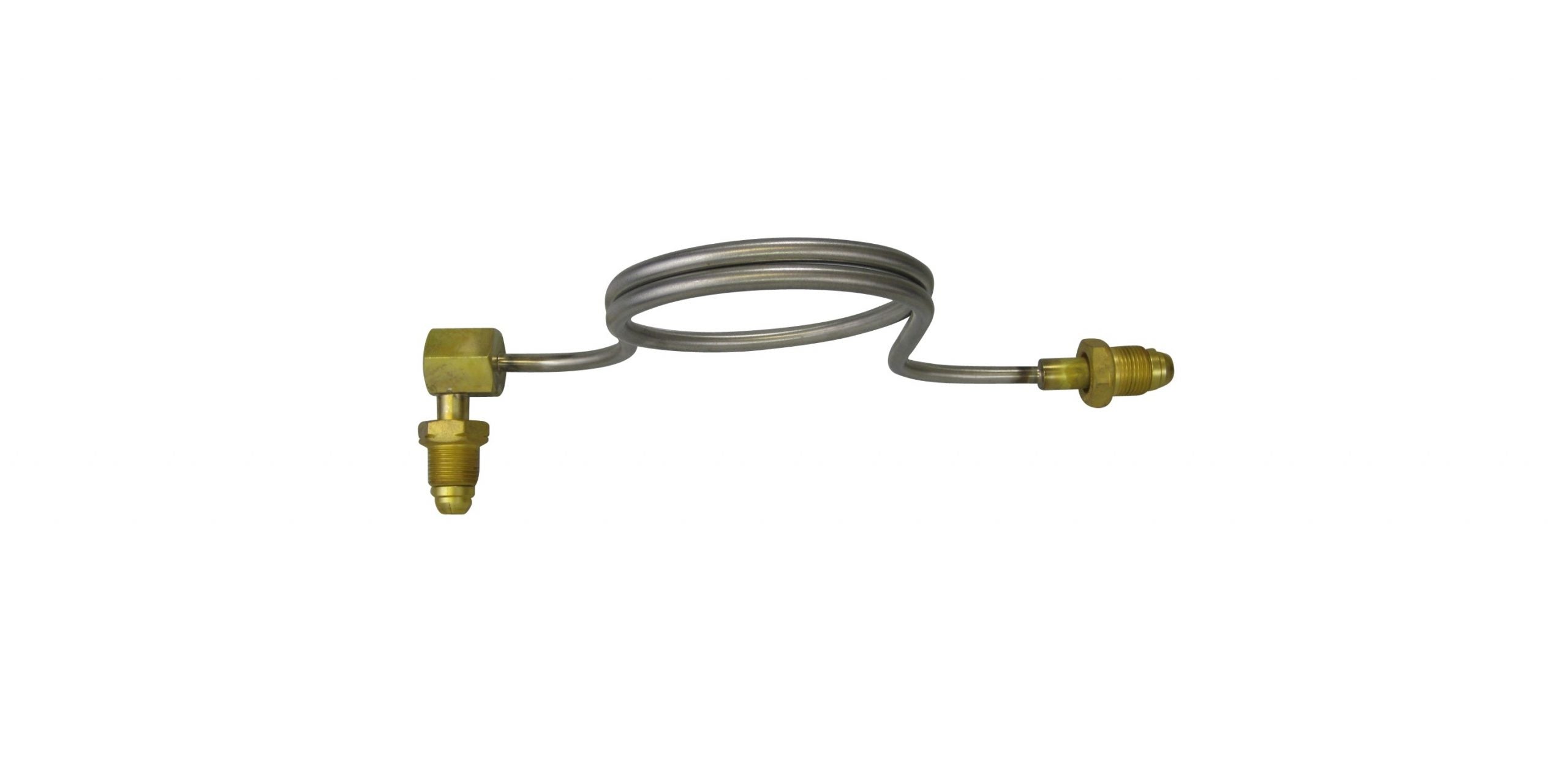

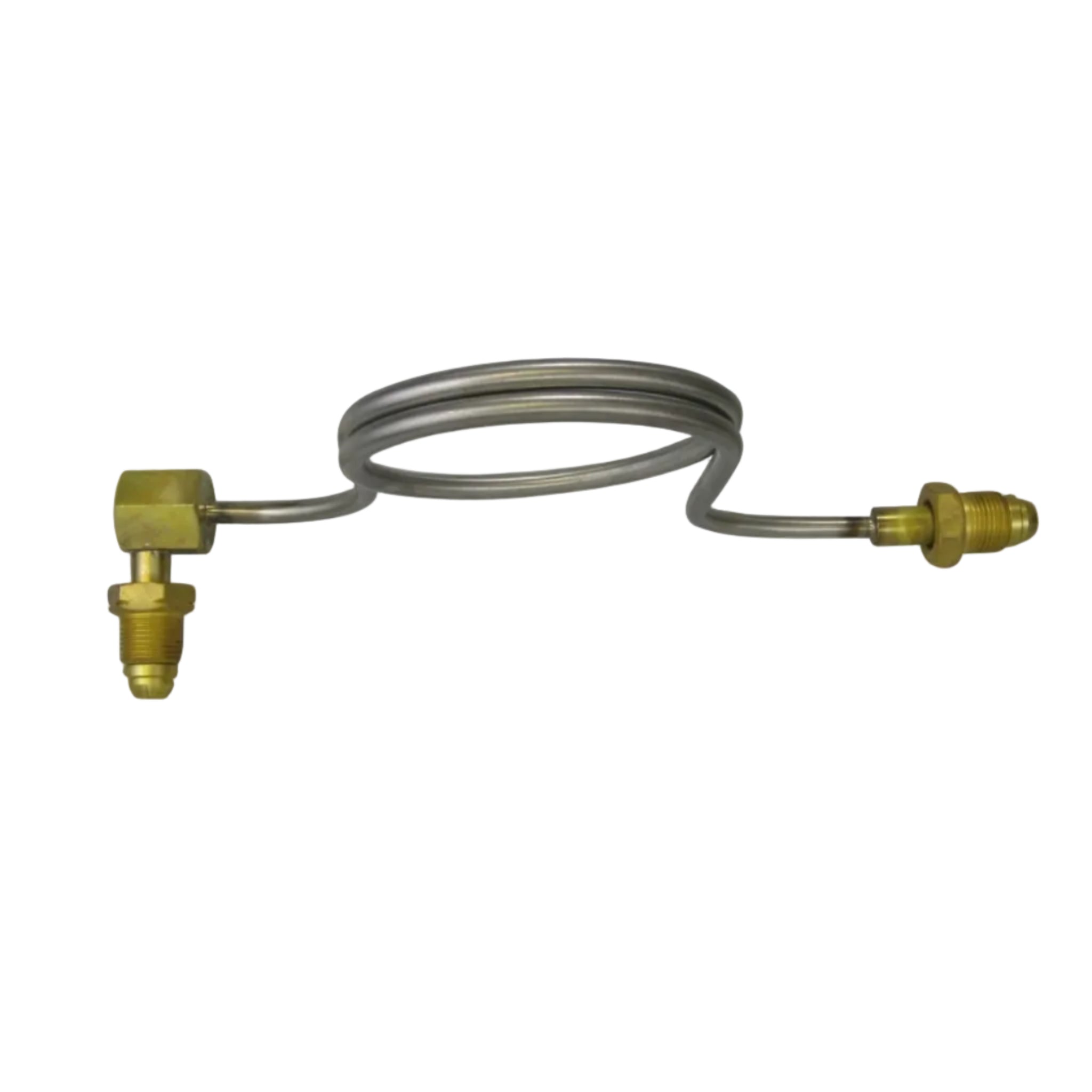

End coil, Acetylene or Hydrogen, Type 20

Acetylene / Hydrogen Extension Coil – Type 20 -5/8" BSP LH, 2 x Male to 1 x Female

Extend your cylinder manifold system by connecting additional acetylene or hydrogen cylinders. Designed to integrate seamlessly into multi-cylinder setups where increased gas supply is required.

Construction
Manufactured from brass with a stainless steel tube for strength and durability. Pressure tested to 200 bar for reliable performance.

Applications
Suitable for heating, cutting, and other gas applications where higher flow or extended gas supply is required.

Note
Acetylene withdrawal rates are limited to approximately 1/7 of the cylinder capacity. For a 7m³ cylinder, the maximum recommended flow is 1m³/hr (17 L/min).

For applications exceeding this rate, cylinders should be manifolded. This is essential for most portable large heating applications. If unsure, refer to your gas supplier for guidance.
