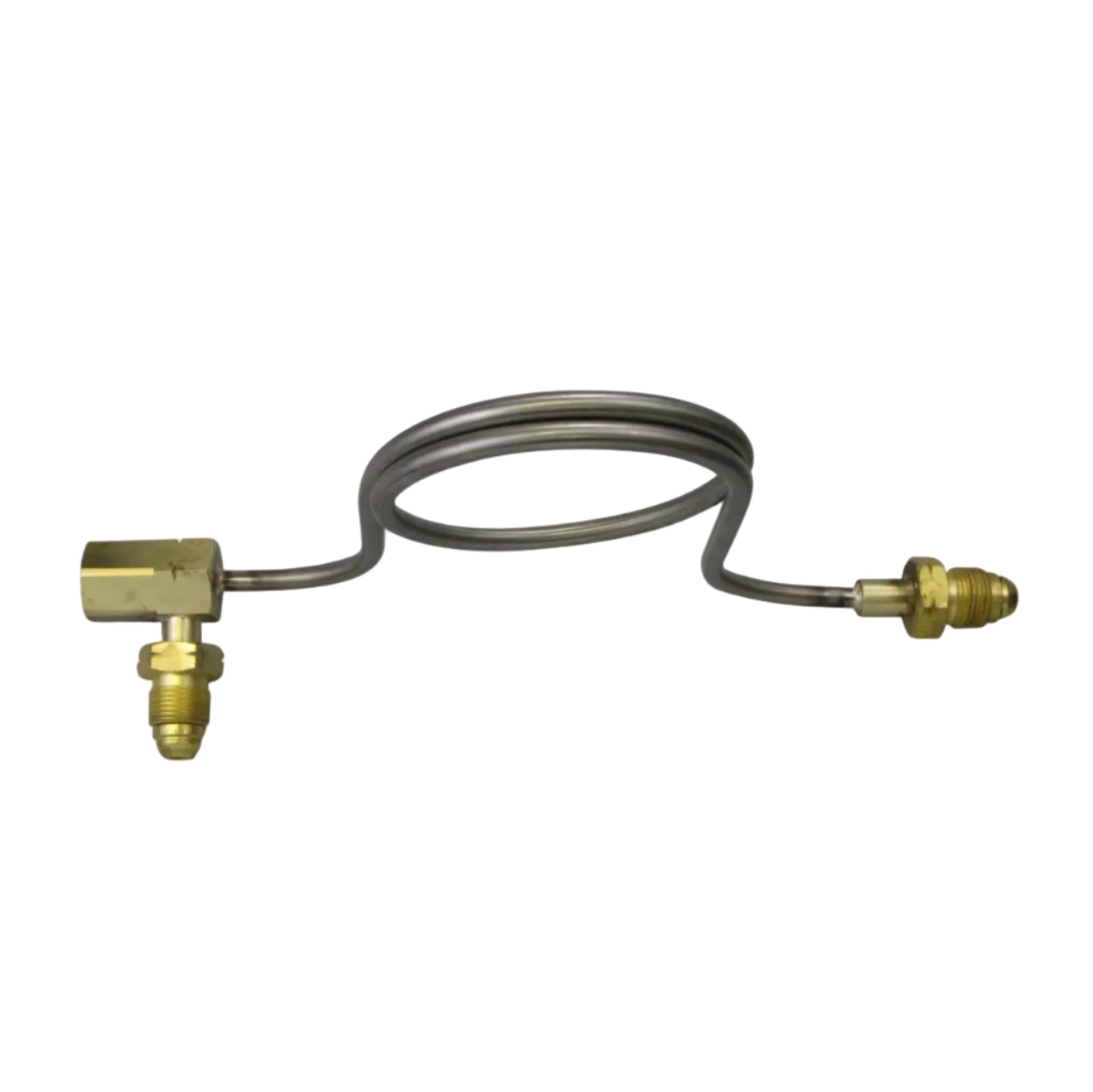

Extension coil, Acetylene or Hydrogen, Type 20

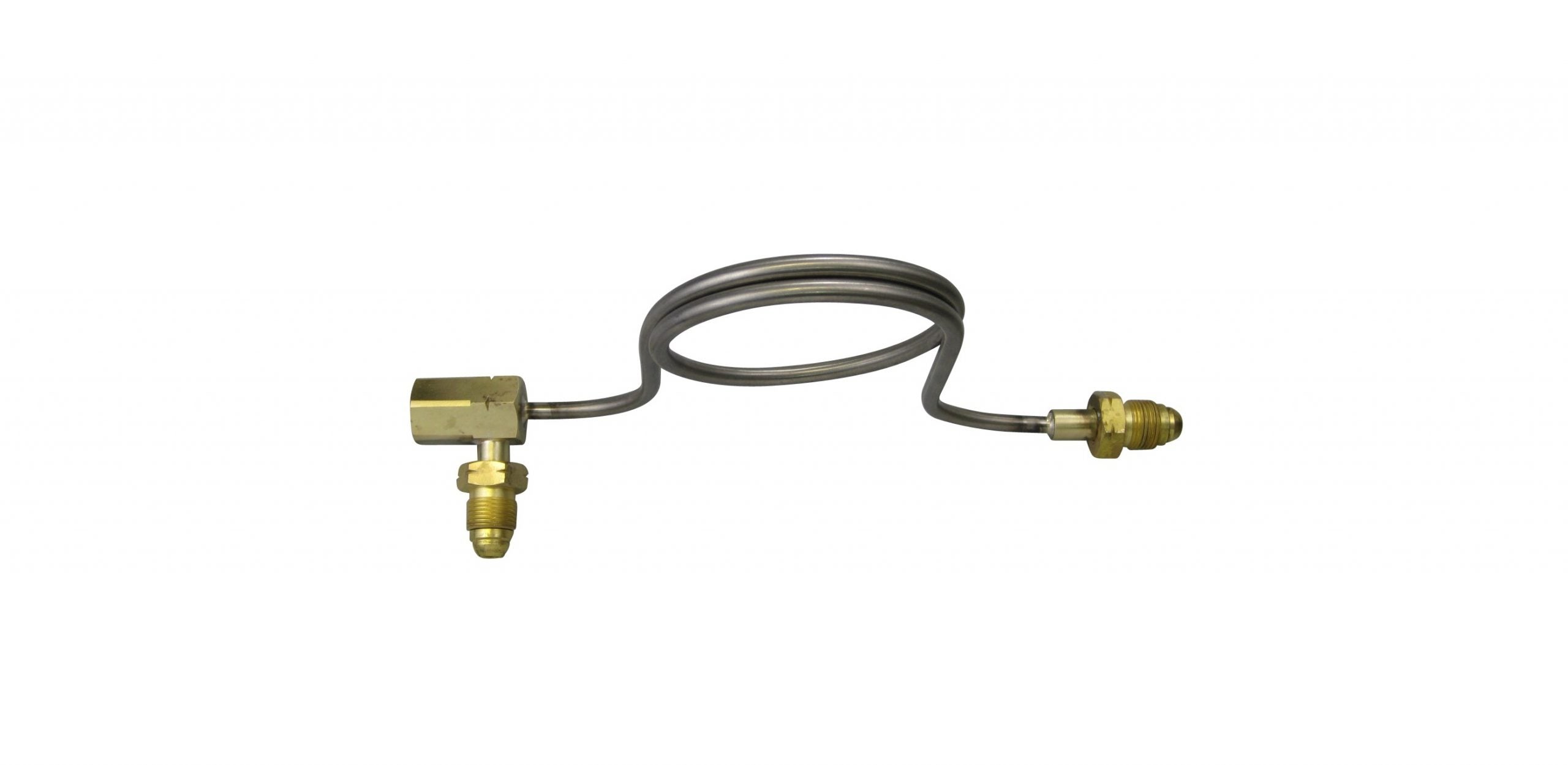

Acetylene / Hydrogen Extension Coil – Type 20 (5/8" BSP LH, 2 x Male to 1 x Female)

Extend your cylinder manifold system by connecting additional acetylene or hydrogen cylinders. Designed to integrate seamlessly into multi-cylinder setups where increased gas supply is required.

Construction
Manufactured from brass with a stainless steel tube for strength and durability. Pressure tested to 200 bar for reliable performance.

System Requirements
Used in conjunction with:

• End Connection Coil (NGP2022)
• Tee Junction Block (NGP2021)

Allows connection of three or more cylinders in a manifold configuration.

Applications
Suitable for heating, cutting, and other gas applications where higher flow or extended gas supply is required.

 Note
Acetylene withdrawal rates are limited to approximately 1/7 of the cylinder capacity. For a 7m³ cylinder, the maximum recommended flow is 1m³/hr (17 L/min).

For applications exceeding this rate, cylinders should be manifolded. This is essential for most portable large heating applications. If unsure, refer to your gas supplier for guidance.
