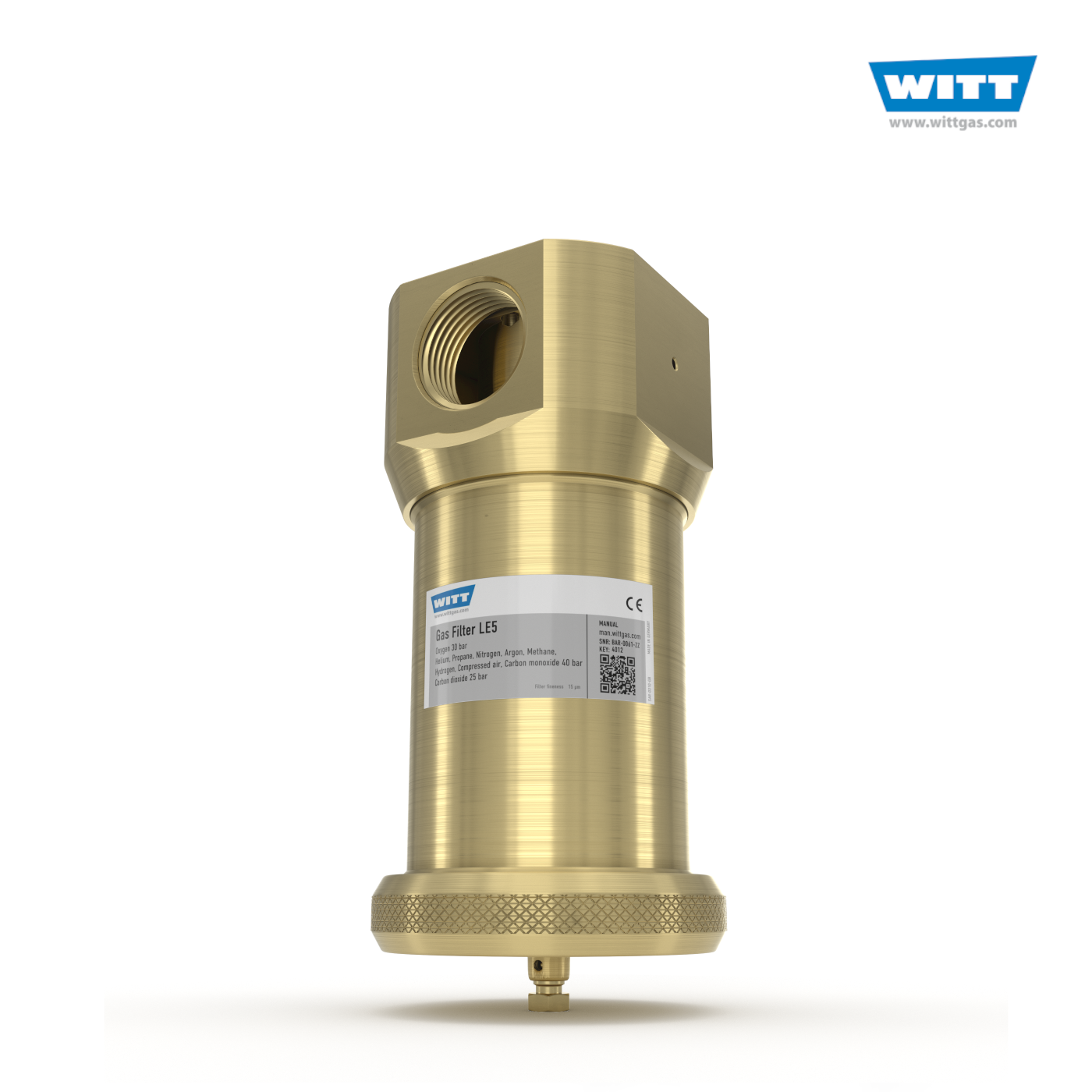

Gas Filter LE5: Pipeilne - 15µm, G2", for Technical Gases

WITT-Gas filter LE5 protects downstream components and systems from contamination and condensates. Its size allows high flows with low pressure drop and compliance with the EIGA, AIGA and CGA maximum velocity limits.

Benefits
● ultra fine filtering out of mechanical impurities through bronze
● broad range of uses – compatible with many technical gases
● change of filter possible while installed due to userfriendly design
● high flowrate thanks to flow maximising design (760 Nm3/h for O2 at 30 bar inlet pressure and 50 mbar pressure drop)
● condensate can be collected and removed using condensate drain
● optimised design for easy installation and maintenance
● reliable filtering performance increases service life of downstream fittings and equipment

Operation / Usage
● Gas filter are designed for installation in pipelines
● the gas purifiers with condensate drain must be installed vertically

Maintenance
● the condensate should be drained at regular intervals
● the filter inserts must be checked regularly and replaced if necessary

Approvals
Company certified according to ISO 9001 and PED 2014/68/EU Module H and D
CE-marked according to: PED 2014/68/EU
Designed for Oxygen Service in accordance with EIGA 13/20, CGA G-4.4 and AIGA 021/20: Oxygen Pipeline and Piping Systems
