Vendor: Niche Gas Products
Availability: In Stock
$230.00
$230.00

Specification

  • Maximum Inlet Pressure: 200 Bar @ 15° C
  • Inlet Connection: M18 RH for industrial non-fuel gases, or LH for industrial fuel gases. (3/8” BSP RH , 3/8” BSP LH also available)
  • Outlet Connection: refer to pdf
  • Temperature Operating Range: 0-60° C
  • Weight: 1.0 kgs
  • Basic Dimensions: 75mm x 80mm x 170mm
Gas Type M18x1.75 inlet: Oxygen
Gas Type 3/8" BSP inlet: Oxygen
Subtotal: $230.00
Description
Description
x

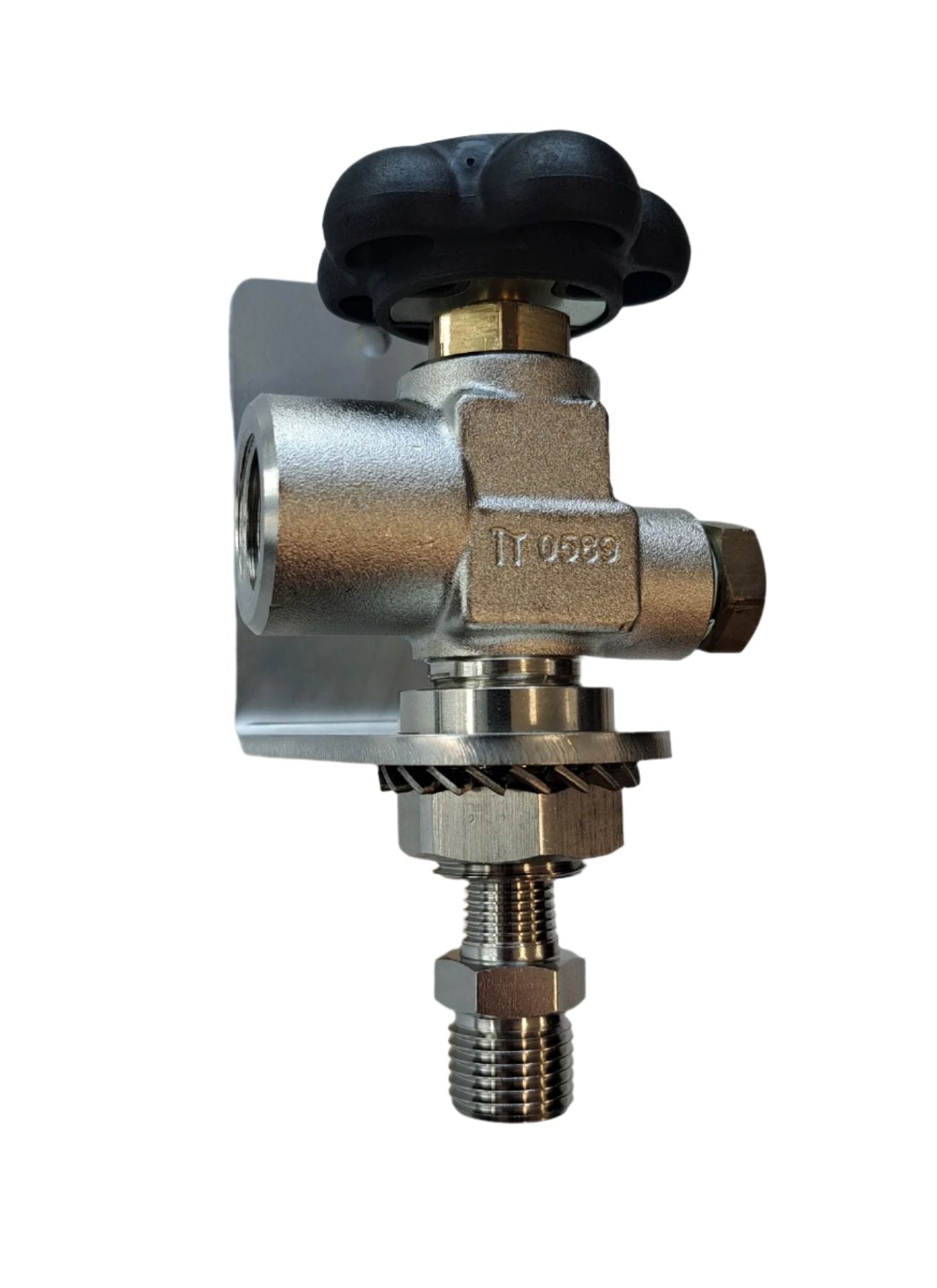

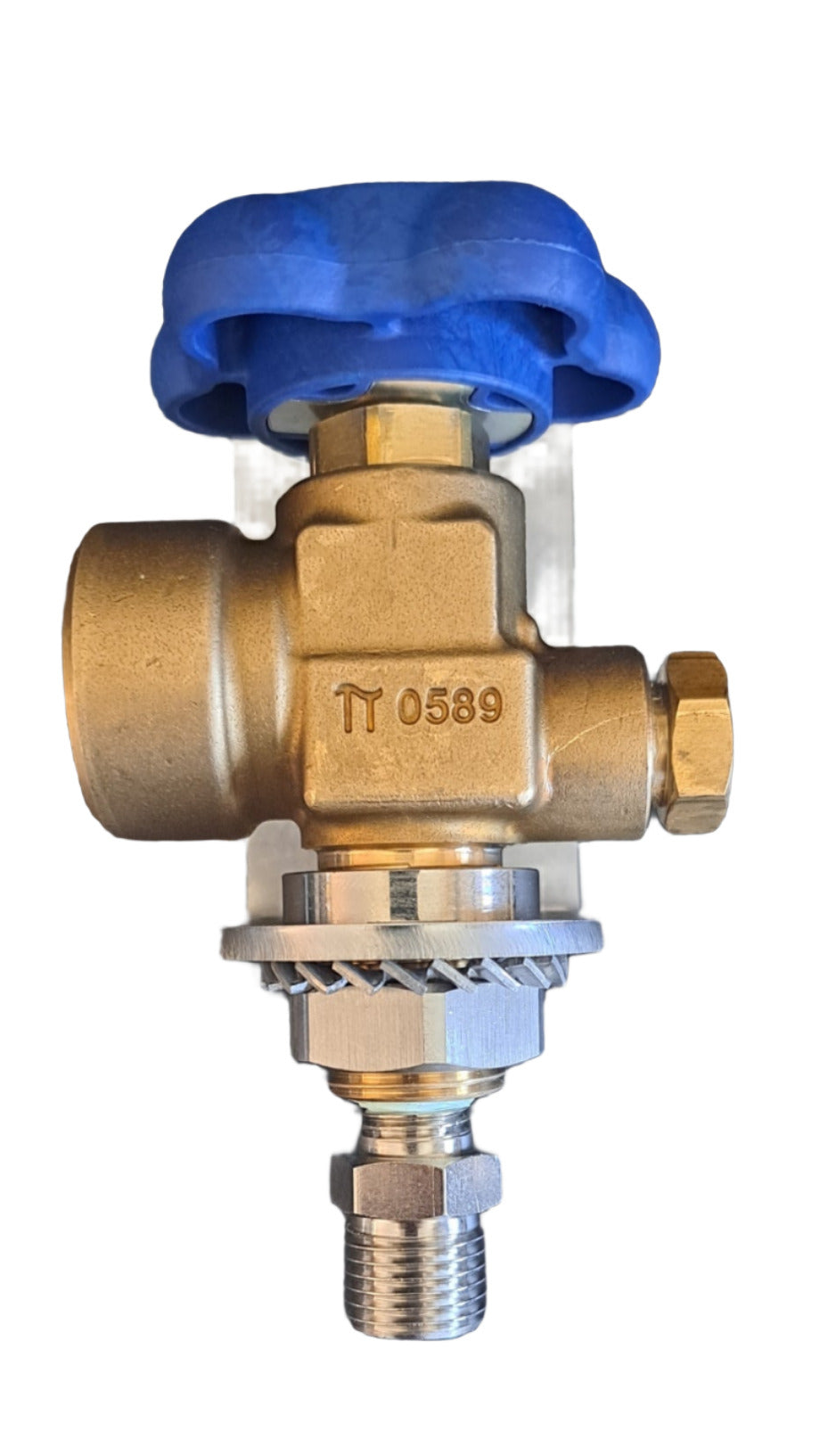

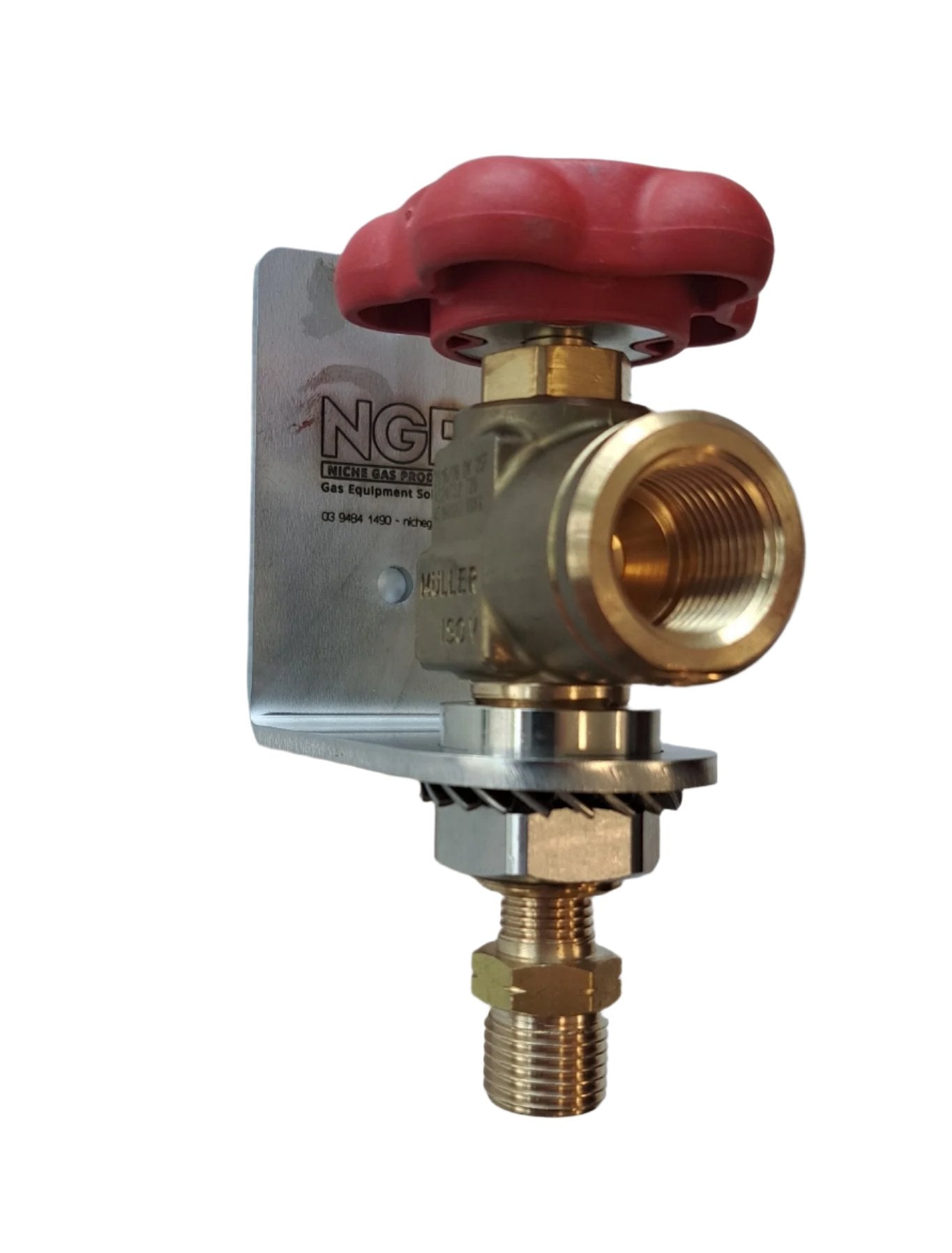

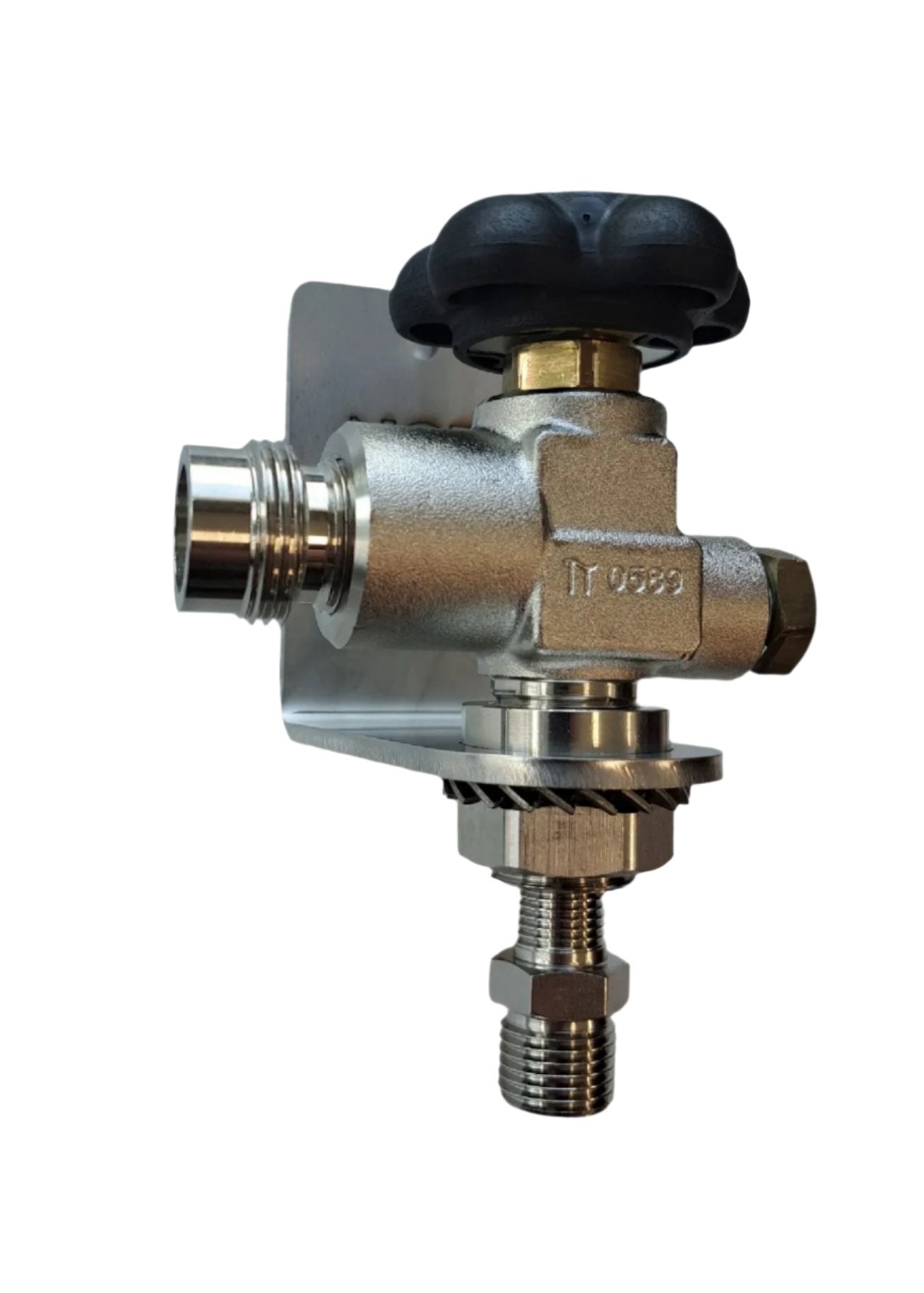

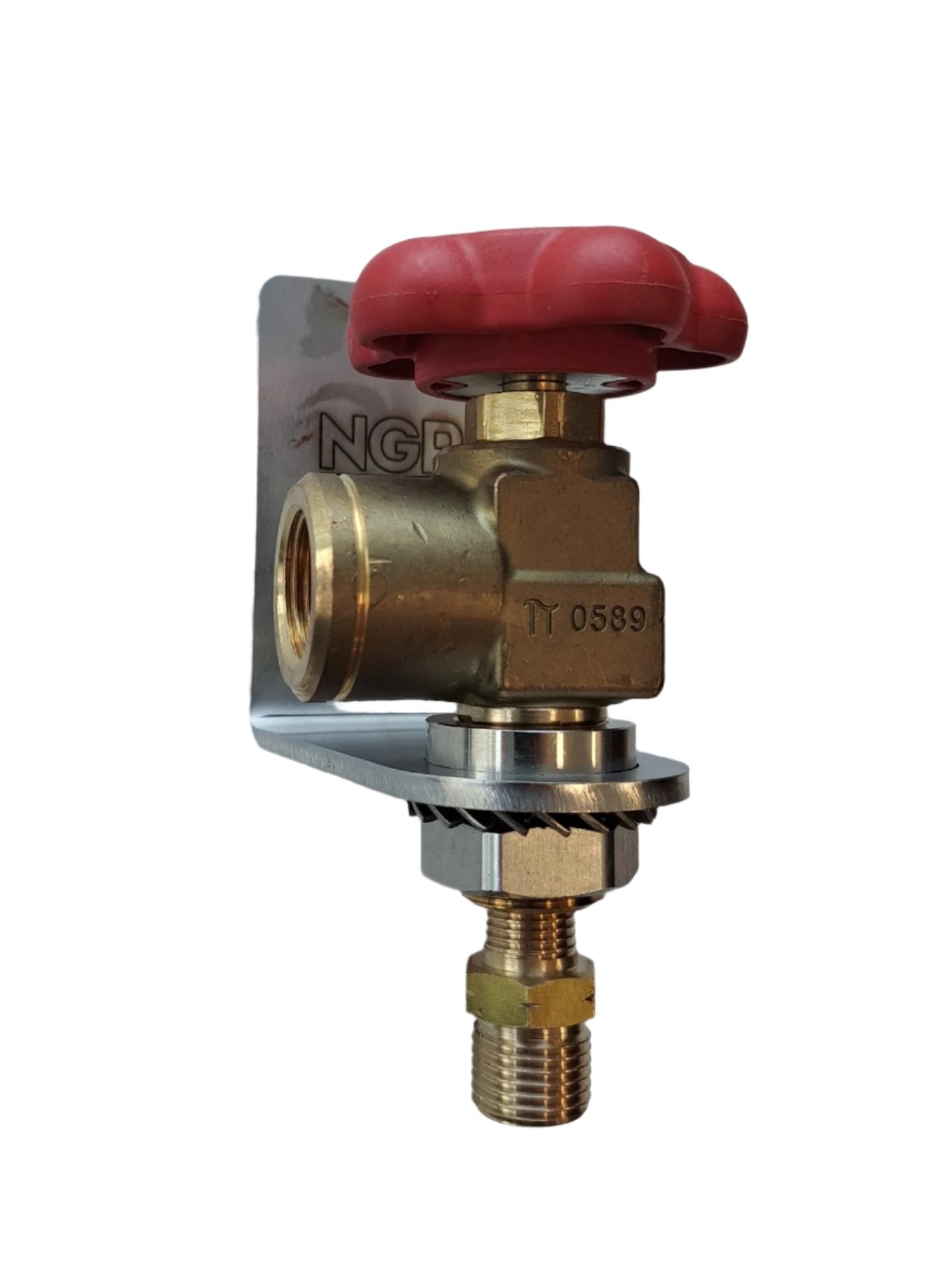

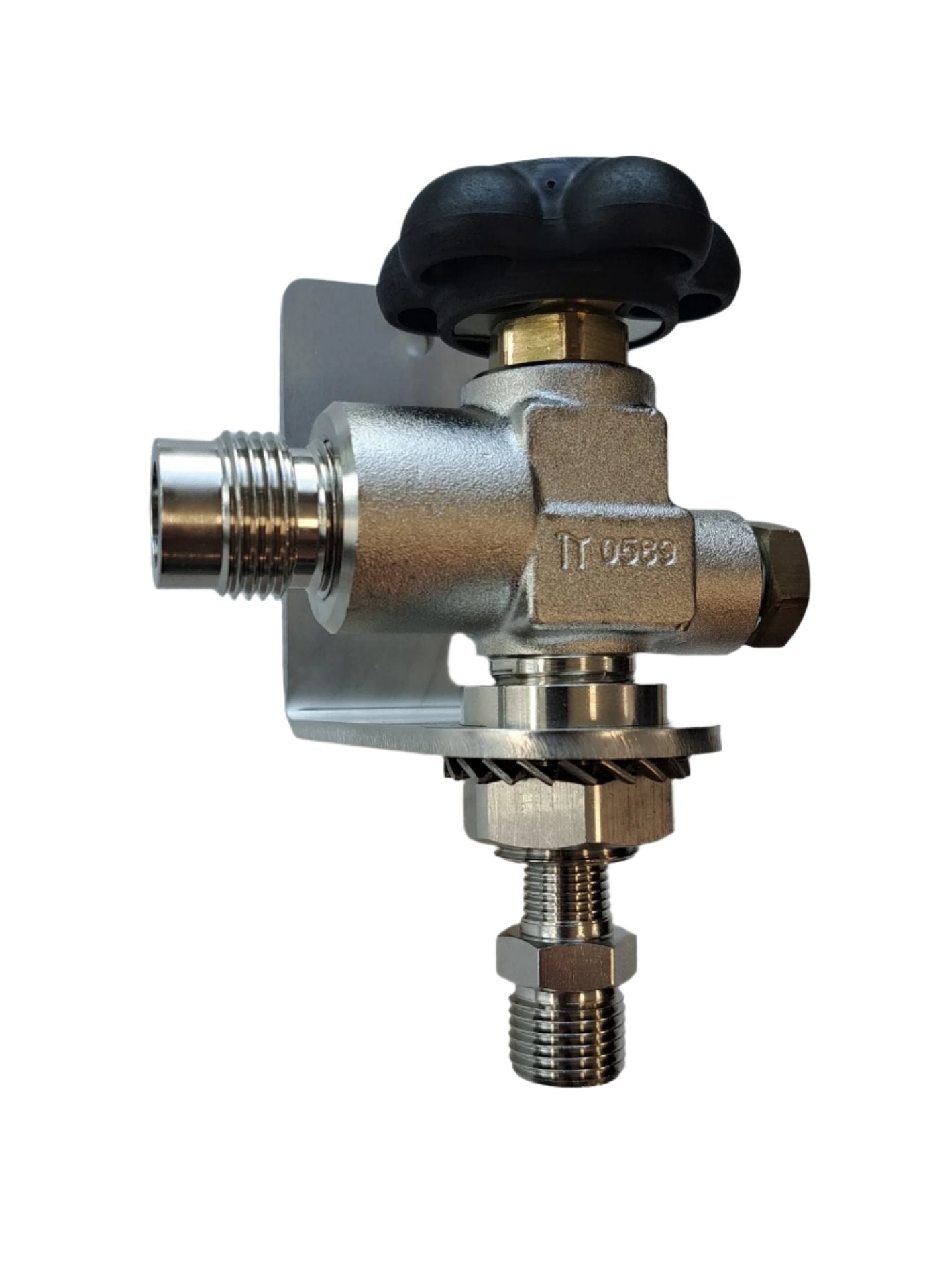

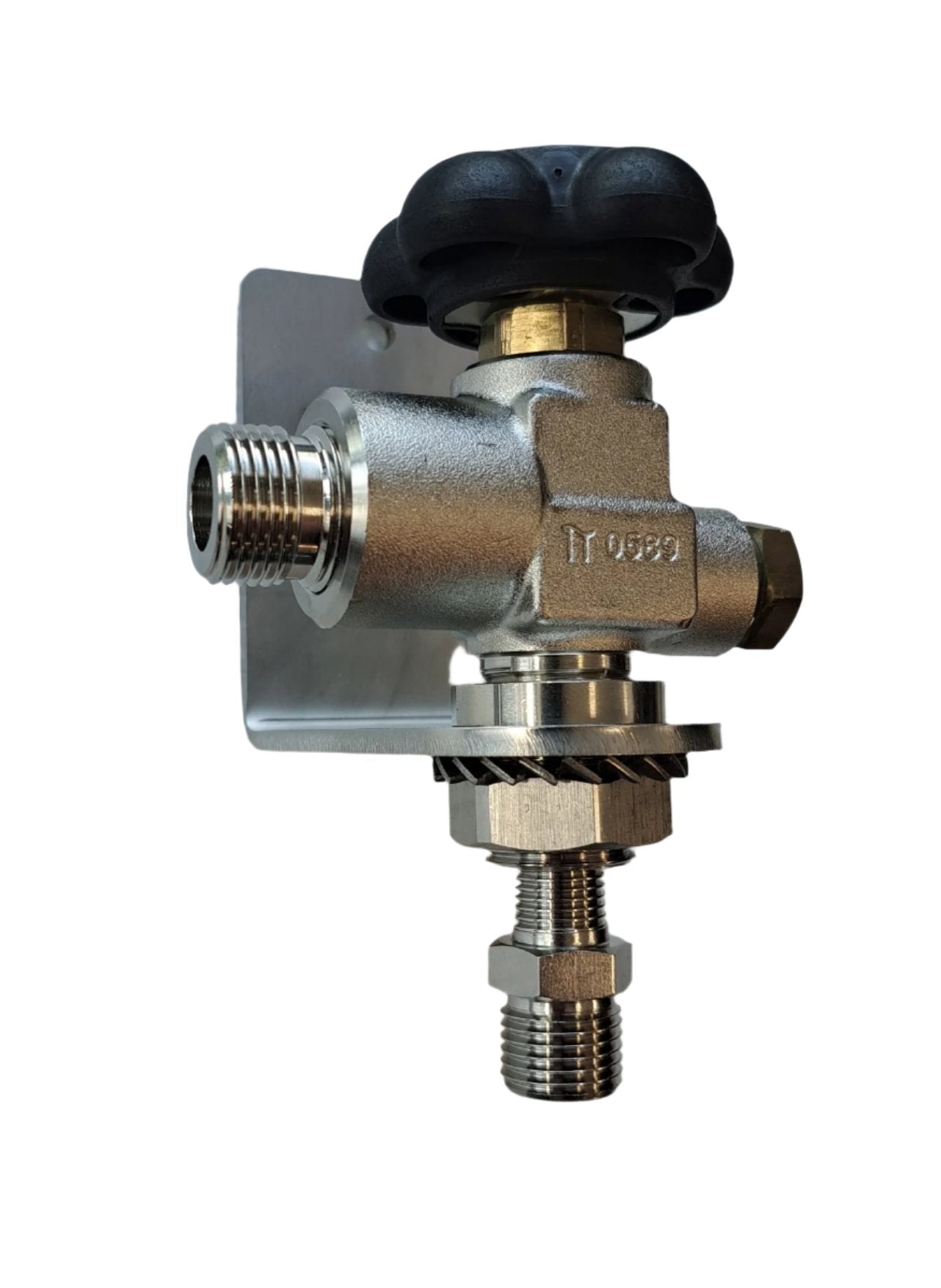

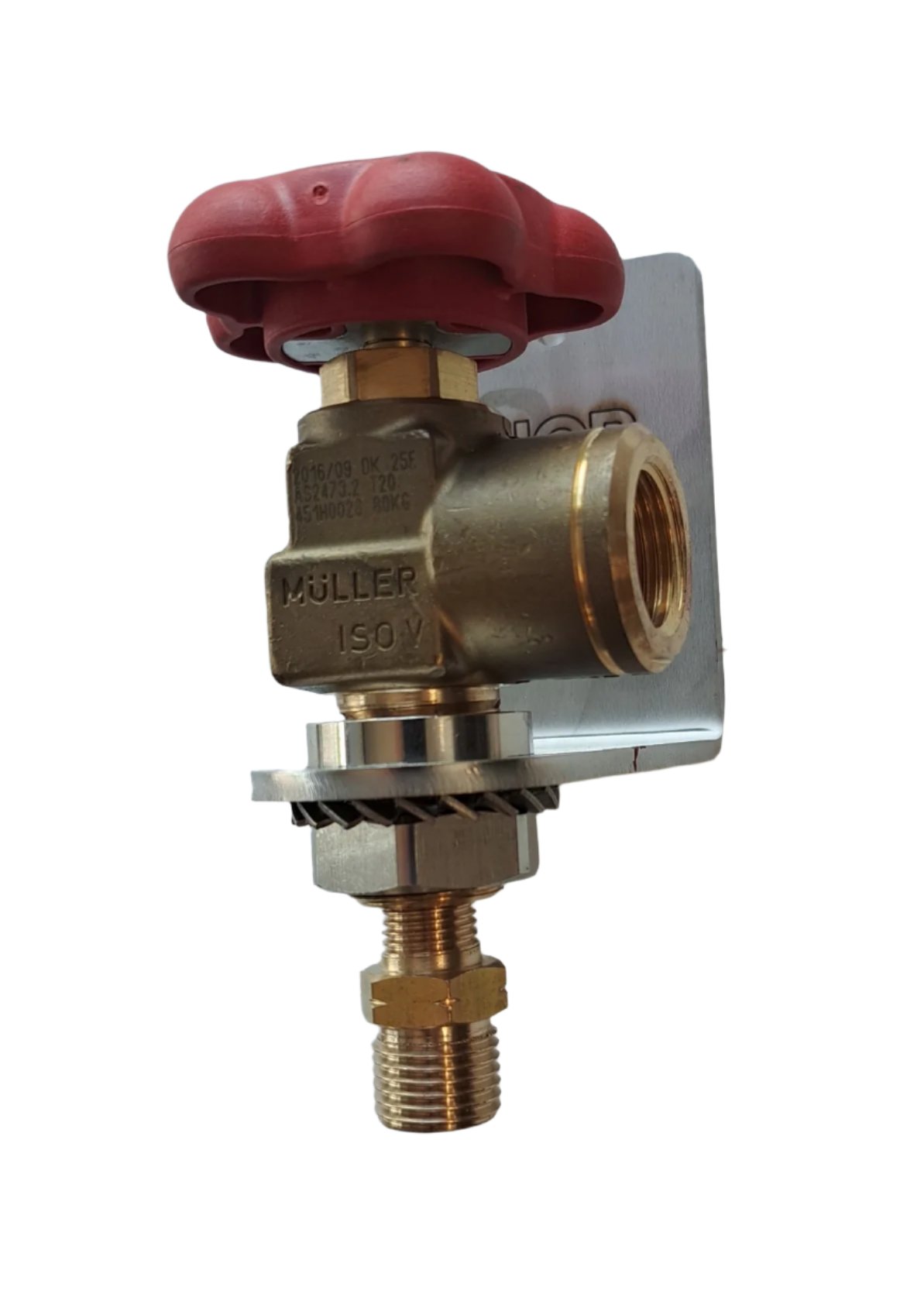

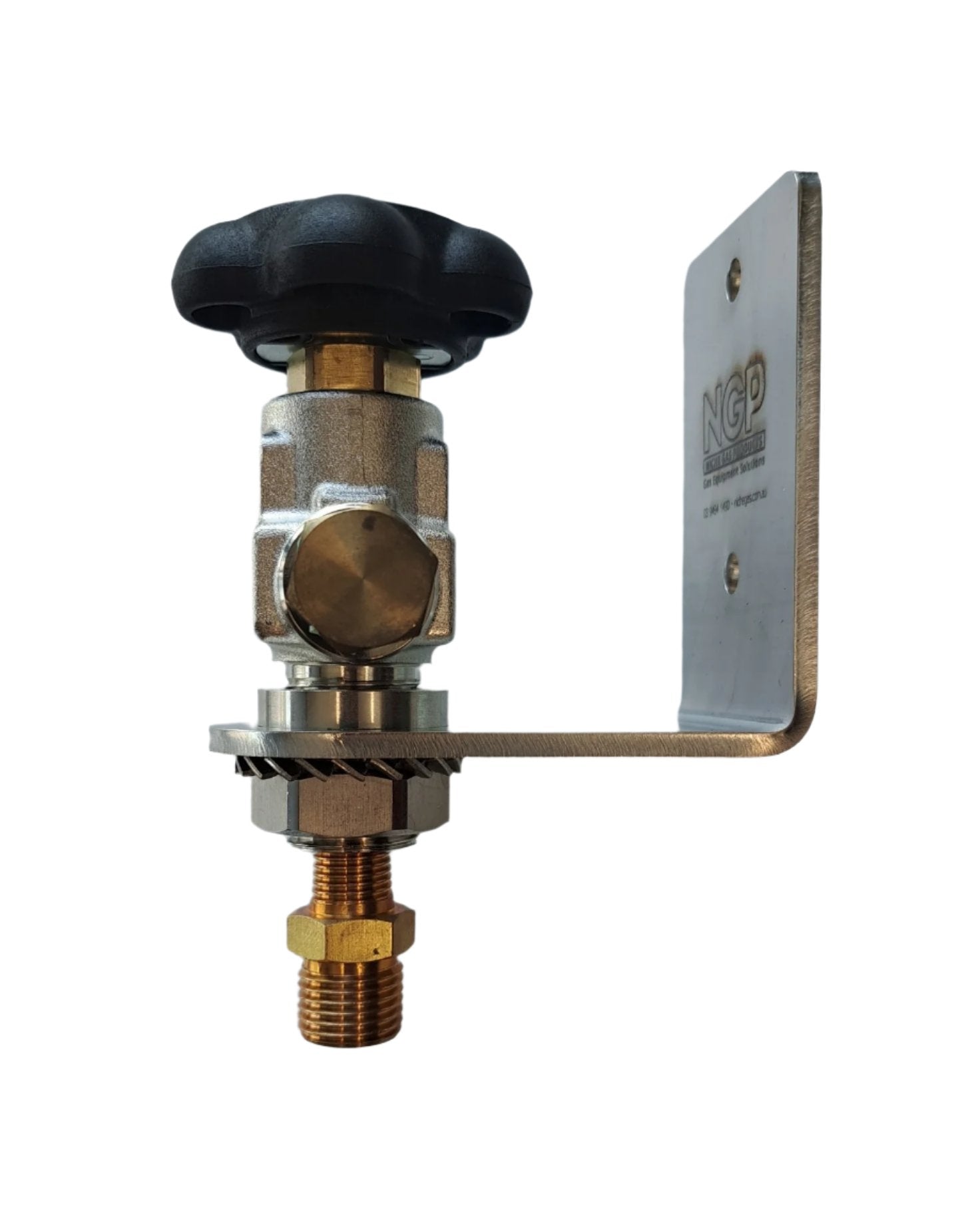

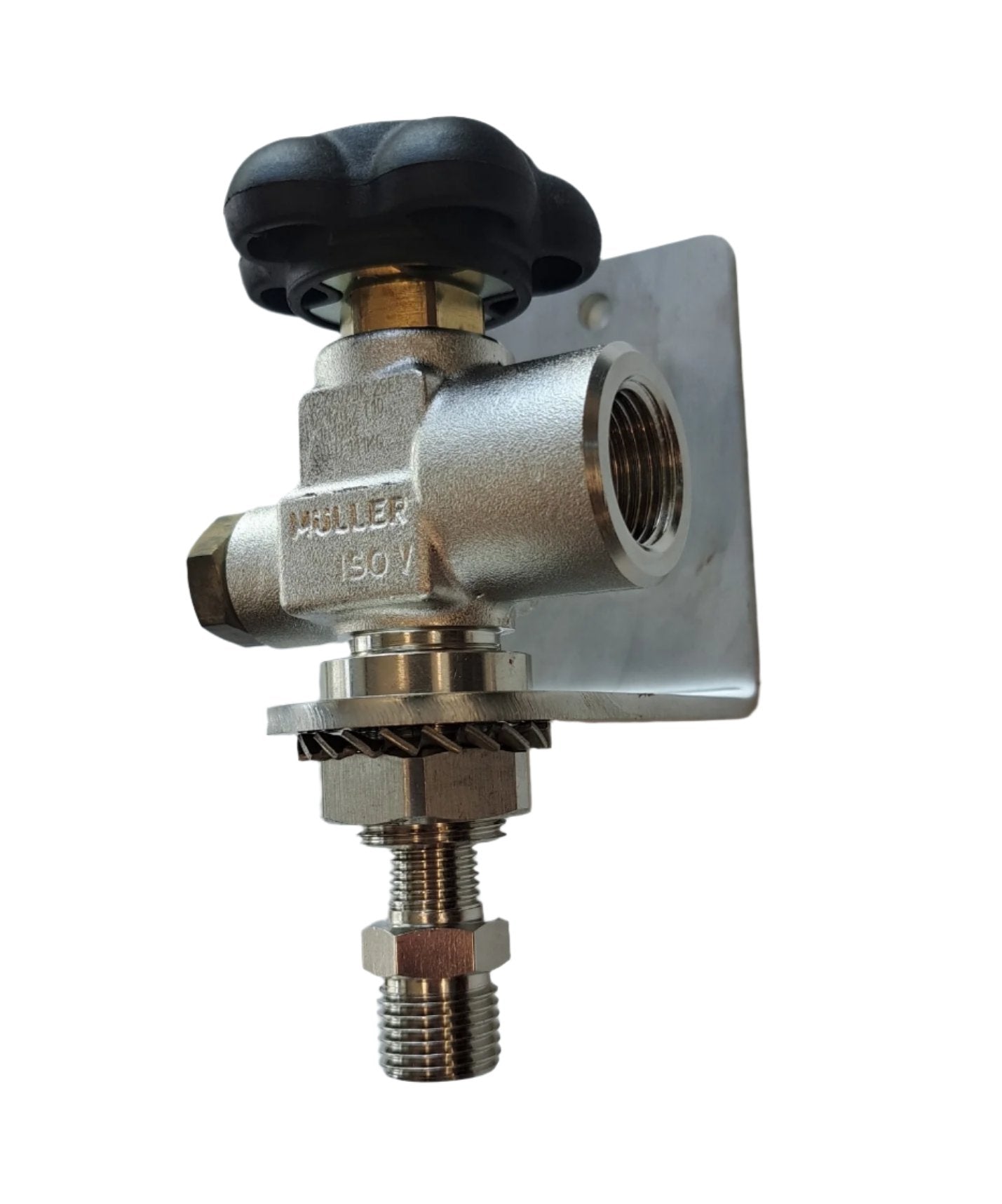

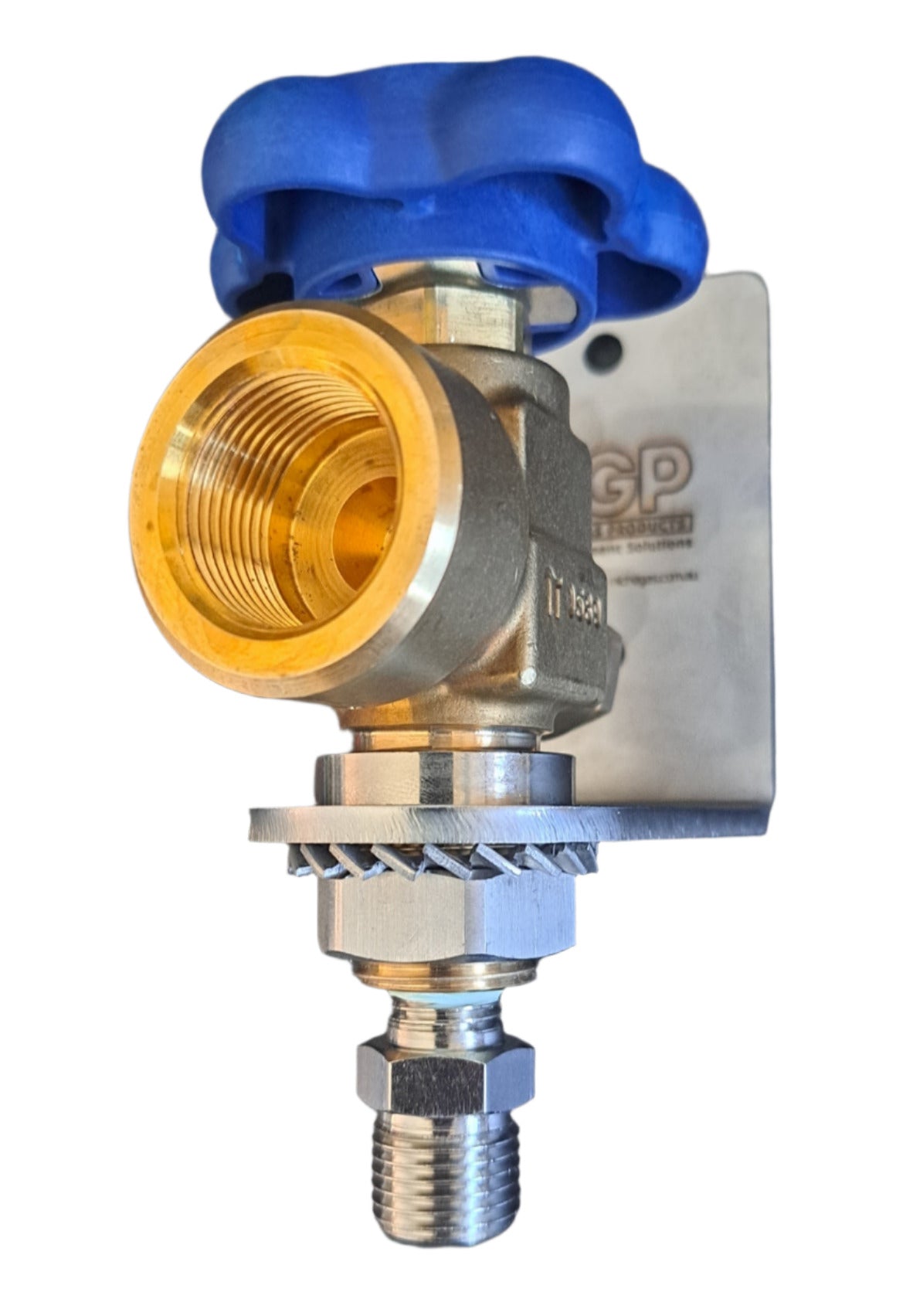

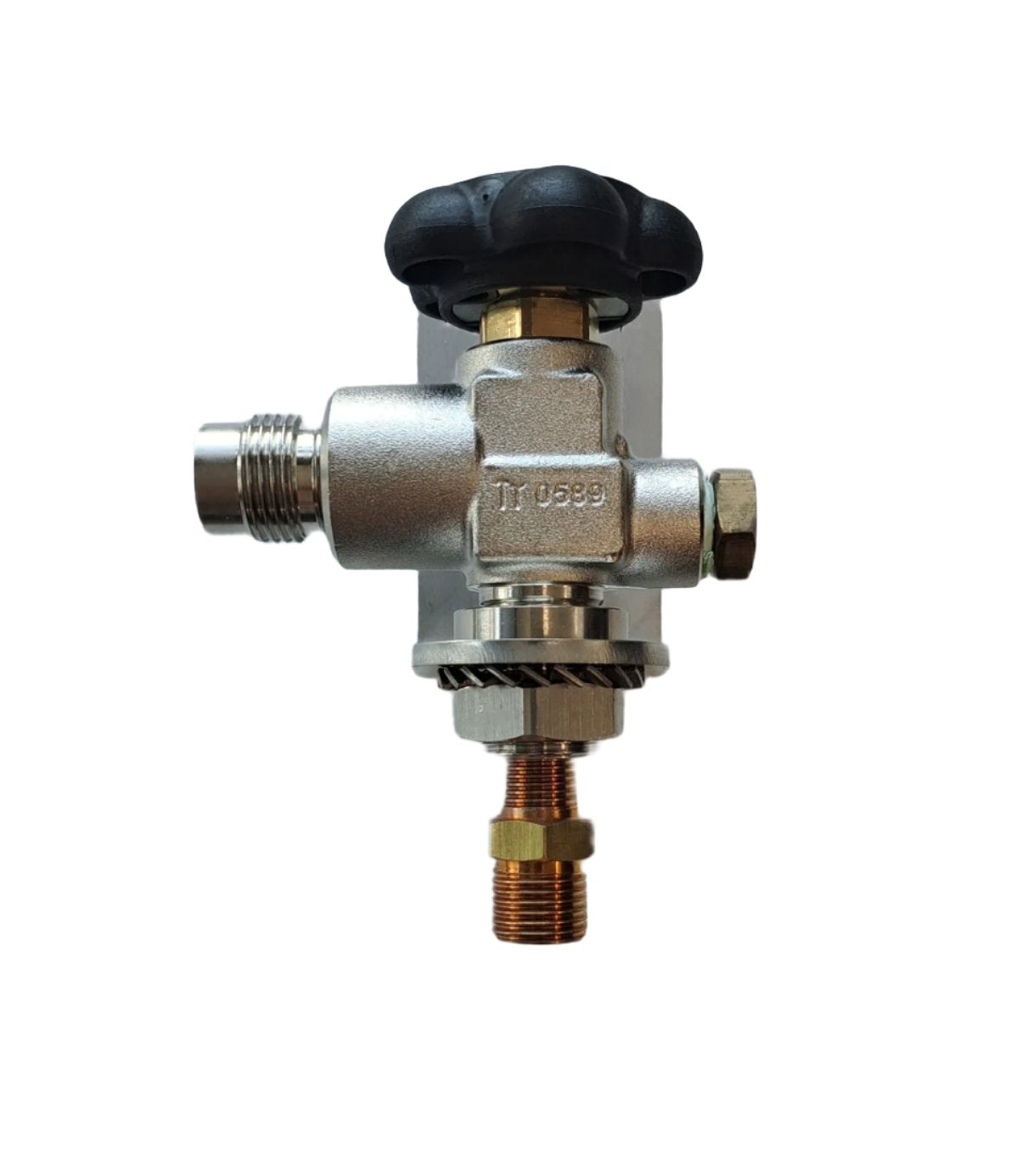

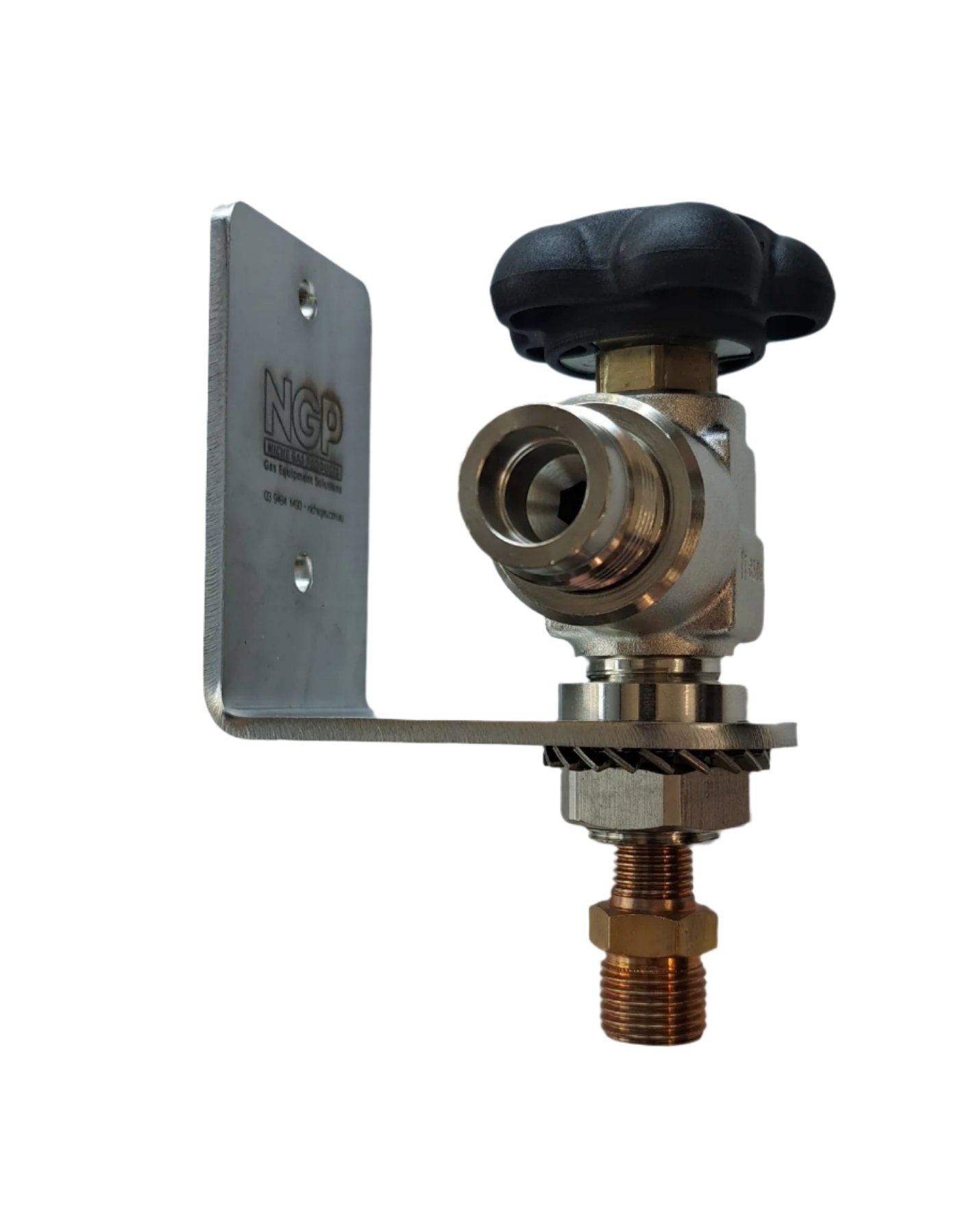

This is a new range of high pressure point valves. They are specifically designed for applications where a single gas cylinder (or pack) is to be used as the supply source for a pipeline system.

  • point valve allows the pipeline regulator to be “hard plumbed” to the pipeline

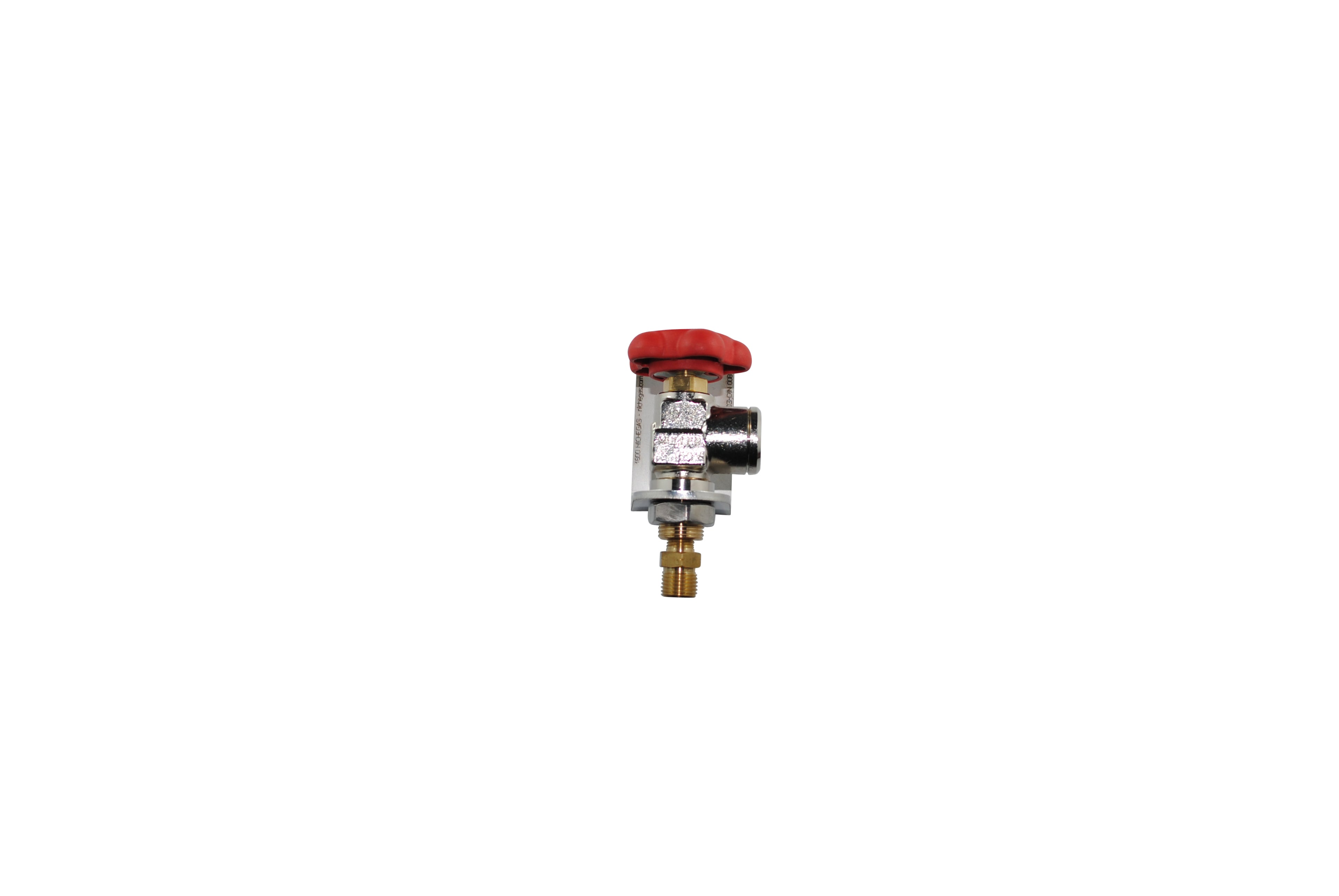

  • inlet connection either M18 RH for industrial non-fuel gases, or LH for industrial fuel gases. (3/8” BSP RH, 3/8” BSP LH also an option)
  • cylinder is connected to the point valve via an ARMA-flex or LifeGuard high pressure flexible hose (see High Pressure Gas Hose section)
  • point valves have gas specific outlet connections
  • inlet connections have non-return valves fitted to prevent accidental reverse flow
  • point valves are fitted with resin control knobs

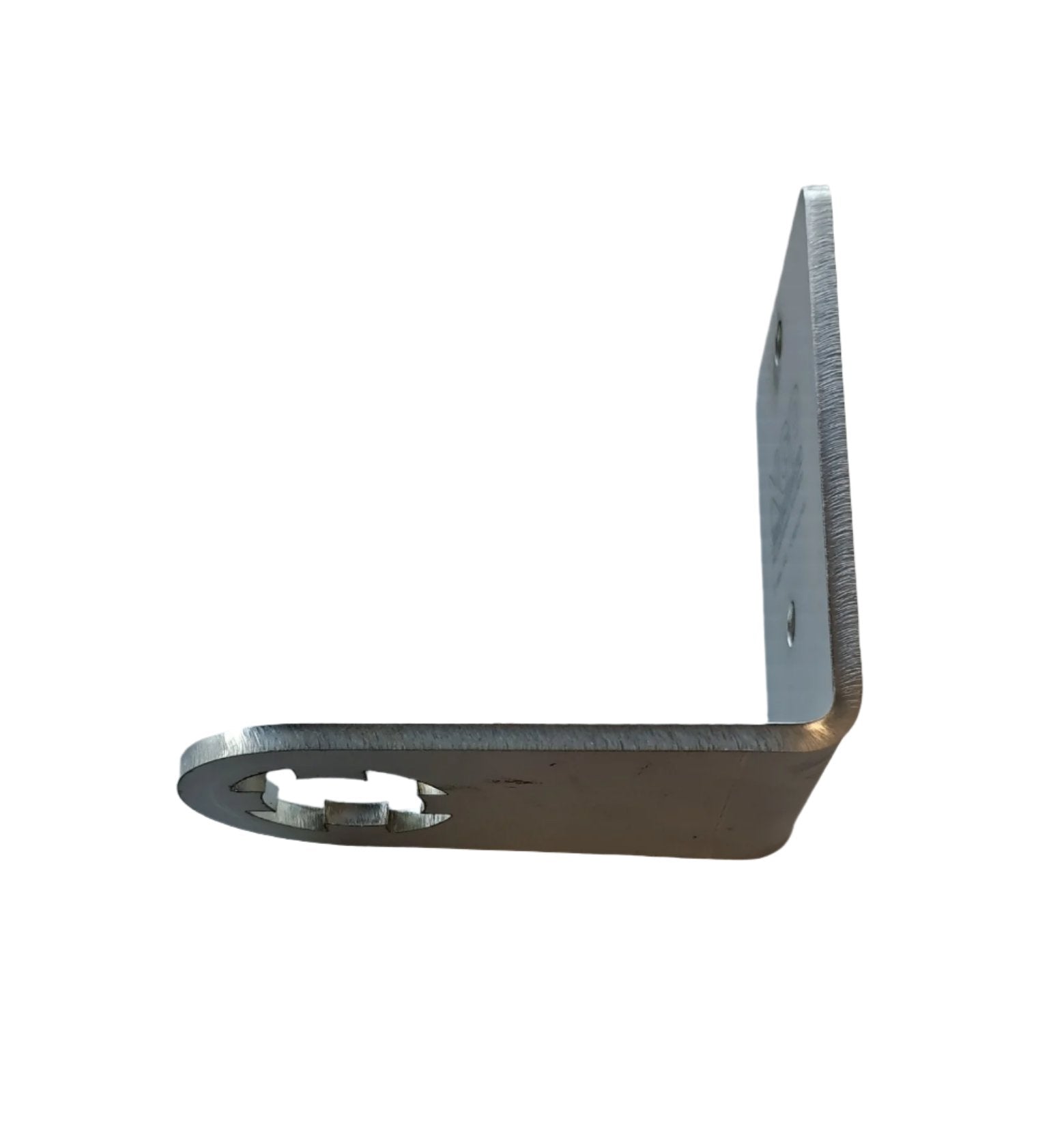

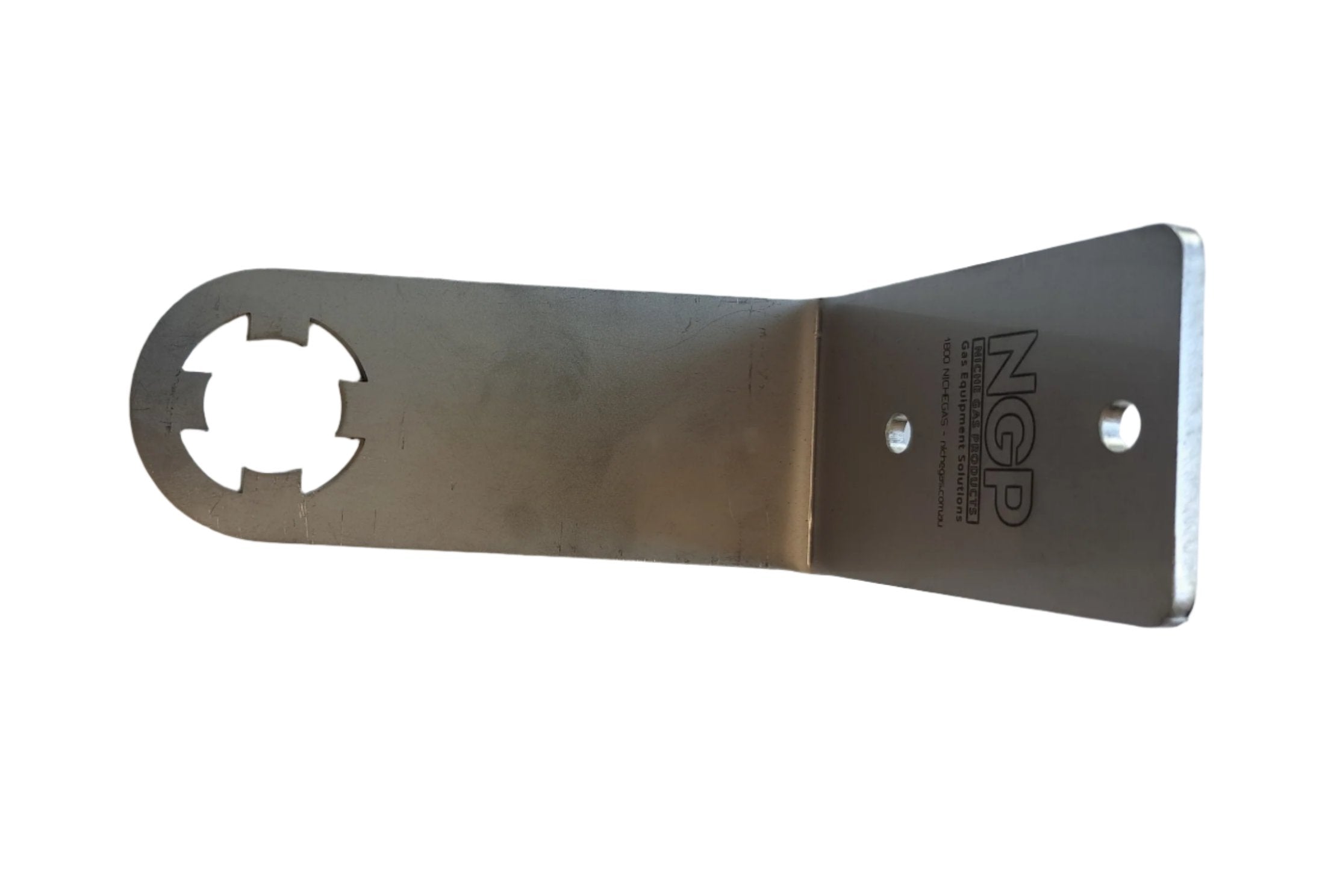

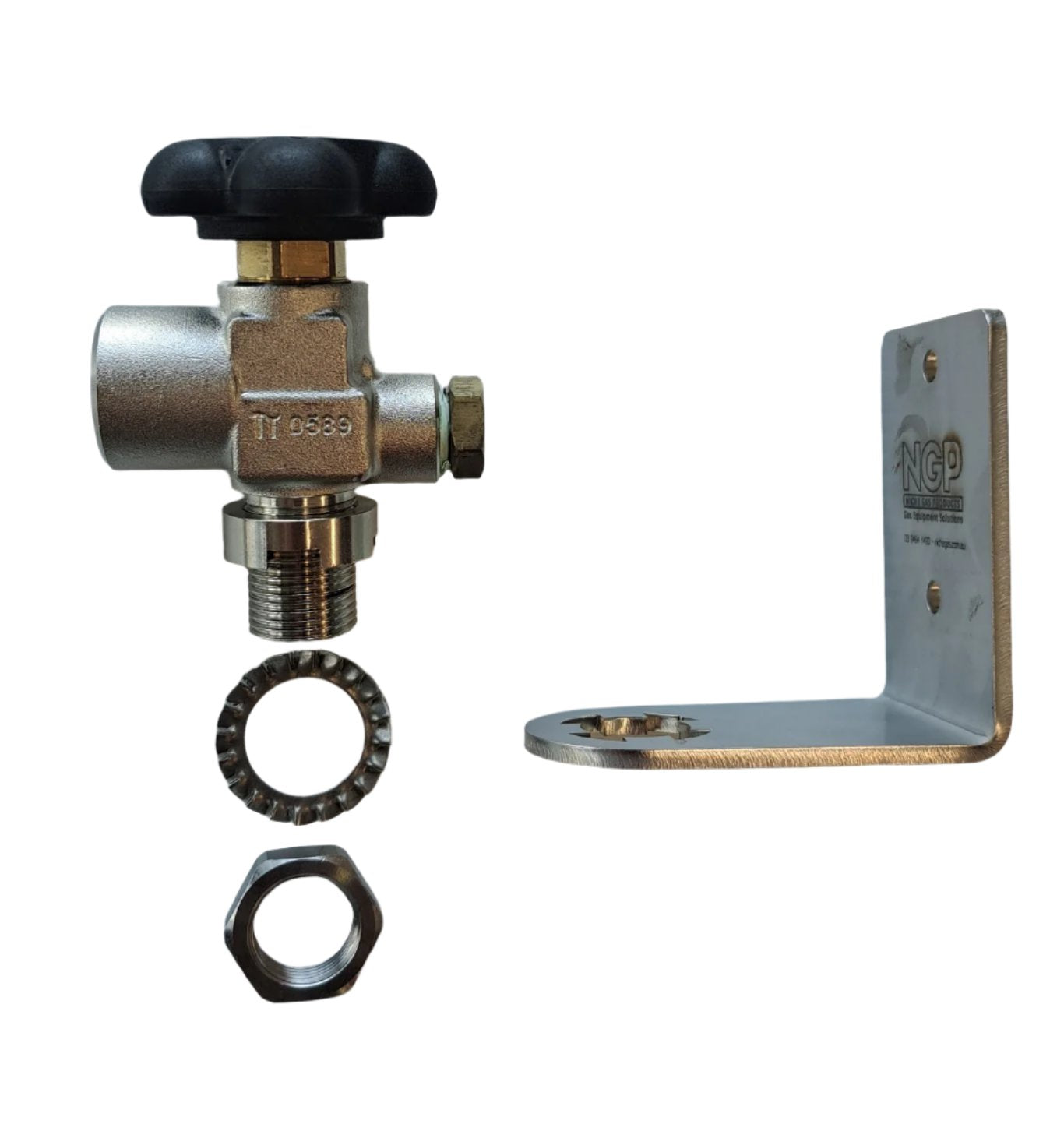

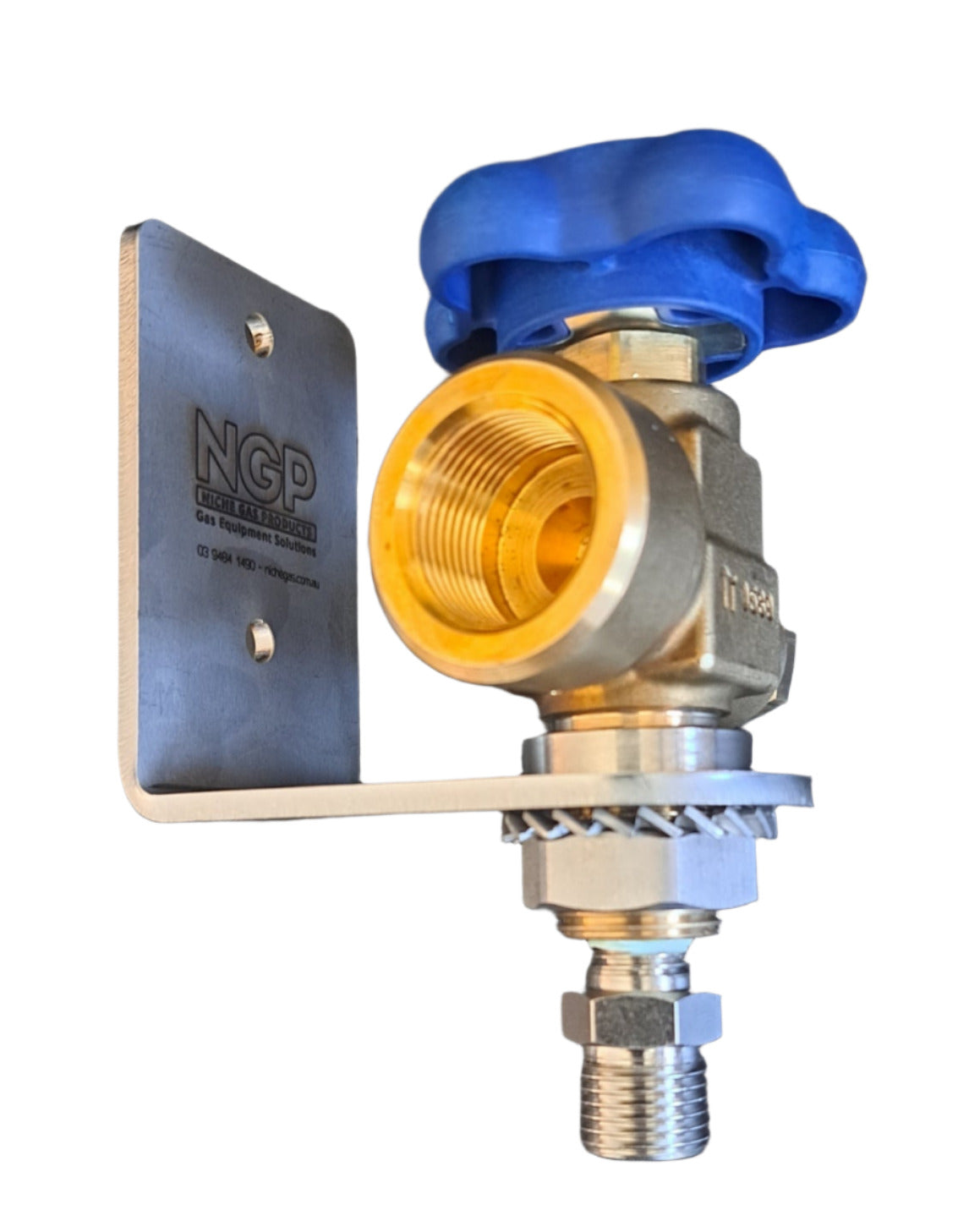

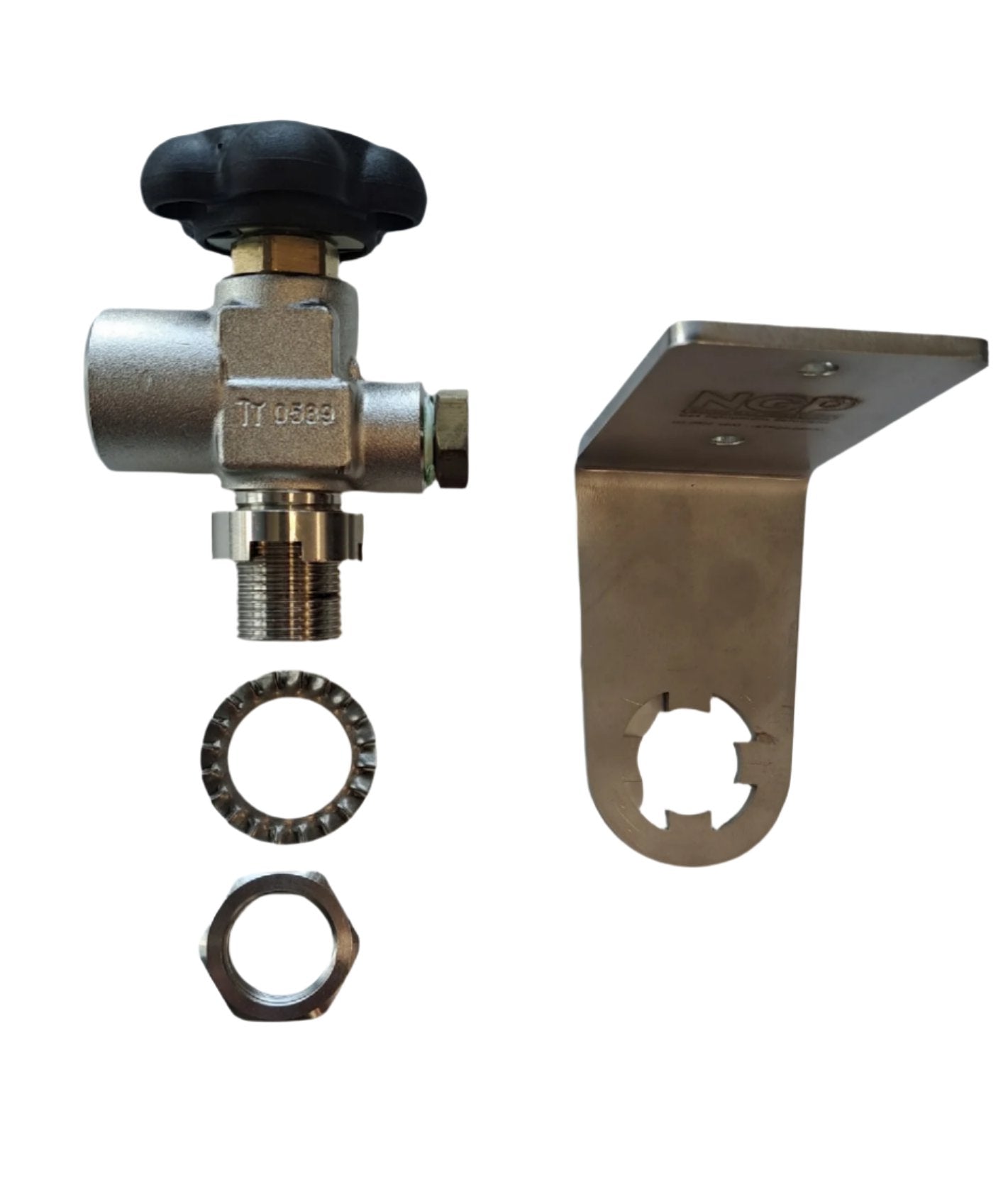

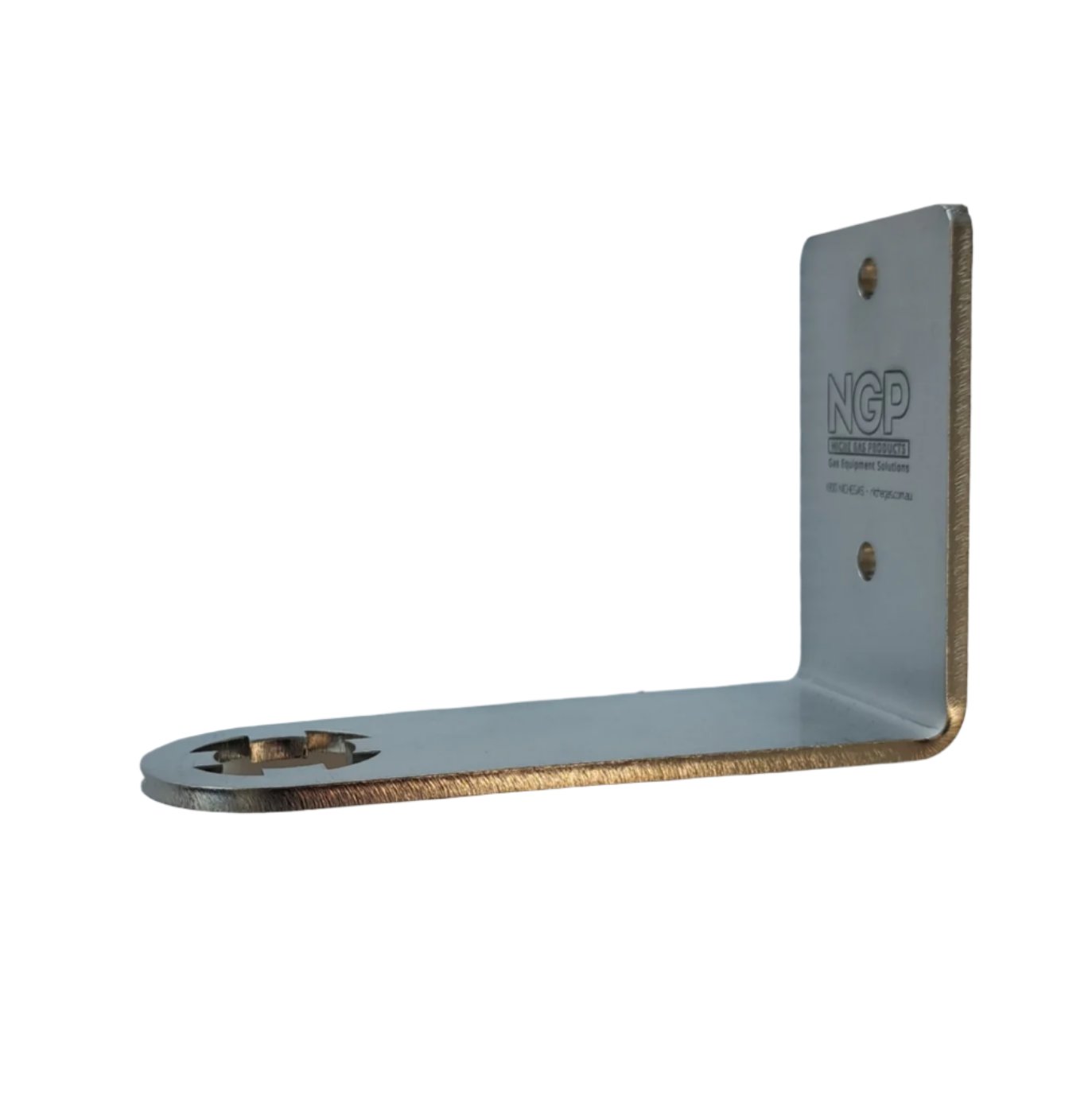

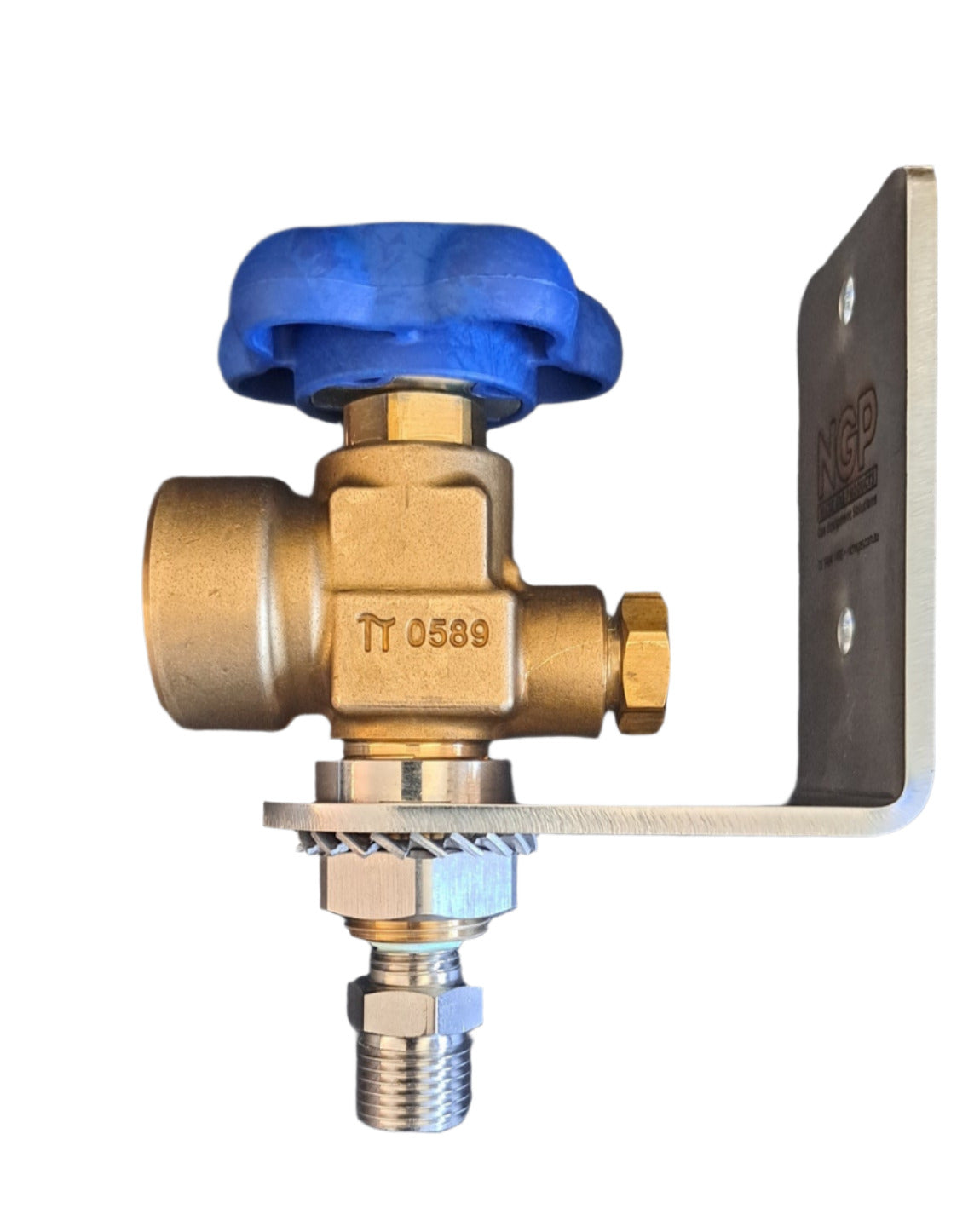

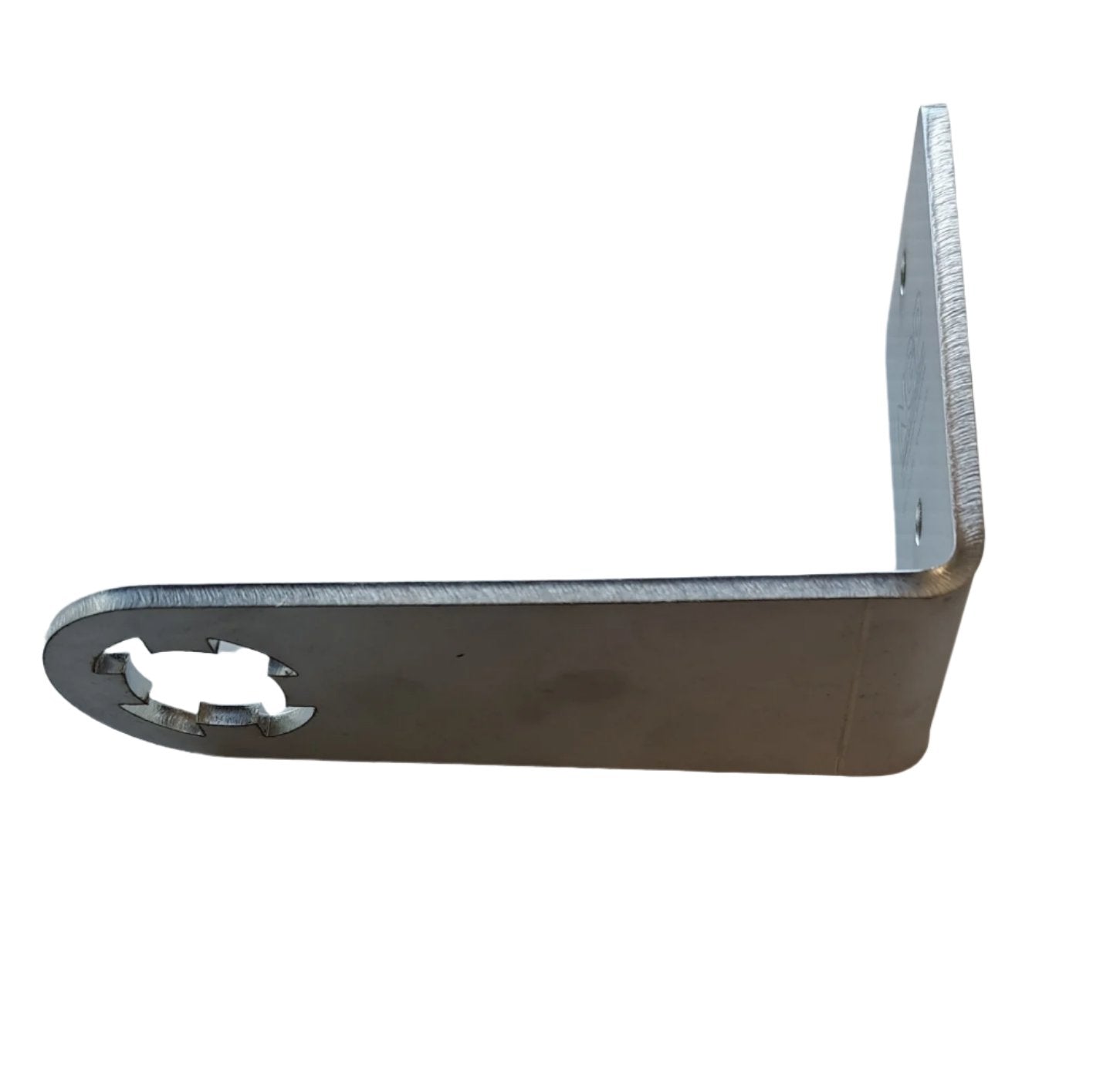

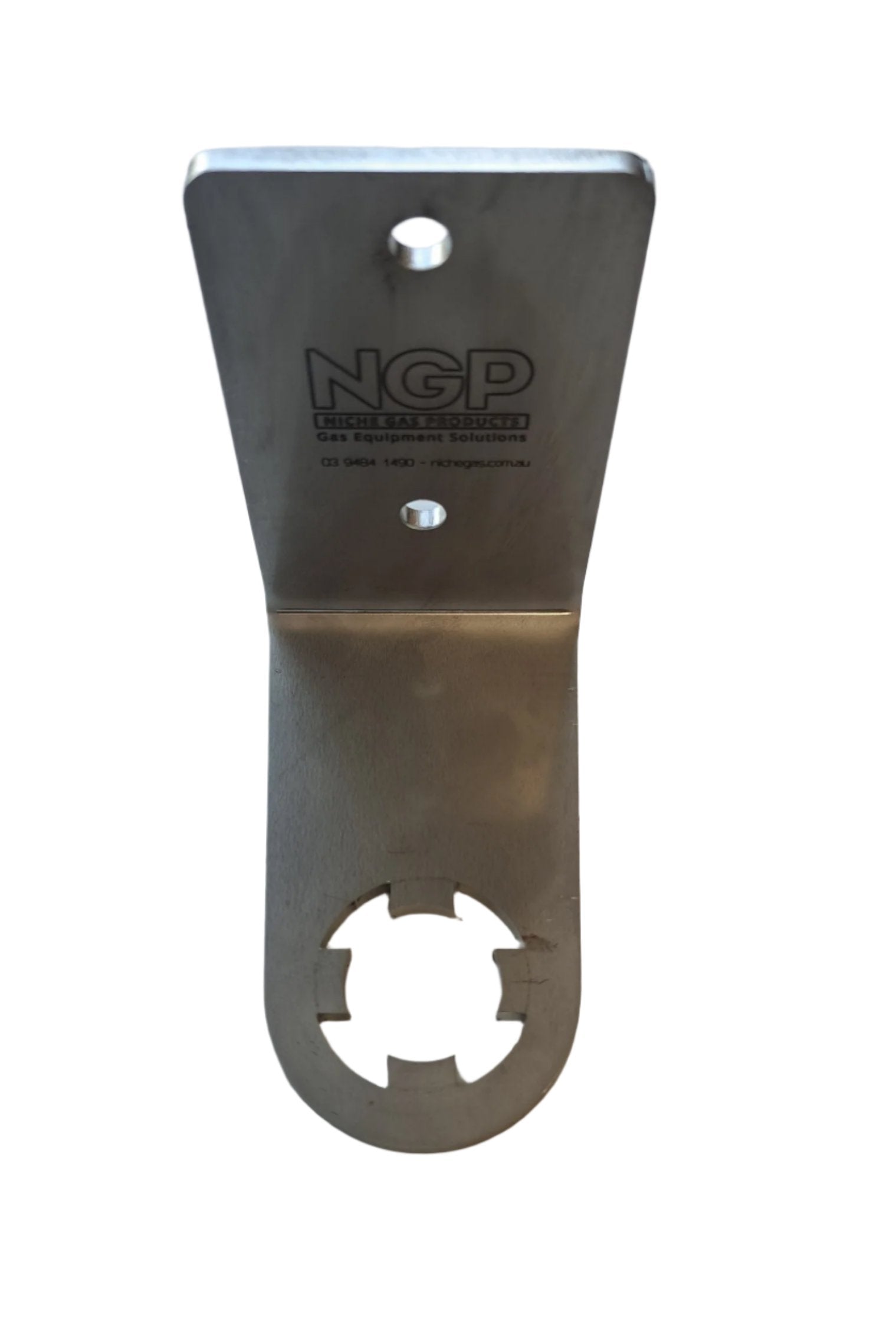

  • easily mounted to the wall via a rigid stainless steel mounting bracket that allows 3 positional selection.
  • point valve can be chrome plated and inlet purge valves can be fitted
  • other cylinder connections available on request
Download
Download
x

Download Pdf
