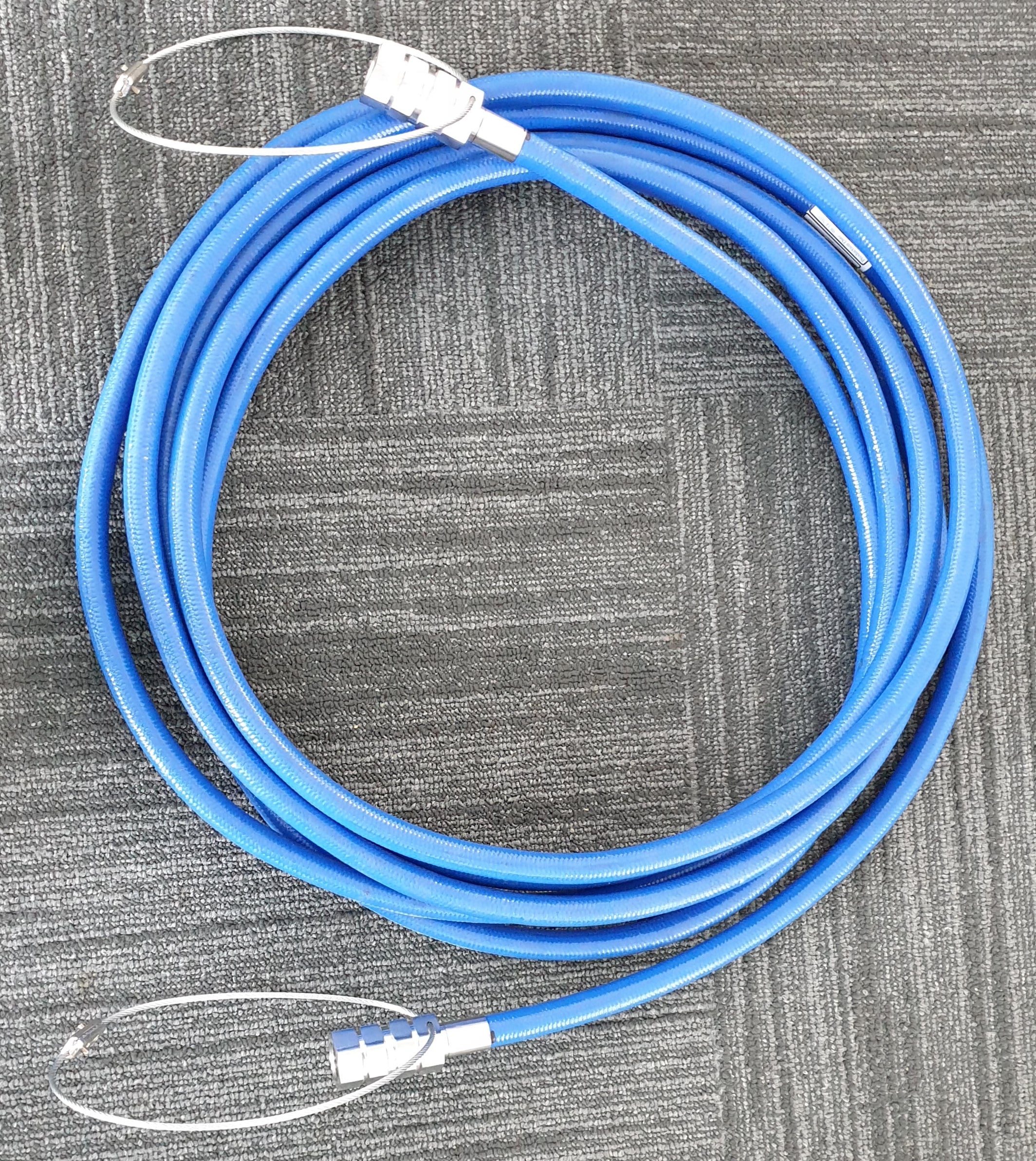

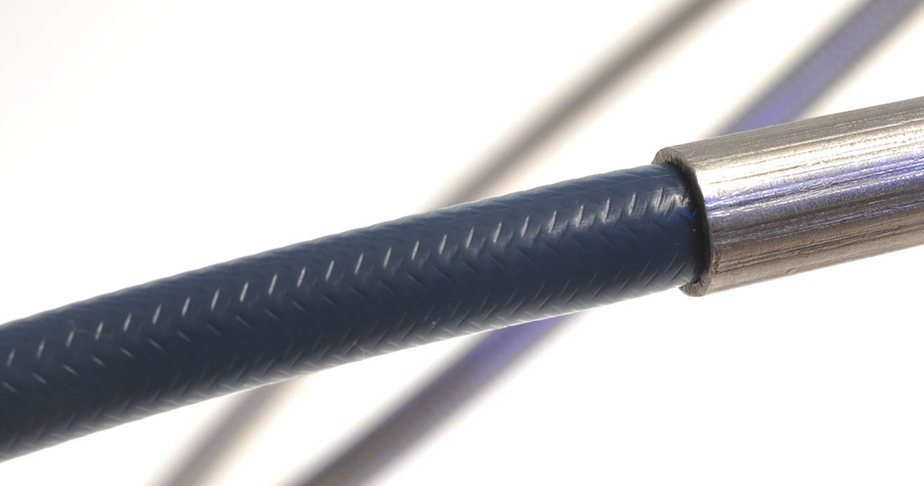

LifeGuard™ safety hose range constructed with ETFE Virgin/Anti-static liner, an outer Aramid fiber braid and a high tensile stainless steel 304 maypole wound, inner braid creating a maximum working pressure hose of 6000psi. Ultra high pressure smoothbore ETFE is the lightest weight ETFE hose on the market. Performing well above its weight due to its excellent routability, bend radius and reduced OD. Used for high pressure gas or fluid applications. The low effusion ETFE Fluoropolymer inner core is produced by the hot-melt Fluoropolymer manufacturing process, creating a seamless bond, makes it suitable to be used with corrosive gases (end fittings may need changing) and is especially suited for use with Ultra High Pressure Hydrogen where the hose's low permeation makes it far superior to PTFE.
Added to this is the security of the LifeGuard™ patented passive system that protects against the hazardous effects of hose rupture, pull-apart and failure. This eliminates the potential for disaster through the use of an internal cable connected to specially designed, normally unseated valves located on each end of the cable. In the event of hose separation, stretching to the point of an unsafe condition or coupling-to-hose separation, the valves are released and instantly seat, stopping the flow in both directions.
Maximum Working Pressure: 414Bar (6005psi)
Materials of construction:
Current available sizes:
Other sizes on request.
NGP have a wide array of both cylinder connections and other high pressure fittings available to add to these hoses. Call to discuss your specific needs.
