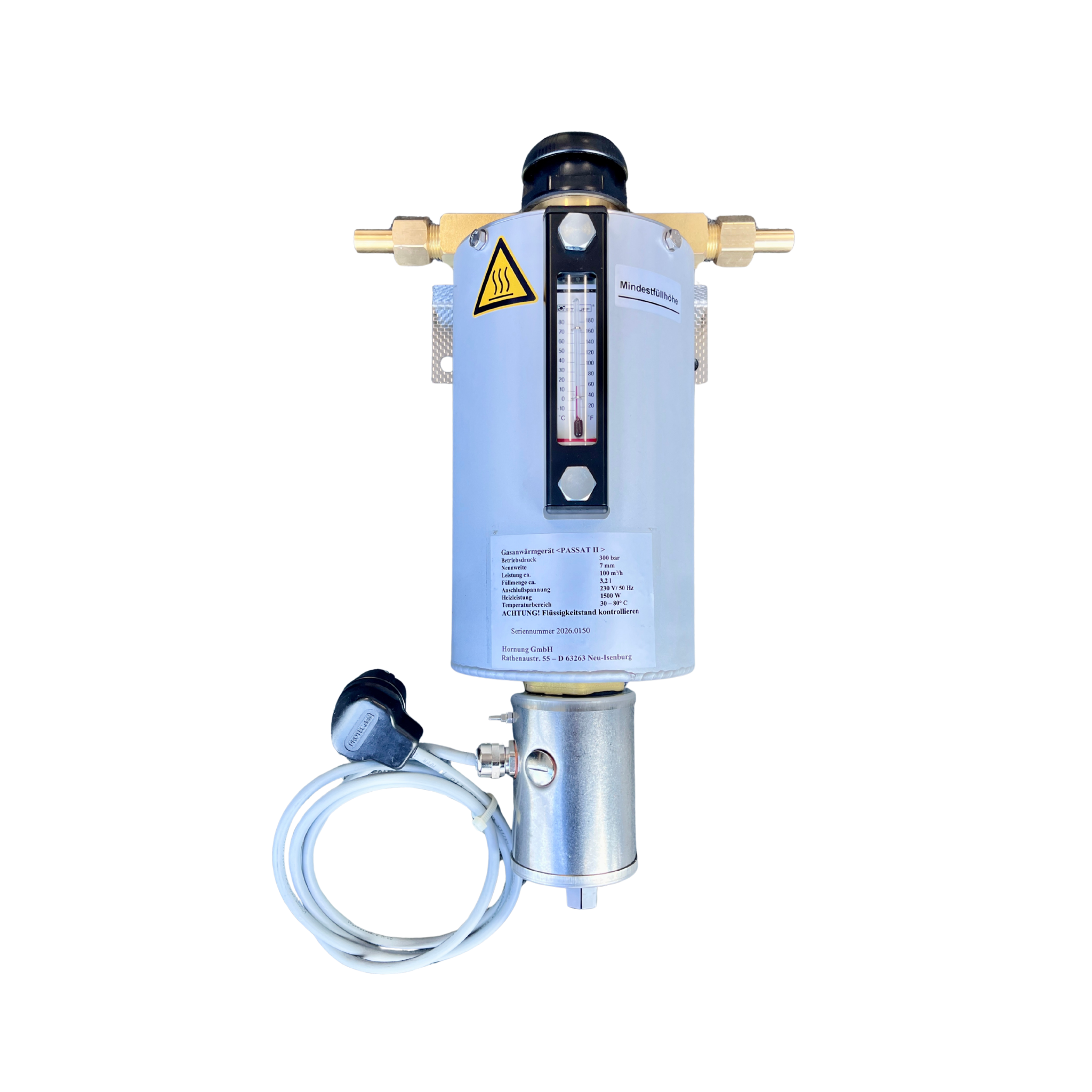

Pego Passat II 1500 watts. Gas heating to 420m³/hr
Description
xDo you have an extra high flow freezing problem? This is the solution for you.
Heating : For flows up to 420 m³/hr; 7000 ltrs/min
Gas preheaters are used as freeze protection for downstream pressure regulators on compressed gas cylinders or cylinder bundles. The Hornung PEGO Passat II gas preheater efficiently prevents icing of the downstream pressure regulator caused by flash cooling. The gas preheater is used on argon, carbon dioxide (CO2), nitrous oxide, oxygen or nitrogen systems. The use of the gas preheater reliably prevents undesired reductions in flow rate and the associated disruptions in the production process.
-
Serves for efficient heating of highly compressed, non-flammable and non-corrosive gases
-
Prevents icing of downstream fittings by heating the medium
-
Safe application in continuous operation due to the built-in temperature monitor which prevents overheating
-
Equipped with a power of 1. 5KW and ready for connection with 230V/50Hz plug
-
Utilises the effectiveness of antifreeze solution
The gas is indirectly heated in a pipe coil. The pipe coil is housed with the electric heating bundle in a liquid-filled container, which is protected by an aluminium cased pipe.
The pipe coil as a “pressure-maintaining piece of equipment” is designed and manufactured in accordance with the Pressure Equipment Directive DGRL 2014/68/EU.
