SV805-ES: G 1/2, G 1/4, G 3/4, G 3/8, 1/2" NPT, 1/4" NPT, 3/4" NPT, 3/8" NPT
Vendor:
Niche Gas Products
Availability:
Pre Order
Description

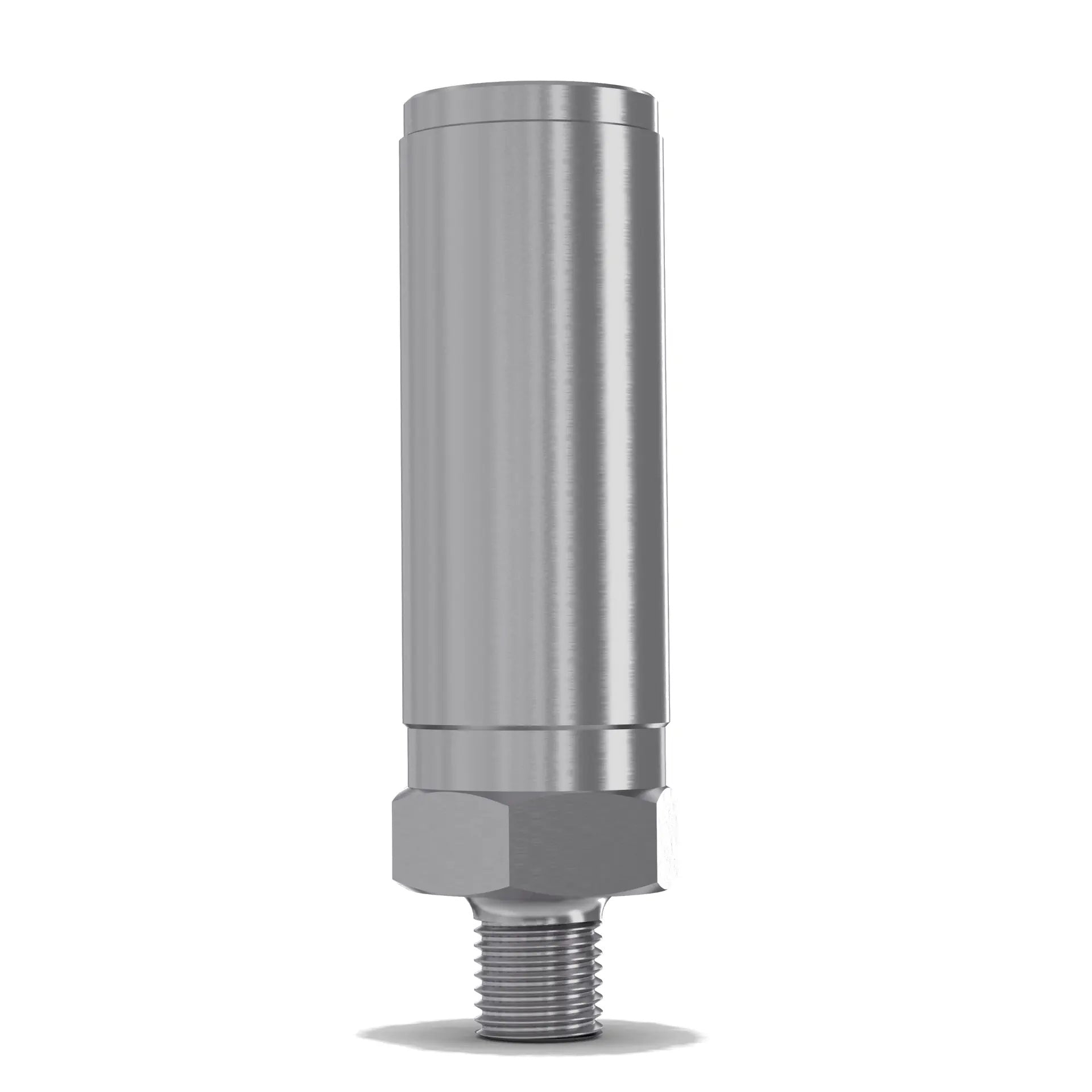

xSafety Relief Valve SV805-ES
Highlights:
- 100% DGRL compliance: meets the highest level of the Pressure Equipment Directive (2014/68/EU), Category IV, Module B and D
- TÜV-tested precision: preset, individual opening pressure with official TÜV certification
- Maximum robustness: available in either durable stainless steel or brass
- Media-optimised: selection of sealing material perfectly suited to the respective gas type or according to customer requirements
- Easy integration: small size and a selection of different inlet connections enable easy and space-saving installation.
- Blow-off line adapter: enables safe and easy connection of the blow-off line for controlled gas discharge.
| Blow-off flow rate: | See data sheet (download area) |
|---|---|
| Condensate drilling: | No |
| Manual ventilation: | No |
| Sealing material: | VMQ |
| Opening pressure: | 0.5-45 barg |
| Gas types: | All technical gases |
| Outlet connection: | M24 x 1 (female thread) |
| Housing material: | Stainless steel (1.4404) |
| Spring material: | Stainless steel (1.4305) |
| Temperature range: | -60°C to +150°C |
| Wrench size: | 27 mm |
| Weight: | 240 g |
