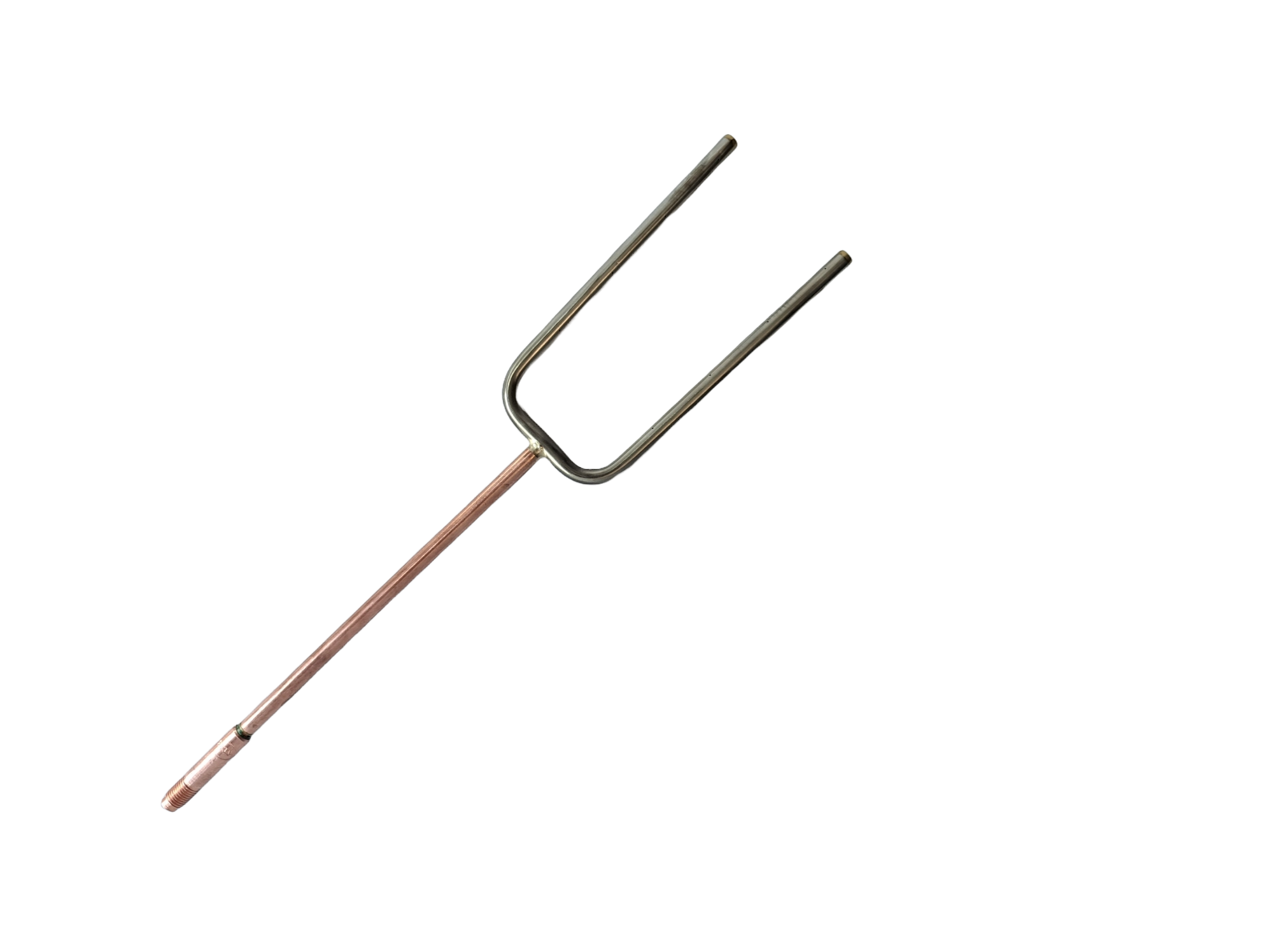

Tuning fork brazing tip. Oxy/Fuel, 8 flames. For Harris 196 torch

Uniweld’s Tuning Fork™ Brazing Tip – 8 Flame -For Harris 196 Torch (Type 192 Mixer)

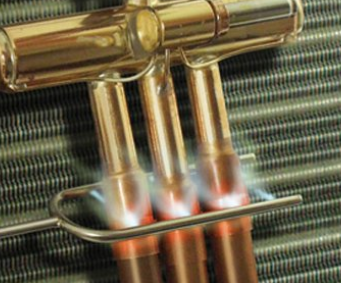

Uniweld’s Tuning Fork™ Tip enables simultaneous heating of all fittings on a heat pump reversing valve, allowing for efficient removal and installation without altering the original copper tube fittings. The multi-flame design delivers even heat distribution, making it suitable for confined and hard-to-reach areas.

Modified to fit any Harris 196 Contractor or comparable torch/blowpipe systems using a standard 192 welding mixer, (usually sold with the torch), the tip installs directly and operates using the recommended gas pressures below. Adaptations are available for other torch systems on request.

Specifications

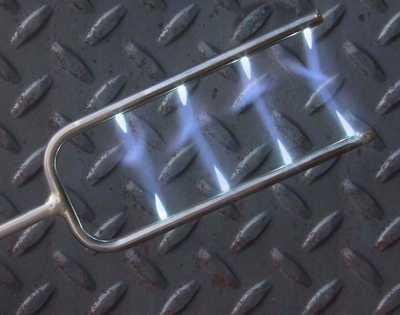

• Flame Type: 8 flame tuning fork
• Gas Type: Oxy/Fuel (Acetylene or LPG)
• Mixer Compatibility: Type 192 welding mixer

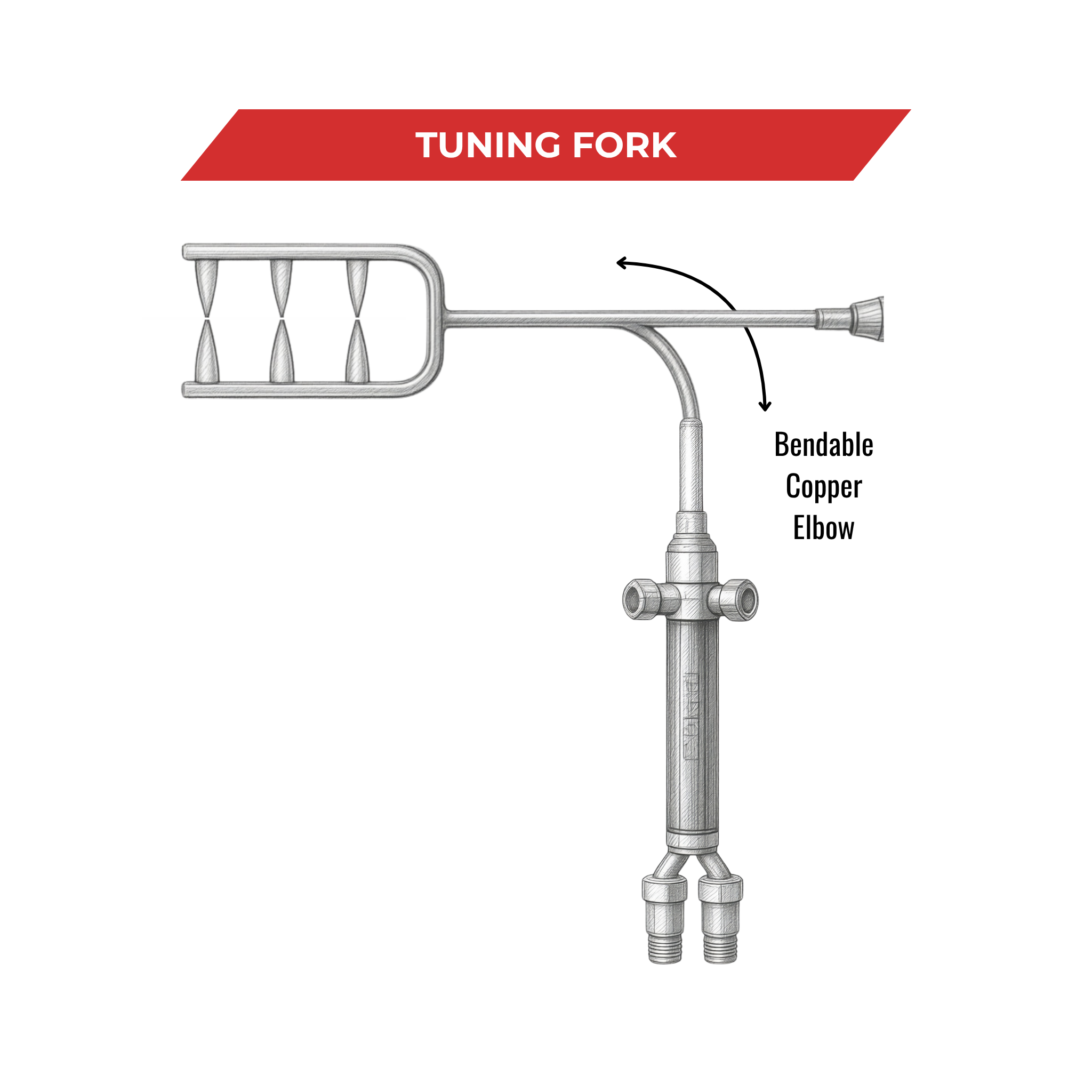

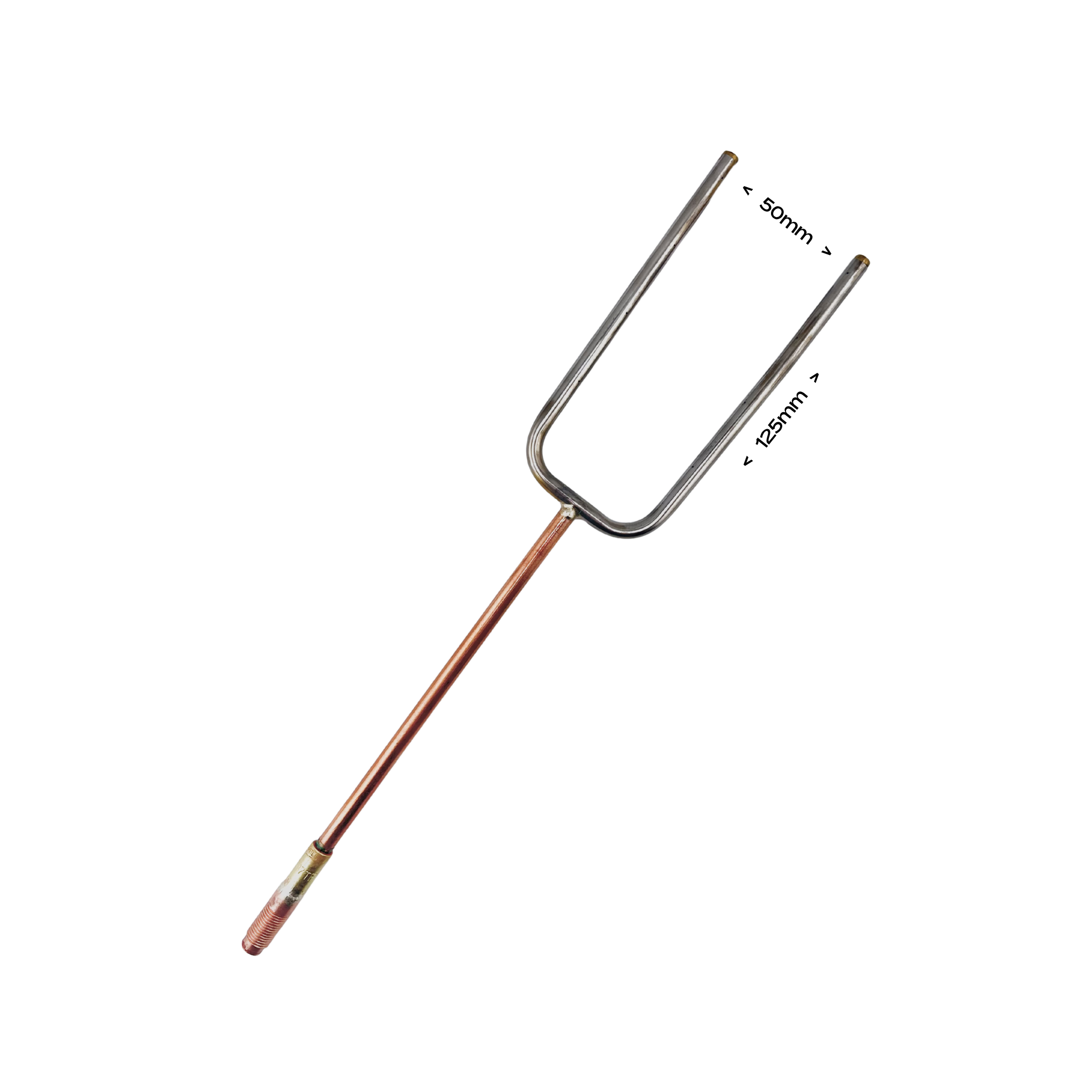

• Construction: Stainless steel U-section with bendable copper stem

Applications

• Heating multiple fittings simultaneously
• Removal and installation of heat pump reversing valves
• Use in confined or restricted access areas

Gas Pressure Settings

• Acetylene: 7 psi
• Oxygen: 10 psi
• LPG: 7 psi
• Oxygen: 10 psi
