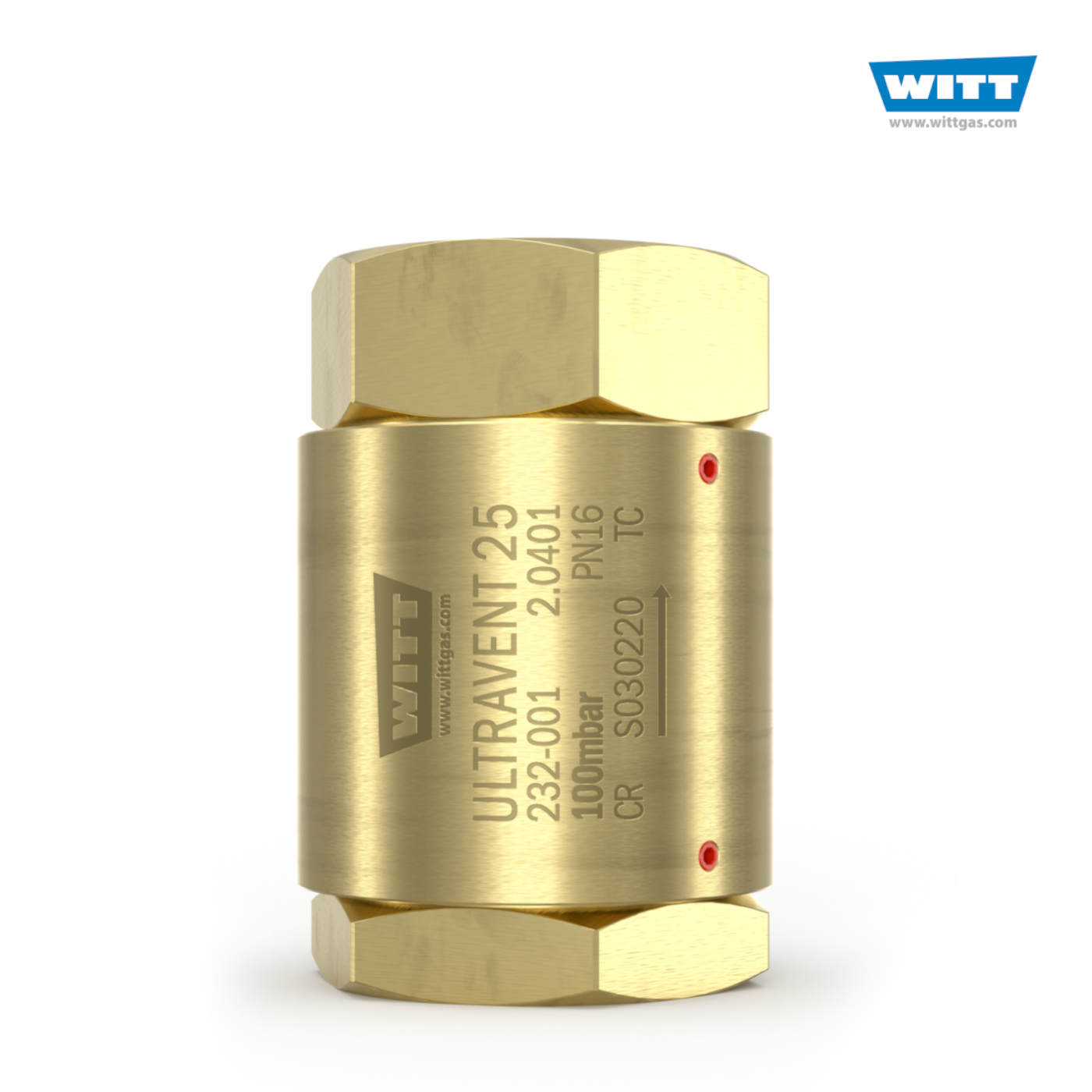

ULTRAVENT 25: G ¾, G 1, ¾″ NPT & 1″ NPT

Precise pressure control from 5 to 500 mbar

The ULTRAVENT 25 is a spring-loaded, direct-acting safety relief valve designed to vent excess gas pressure from receivers, pipelines and other equipment. Its compact, flow-optimised design provides precise opening and closing behaviour while protecting sensitive systems and processes.

Every valve is 100% factory-tested, with reliability demonstrated over more than 100,000 operating cycles.

Benefits

• Closes tightly again after activation
• Individually adjustable opening pressure from 5 to 500 mbar
• Compact design
• High blow-off volume flow
• Reliability tested over 100,000 cycles
• Available with G ¾, G 1, ¾″ NPT or 1″ NPT female threads
• Pressure rating PN16
• Free from oil and grease
• Suitable for pressure-control and pressure-maintaining applications
• Can also be used as a vacuum breaker
• TÜV-certified configurations available

Options

• Pressure-maintaining configuration with a 100 μm stainless-steel inlet filter

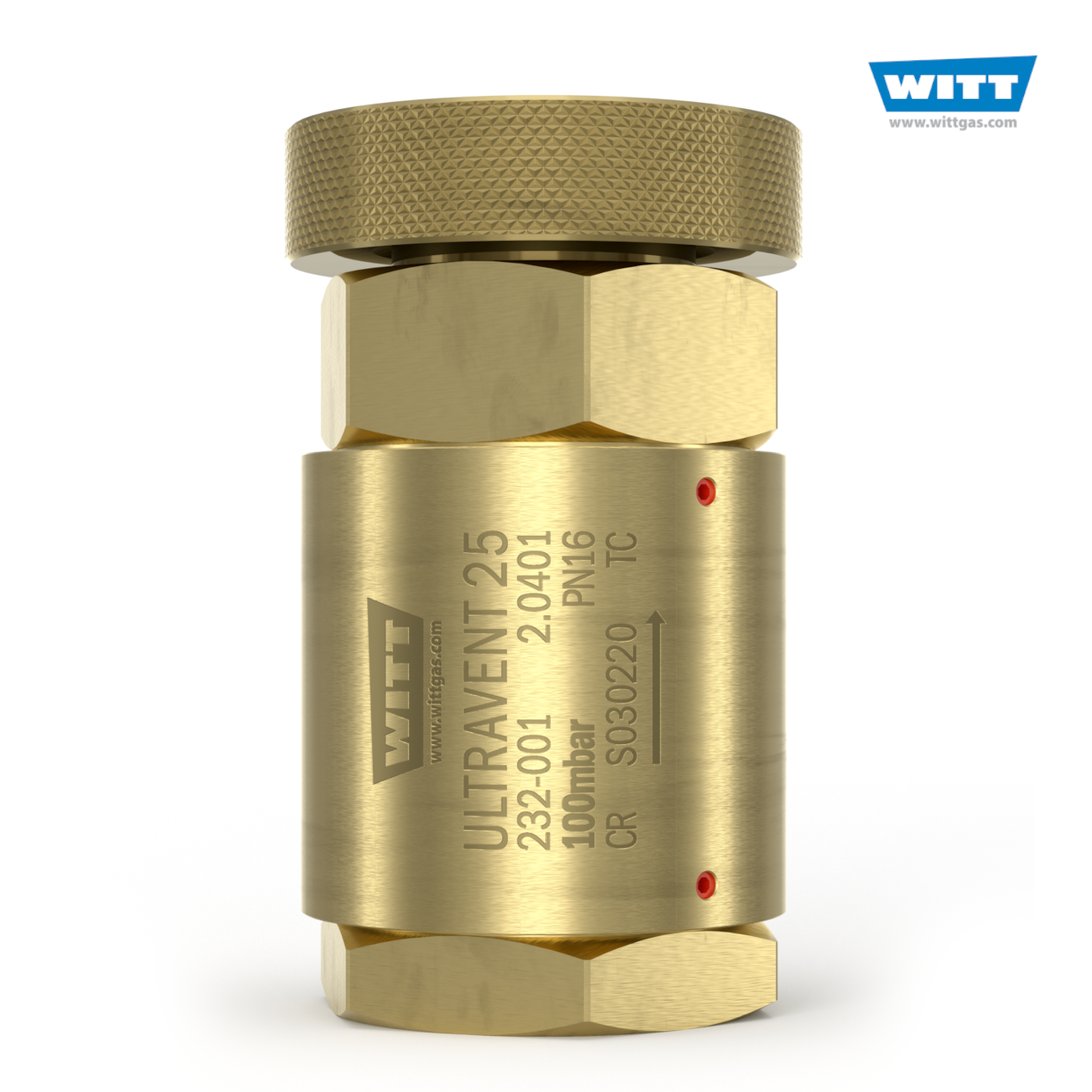

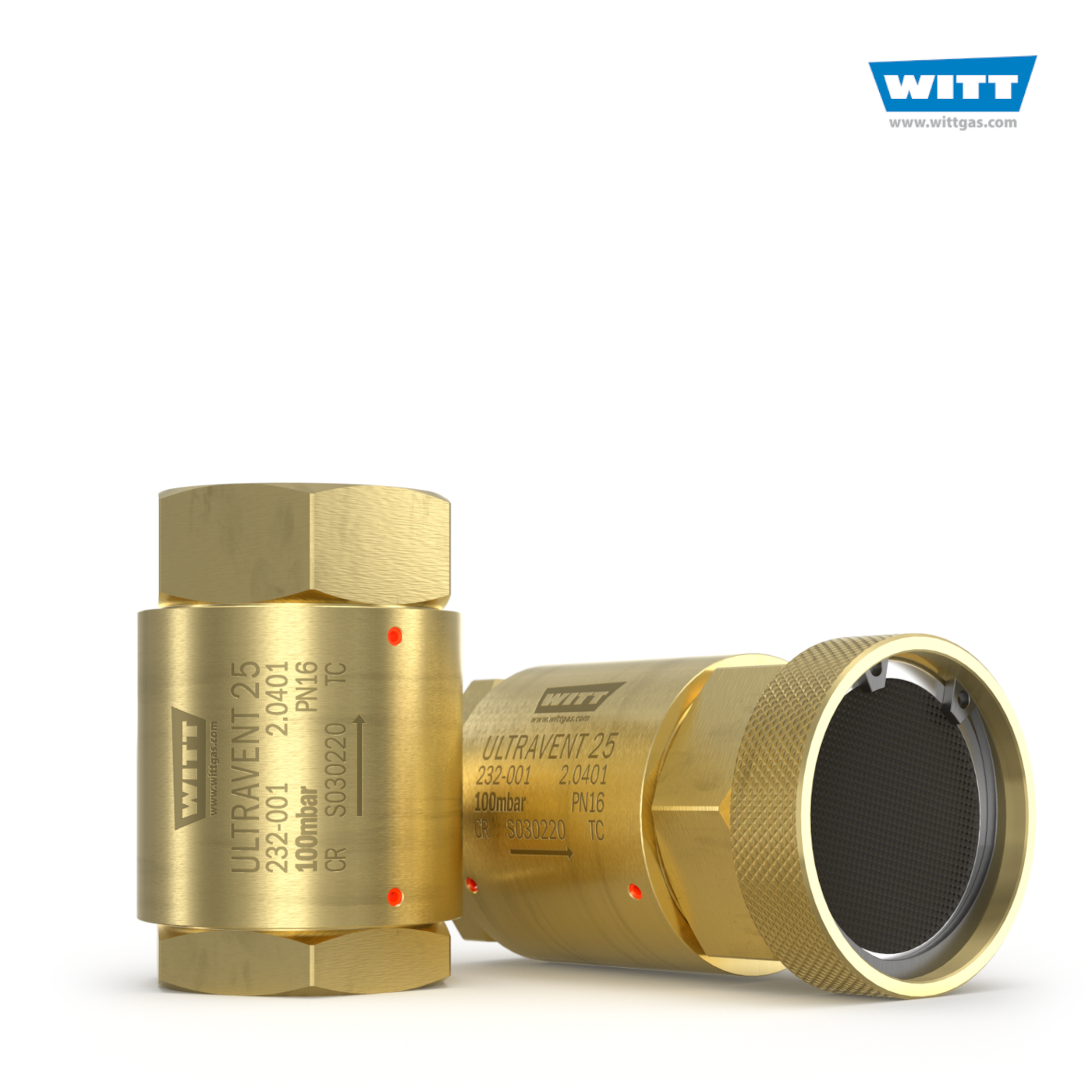

• Optional 100 μm stainless-steel outlet strainer to help prevent external contamination
• Available in brass or stainless steel (ES)
• PEEK valve disc: operating temperature from −30°C to +100°C
• Stainless-steel valve disc: operating temperature from −30°C to +270°C
• NBR, CR and other elastomer seals available
• FDA-approved elastomers and components available on request

Approvals

• WITT quality management certified to ISO 9001
• Manufactured in accordance with PED 2014/68/EU Module H
• TÜV component approval as a safety valve in accordance with DIN EN ISO 4126-1 for applicable configurations from 100 to 500 mbar
• Applicable brass versions without an inlet filter are designed and cleaned for oxygen service in accordance with the relevant EIGA and CGA requirements
