Victor SR310 CO2
Victor SR310 CO2
Victor SR310 CO2
Victor SR310 CO2

Victor SR310 CO2

Vendor: Niche Gas Products
SKU: 0781-0355A
Availability: In Stock

Features

  • Machined aluminium body and housing cap
  • 50mm Gauges
  • Stem type seat mechanism
  • 45mm fabric re-enforced neoprene diaphragm
  • Self reseating relief valve (Not designed to protect downstream apparatus)
  • Sintered inlet filter
  • Adjustable from 0 – 1000 kPa
  • Flow Range 5 – 100 LPM
  • Type 30 inlet connection – CO2 (others on request)
  • Outlet Connection: 5/8″ – 18 RH male (others on request)
  • Maximum Inlet 10,335 kPa (1500 PSIG). (Burst 4500psi)
  • Cv 0.175
Get A Quote
Description
Description
x

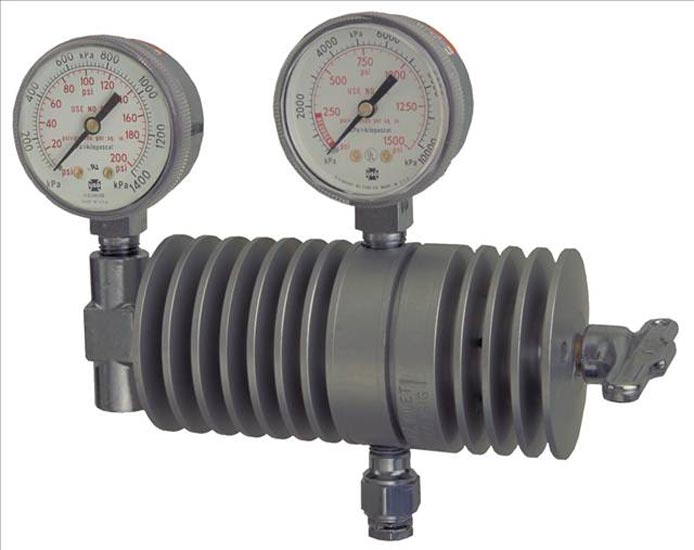

The SR310-T30 CO2 adjustable pressure regulator is specifically designed for use with standard (non-siphoned) carbon dioxide cylinders. The unique design incorporates aluminium heat sink fins which permit high flow rates without freeze-up or noticeable change in pressure or flow. Converted for Australian/NZ connections. With 5/8 " UNF RH male outlet.

The SR310 complies with UL252 and CGA E-4, both of which contain a 1.5X proof requirement and a 3X burst requirement. So the SR310 will withstand a proof test of 2250 psig (155 bar) and a burst test of 4500 psig (310 bar). The burst test requirements are that the regulator must not rupture below this pressure.
