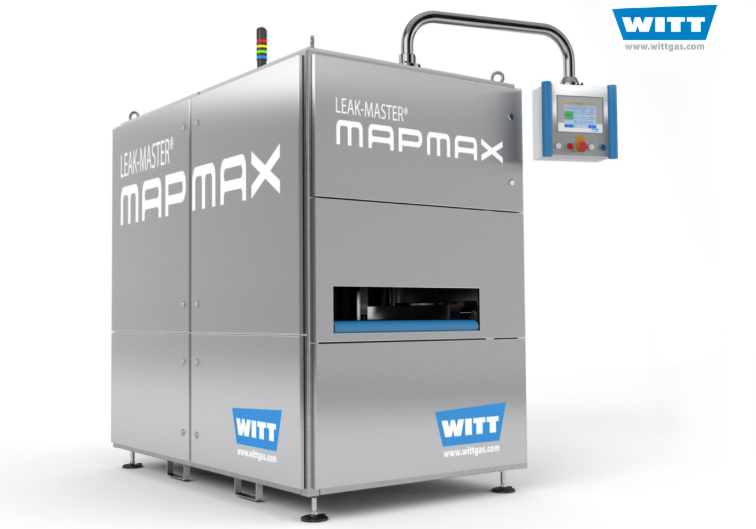

Witt Package Leak Detector LEAK-MASTER® MAPMAX Compact

Automatic in-line micro-leak detection system for packages based on CO2. LEAK-MASTER® MAPMAX features non-destructive detection of the smallest leaks without the need of costly helium - directly from the packaging line.

CO2 is the most important gas in the packaging of food under modified atmospheres. The LEAK-MASTER® MAPMAX uses this CO2as trace gas. That way it is possible to test the packages for leaks directly after the packing process.

The LEAK-MASTER® MAPMAX places the packages or complete shipping cases precisely in the test chamber. If the test sample is leaking, the pressure difference will result in a gas flow from the package into the chamber and the CO2-concentration within the chamber rises. The highly sensitive sensor will notice the changes of the CO2-concentration and even smallest leaks are easily detected.

After each test cycle (up to 15 cycles per minute) the chamber is ventilated and the test sample is moved on to the following system. If a leak has been detected, several potential free contacts for communication with external systems are available (e.g. alarms and/or pusher).
