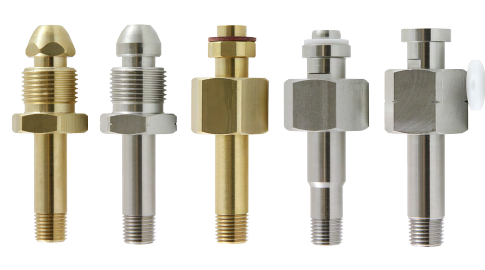

Cylinder Connections
NGP stocks and has access to a wide range of cylinder connections. Have you imported a special cylinder from the USA and cannot find a connection for it? We stock most CGA cylinder connections. Also DIN, ISO, BS, AS/NZ. Stainless steel, chrome plated brass and brass style available.
-
Vendor: Niche Gas ProductsType 30 Cylinder Connector Thread: 0.860″ WHIT RH, 14 TPISealing: Flat-end sealing face, thread O.D. 21.8 mmGases: Carbon dioxide, nitrous oxideKits Include: Type 30 nylon washerStandard: Manufactured to AS 2473.2
- From $2.00
- From $2.00
- Unit price
- per
-

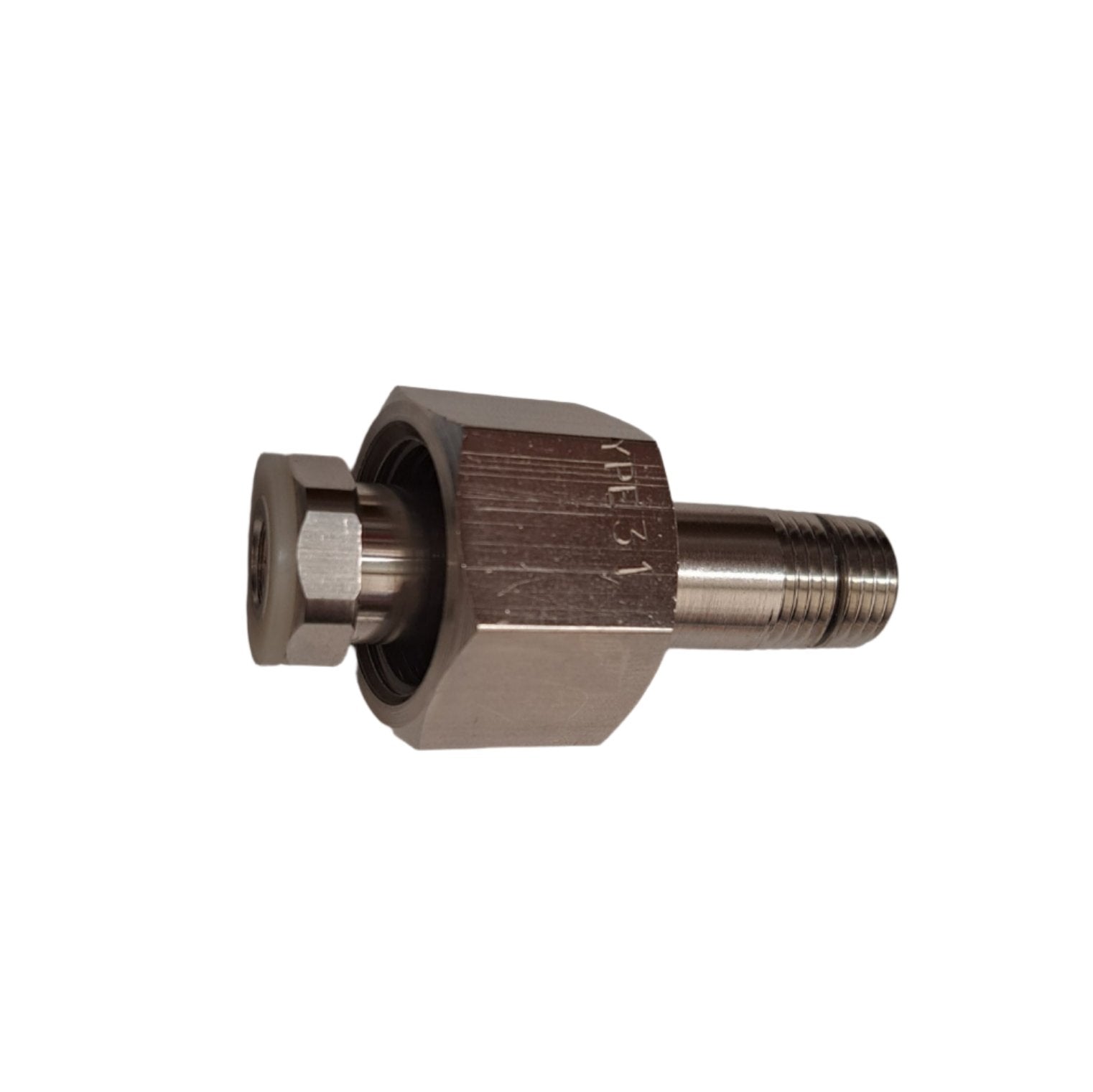

Vendor: Niche Gas ProductsType 31 — Cylinder ConnectorThread: 5/8″ BSP RH external, 14 TPISealing: Flat-end sealing face, thread O.D. 22.8 mmGases: Hexafluoride, methyl bromide, phosgeneConstruction: Comprising nut, nipple and washerMaterials: Available in brass, chrome‑plated brass and stainless steelStandard: Manufactured to AS 2473.2
- From $72.00
- From $72.00
- Unit price
- per
-
Vendor: Niche Gas Products
Nitrogen/Air N2 Shock and tyre schrader valve filling no loss chuck. Strut Coupler
The N2/Air Filling Valve is designed with the professional in mind. You will be impressed with the quality! This Valve gives you the ability to fill air shocks and tyres. No Loss Chuck for standard schrader valves. Its charging and pressure testing capabilities make...- $120.00
- $120.00
- Unit price
- per
-
Vendor: Niche Gas Products

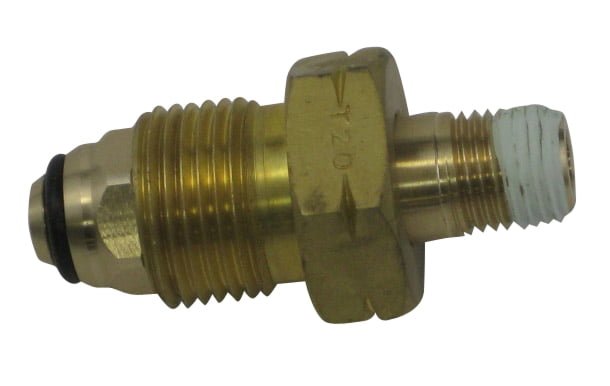

Acetylene & Fuel Gases (Type 20)
Acetylene & Fuel Gases — Type 20 Cylinder Connector Thread: 5/8″ BSP LH internal, 14 TPISealing: Internal angled sealing face, thread I.D. 21.0 mmGases: Acetylene, carbon monoxide, ethane, ethylene, hydrogen, methane, flammable gases, flammable non‑toxic mixturesConstruction: Comprising nut and nipple. Brass and plated versions...- From $46.00
- From $46.00
- Unit price
- per
-

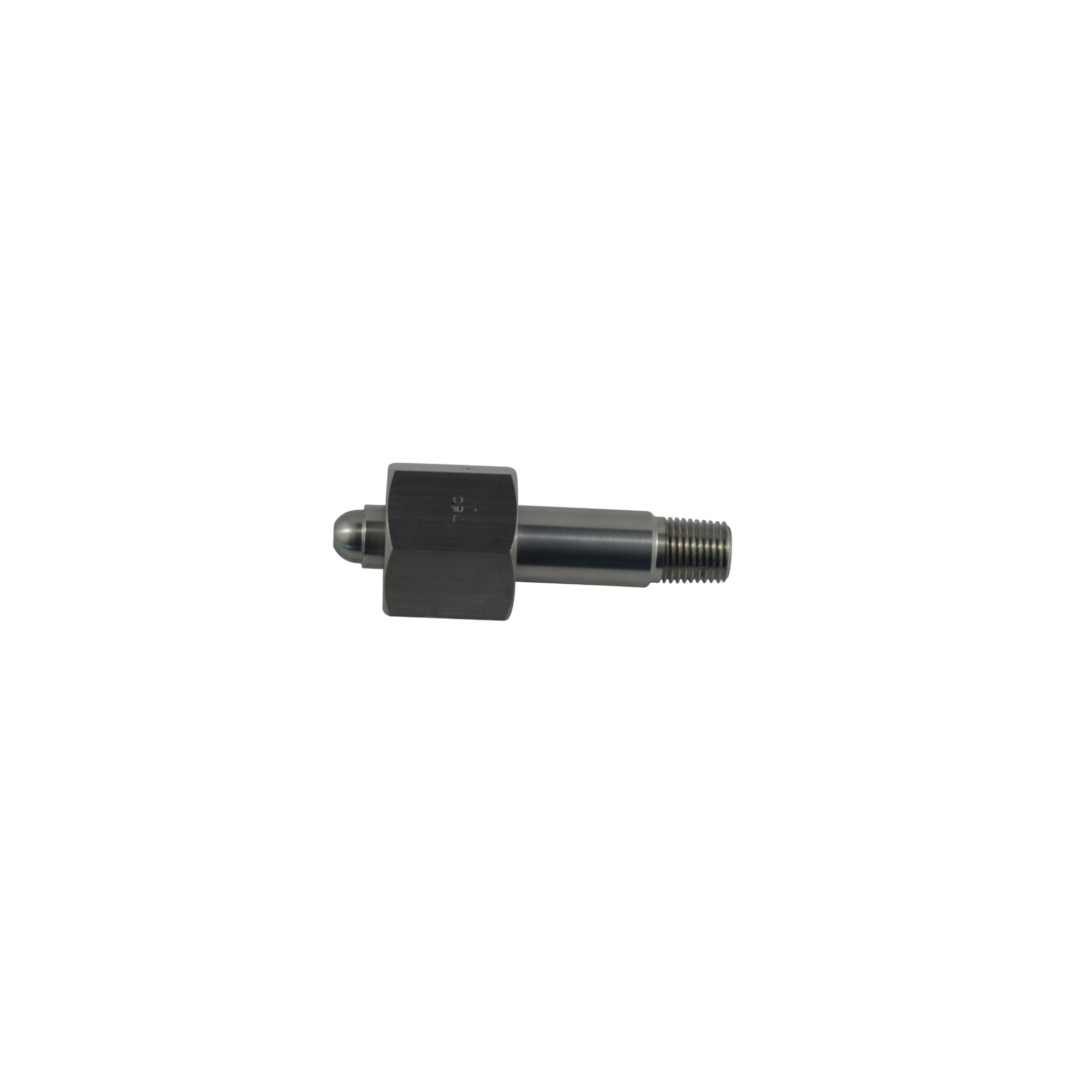

Vendor: Niche Gas ProductsNitrogen, etc. — Type 50 Cylinder Connector Thread: W24 × 2 RH external, 14 TPISealing: Internal angled sealing face, thread O.D. 24.0 mm; first centre hole 13.3 mm × 8.1 mm deepGases: Nitrogen, neon, krypton, xenon, nitrogen/carbon dioxide mixtures, non‑flammable non‑toxic non‑oxidising mixturesConstruction: Comprising...
- From $56.00
- From $56.00
- Unit price
- per
-
Vendor: Niche Gas Products

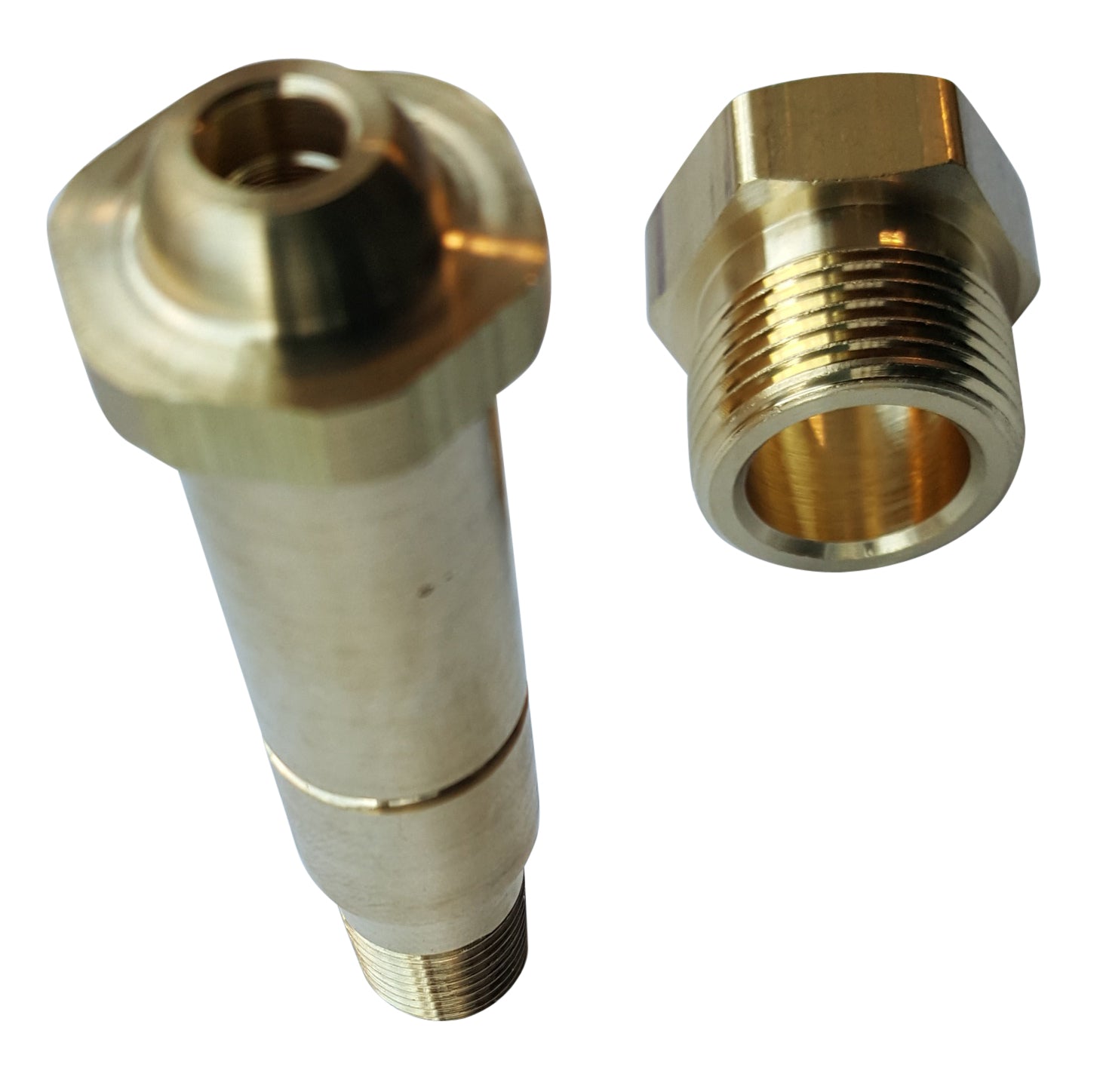

Nitrogen, Extra High Pressure (Type 51)
Nitrogen, Extra High Pressure (Type 51) – Cylinder ConnectorThread: 1.045″ NGO RH internal, 14 TPISealing: Internal angled sealing face, thread O.D. 24.6 mmConstruction: Comprising nut and nippleGases: Argon, helium, nitrogen, neon, krypton, xenon (up to 31,500 kPa / 315 bar)Materials: Available in brass, chrome‑plated...- From $70.00
- From $70.00
- Unit price
- per
-
Vendor: Niche Gas ProductsAcetylene & Hydrogen service adaptor Designed for blanking off cylinders or point valves to help reduce the risk of leaks and prevent contaminants from collecting in the connection. Includes: Type 20 nut and blank spigot Weight .2 kg
- $49.50
- $49.50
- Unit price
- per
-
Vendor: Niche Gas Products

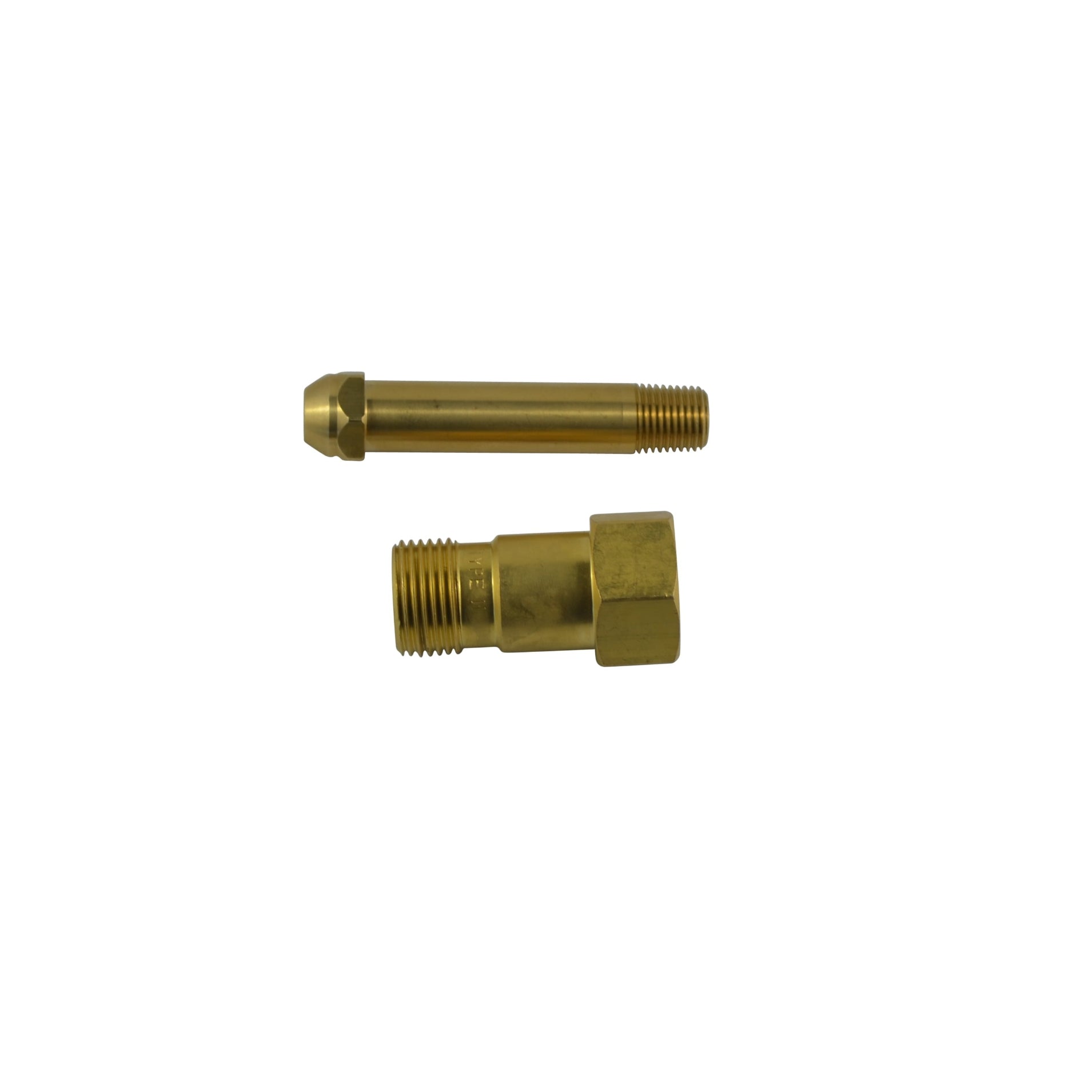

Oxygen, Extra High Pressure (Type 11)
Oxygen, Extra High Pressure (Type 11) — Cylinder Connector Thread: 5/8″ BSP RH internal, 14 TPISealing: Internal angled sealing face, internal recess diameter 23.5–24.0 mmGases: Oxygen (up to 25,000 kPa / 250 Bar)Construction: Comprising nut and nippleMaterials: Available in brassStandard: Manufactured to AS 2473.2- $95.00
- $95.00
- Unit price
- per
-

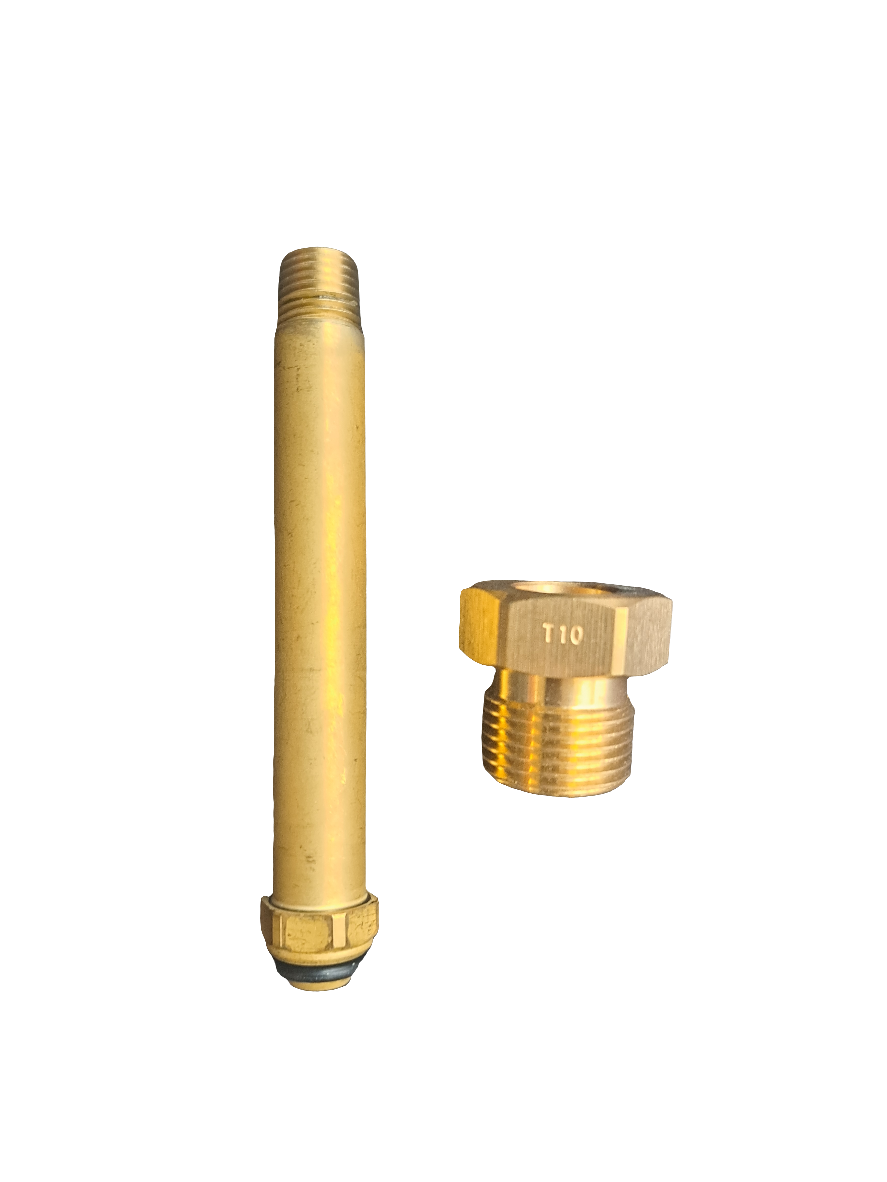

Vendor: Niche Gas ProductsType 10 AS 2473.2 Cylinder Connector Thread: 5/8″ BSP RH internal, 14 TPI Sealing: Internal angled sealing face, thread I.D. 21.0 mm Gases: Oxygen, helium, argon, non-flammable, non-toxic mixtures Construction:• Supplied as nut and nipple assembly• Brass and plated brass versions include O-ring, inlet...
- From $40.00
- From $40.00
- Unit price
- per
-

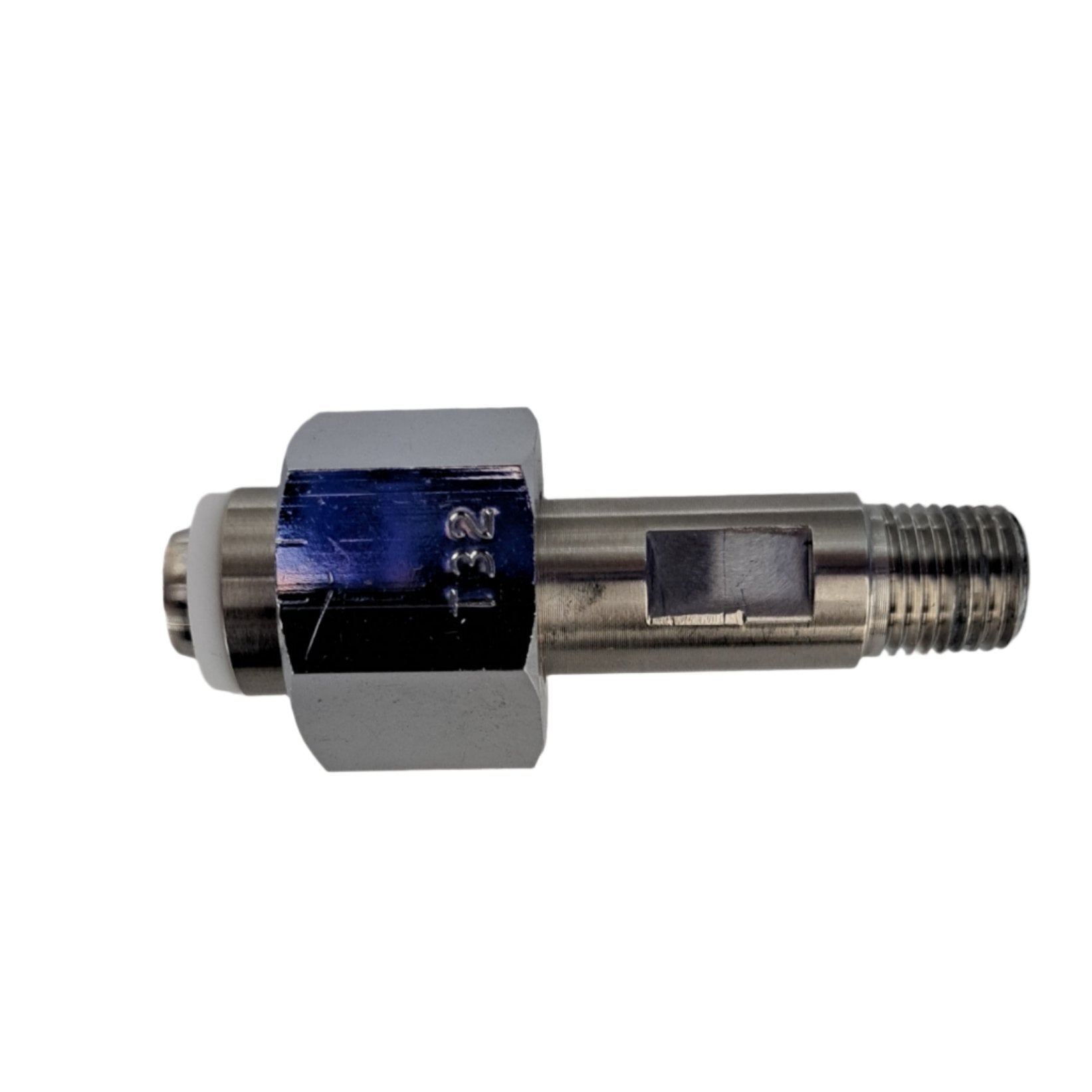

Vendor: Niche Gas ProductsAmmonia & SO₂ (Type 32) — Cylinder Connector Thread: 1/2″ BSP RH external, 14 TPISealing: Flat-end sealing face, thread O.D. 20.8 mmGases: Ammonia, sulphur dioxide (SO₂)Construction: Comprising female nut, nipple and washerMaterials: Available in brass, chrome‑plated brass and stainless steelStandard: Manufactured to AS 2473.2
- From $95.00
- From $95.00
- Unit price
- per
-

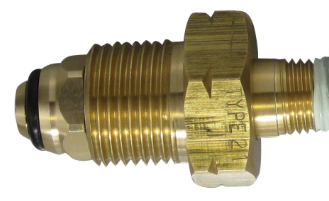

Vendor: Niche Gas ProductsLPG, Etc. (Type 21) — Cylinder Connector Thread: 0.885" NGO LH internal, 14 TPISealing: Internal angled sealing face, thread I.D. 21.0 mmGases: LPG, butane, propane, propyleneConstruction: Comprising nut and nipple; brass and plated versions also include O‑ring, filter & filter retainerMaterials: Available in brass,...
- From $40.00
- From $40.00
- Unit price
- per
-
Vendor: Niche Gas Products
Methylamine, Ethylamine, Ethylene oxide (Type 42)
Methylamine, Ethylamine, Ethylene Oxide (Type 42) — Cylinder Connector Thread: 1/2″ BSP LH internal, 1/4″ NPT connecting threadSealing: Flat-end sealing face on nipple with Nylon washerGases: Methylamine, Ethylamine, Ethylene oxide / dichlorodifluoromethaneConstruction: Comprising nut, nipple and washerMaterials: Available in brass and stainless steelStandard: Manufactured...- From $72.00
- From $72.00
- Unit price
- per
-
Vendor: Niche Gas Products
Hydrogen, Extra High Pressure (Type 22)
Hydrogen, Extra High Pressure (Type 22) — Cylinder Connector Thread: 1.045″ NGO LH internal, 14 TPISealing: Internal angled sealing face, thread O.D. 24.6 mmGases: Hydrogen, up to 31,500 kPa (315 Bar)Construction: Comprising nut and nippleMaterials: Available in brassStandard: Manufactured to AS 2473- $85.00
- $85.00
- Unit price
- per
-
Vendor: Niche Gas ProductsNGP carries a range of common CGA cylinder connections in brass and stainless steel
-
Vendor: Niche Gas Products
Non-flammable non-toxic (Type 33)
Non‑Flammable, Non‑Toxic (Type 33) — Cylinder Connector Thread: 1/4" BSP RH external, 19 TPISealing: Flat-end sealing face, thread O.D. 13 mmGases: Non-flammable, non-toxic mixturesConstruction: Comprising nut, nipple & washerMaterials: Available in brassStandard: Manufactured to AS 2473 -
Vendor: Niche Gas ProductsRefrigerant Gases (Type 34) — Cylinder Connector Thread: 3/4" BSP RH external, 14 TPISealing: Flat-end sealing face, thread O.D. 26.3 mmGases: Refrigerant gasesConstruction: Comprising nut, nipple & washerMaterials: Available in brassStandard: Manufactured to AS 2473
-
Vendor: Niche Gas ProductsHBr, HCl, H₂S (Type 43) — Cylinder Connector Thread: 0.825" NGO LH external, 14 TPISealing: Flat-end sealing face, thread O.D. 21.8 mmGases: Hydrogen bromide, hydrogen chloride, hydrogen sulphide, methyl mercaptanConstruction: Comprising nut, nipple & washerStandard: Manufactured to AS 2473
-
Vendor: Niche Gas Products
Non-flammable toxic mixtures (Type 44)
Non-Flammable Toxic Mixtures (Type 44) — Cylinder Connector Thread: 3/8" BSP RH external, 14 TPISealing: Flat-end sealing face, thread O.D. 16.5 mmGases: Non-flammable toxic mixturesConstruction: Comprising nut, nipple & washerMaterials: Available in stainless steelStandard: Manufactured to AS 2473 -

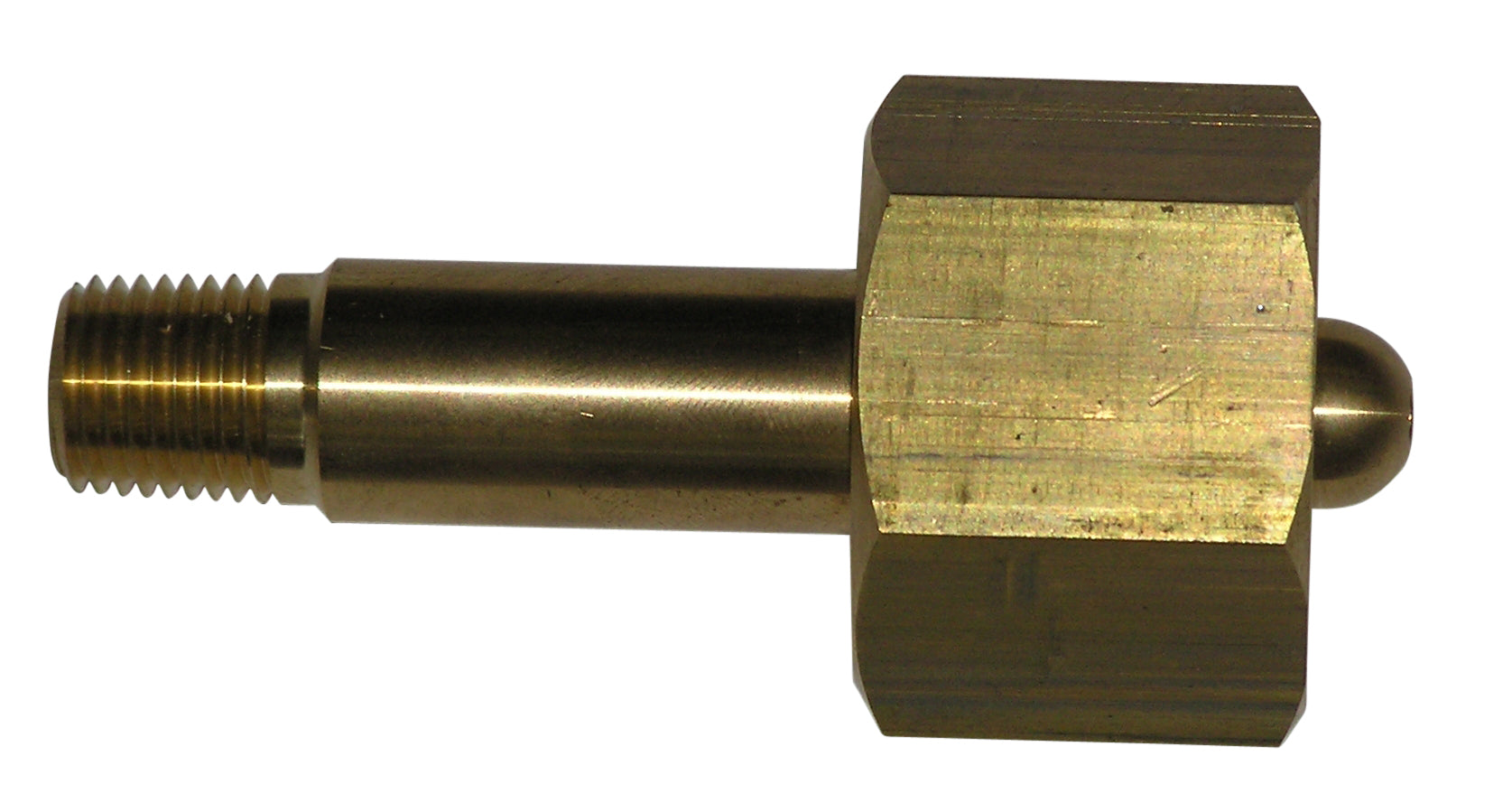

Vendor: Niche Gas ProductsAir (Type 60) — Cylinder Connector Thread: W27×2 RH external, 14 TPISealing: Internal angled sealing face, thread O.D. 27.0 mm, centre hole 18.2 mm × 8.1 mm deepGases: AirConstruction: Comprising nut and nippleMaterials: Available in brass, chrome‑plated brass, and stainless steelStandard: Manufactured to AS...
-
Vendor: Niche Gas Products

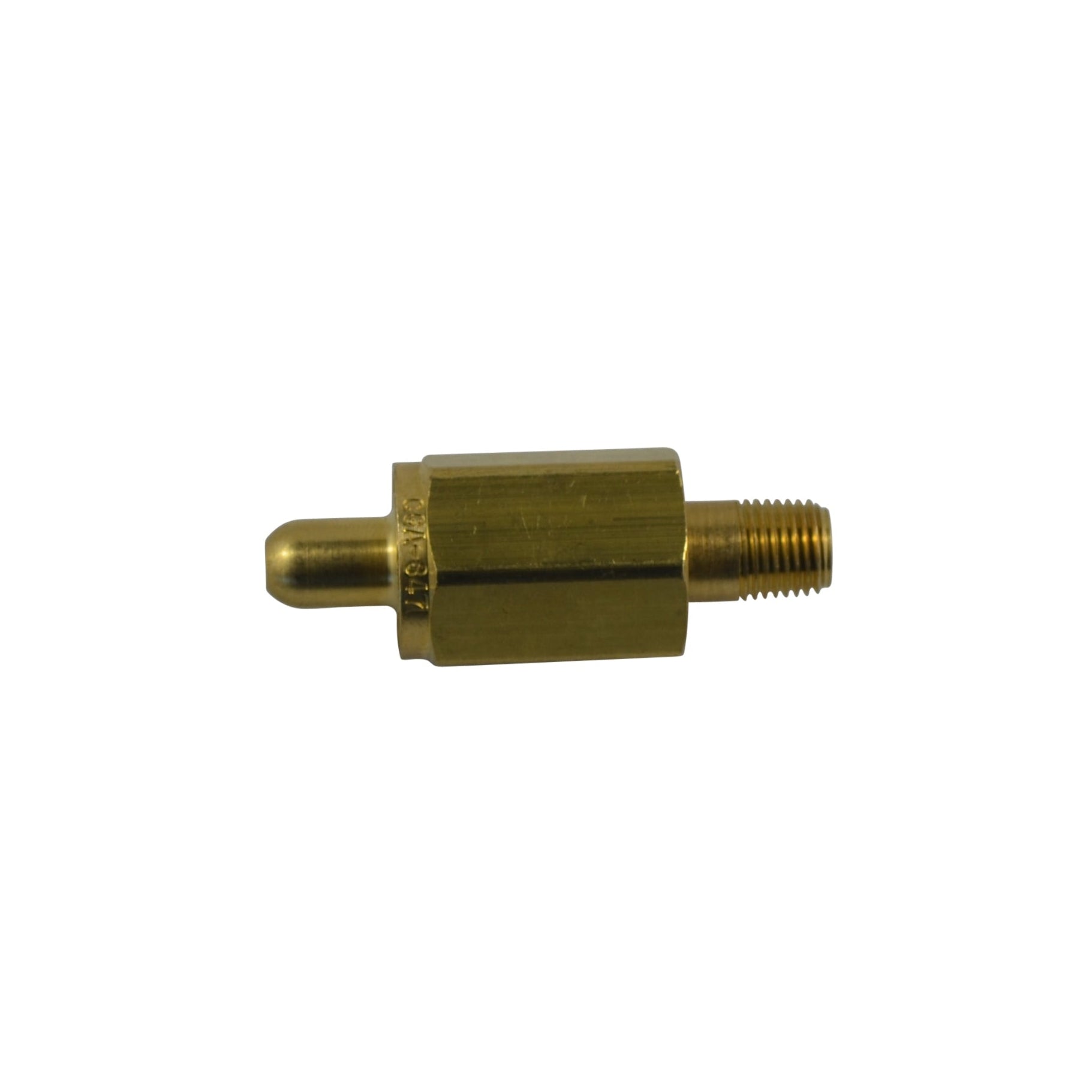

Air, Extra High Pressure (Type 61)
Air, Extra High Pressure (Type 61) — Cylinder Connector Thread: 0.825" NGO RH external, 14 TPISealing: Internal angled sealing face, thread O.D. 20.8 mm, first centre hole 12.8 mm × 12.1 mm deepGases: AirConstruction: Comprising nut and nippleMaterials: Available in brass, chrome-plated brass and...
