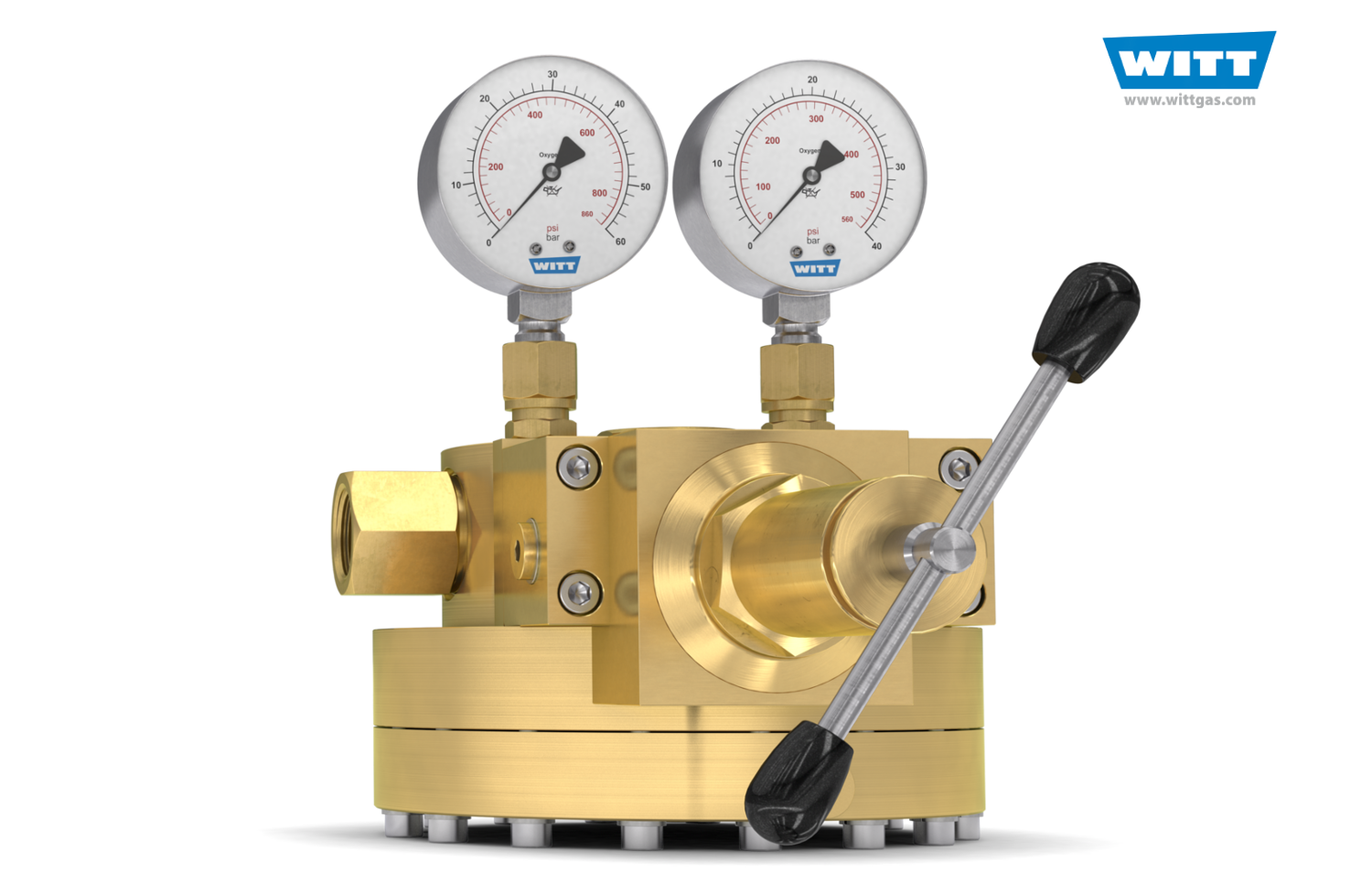

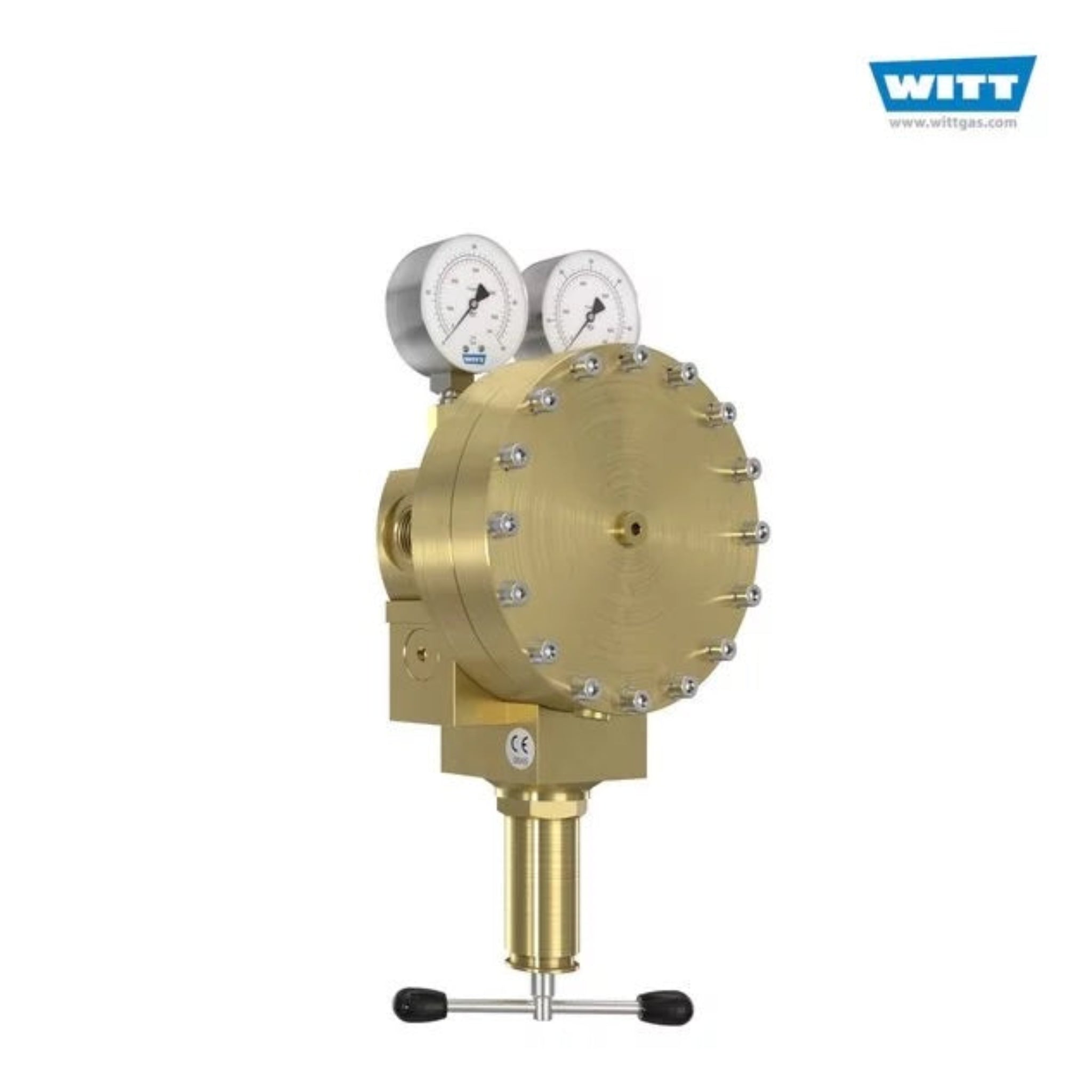

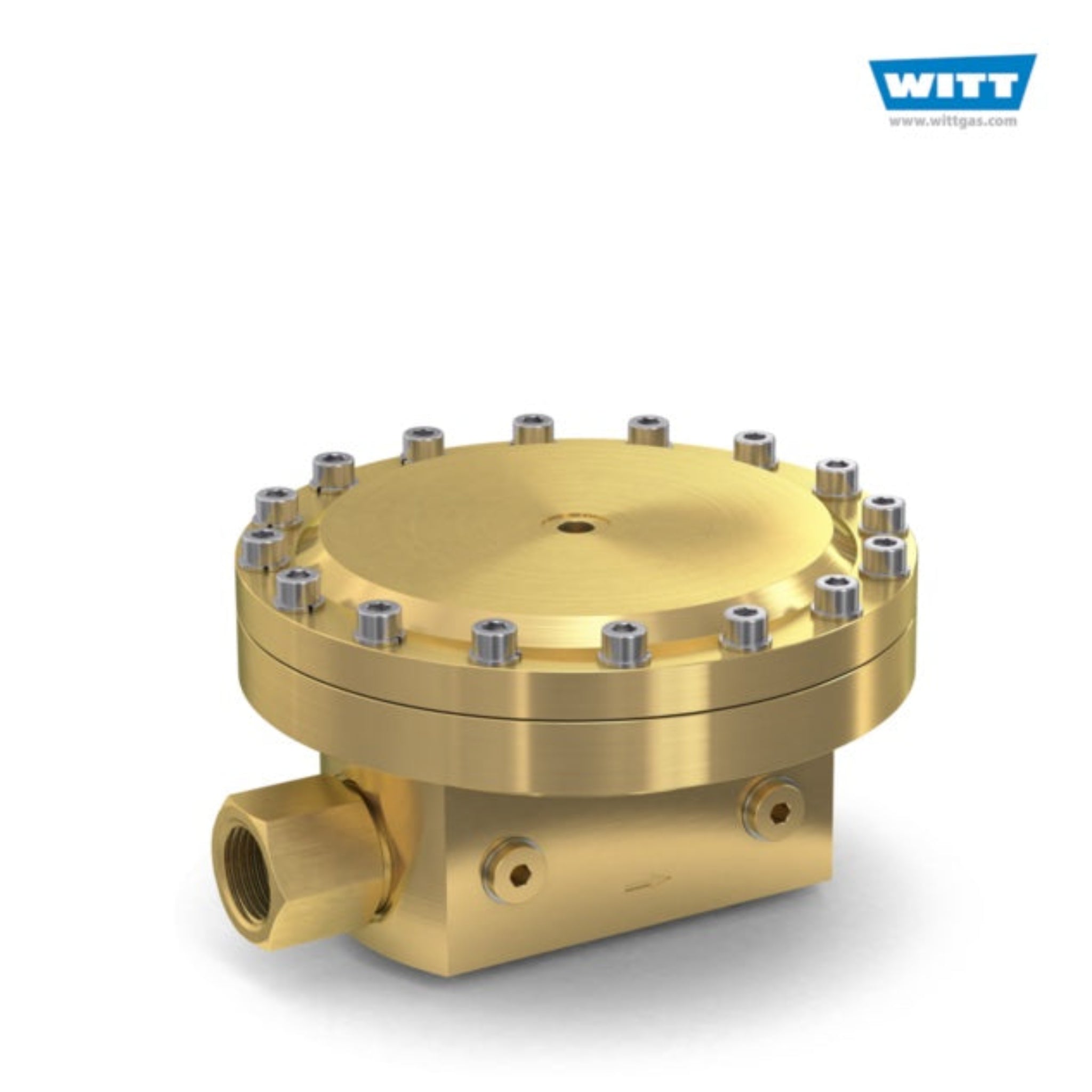

737LE/S, G¾" (F), Cv value 2.8

High-performance dome-loaded pressure regulator-set. For high and varying flows requiring maximum pressure stability. A complete solution, applicable as a manifold pressure regulator per DIN EN ISO 7291.

Features:

Balanced Seat Design (BSD)
Further enabling control precision, high reliability and low maintenance

A complete solution, ready to use With integrated pilot pressure regulator, and stainless steel pressure gauges, completely assembled and tested

Own-medium controlled Enabling autonomous operation (no separate gas supply required)

Closed system Self-relieving design, but no gas is released to atmosphere

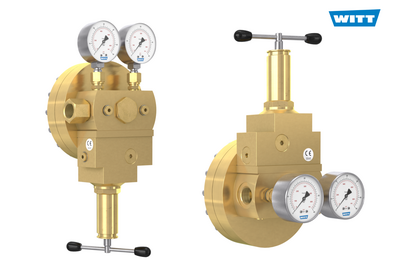

Simple to install and operate Removable spindle enables simple setting of the required outlet pressure Can be positioned at any angle / orientation For indoor and outdoor installation.

Glycerine-filled manometer, unfilled version for oxygen

Operation / Usage: Ideal for process gas supply where pressure accuracy is required even when inlet pressures and flow rates are varying. High flow rates and outlet pressure accuracy are achieved, even when the difference between inlet and outlet pressures is small.

Maintenance: Annual testing of body leak tightness is recommended. Depending on application, moving wetted parts may need periodic replacement. Device-specific Repair-Kit available upon request.

Approvals:

Company certified according to ISO 9001, ISO 22000 and PED 2014/68/EU Module H CE-marked according to PED 2014/68/EU ATEX 2014/34/EU with ignition hazard analysis according to EN 1127-1, DIN EN 13463-1 and ZH1/200 Analysed for Food Safety per HACCP-Analysis Fulfils the requirements of EU Regulations (EC) 1935/2004, and (EC) 2023/2006 Fulfils the requirements of German Food and Feed (LFGB) Law, and is suitable for contact with food gases

Available upon request:

• Lockable spindle hood against unauthorized adjustment
• Certificates and test reports
• Other Dome types
• Switchover systems / parallel supply systems
• Customer-specific / customised versions
