Description

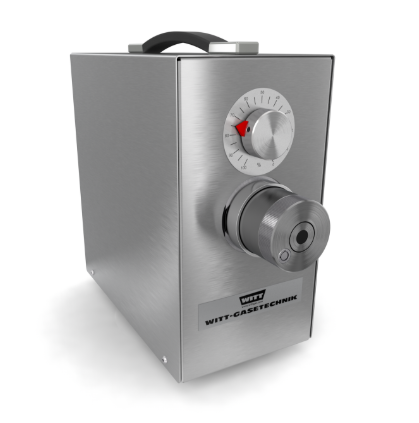

xGas mixing systems for 2 defined gases, designed for variable processes with a mixing range from 5-92%. See other ranges on the data sheet.
Specially designed for applications with only low gas consumption. Ideally suitable as a portable desktop unit, e.g. for laboratory applications. Features new mixing technology, eliminating the need for a receiver. Capacity range up to approx. 59 SCFH. For the exact pressure and flow capacity ratios, please see the data sheet.
Easy operation:
- mixing valve with control knob and %-scale for variable mixture settings
High process reliability:
- independent of pressure fluctuations in the gas supply
- independent of withdrawal fluctuations (within permitted range)
- fail-safe design (unit shuts down on failure of either gas supply)
- lockable to prevent tampering
Options:
- alarm module NXT+: integrated inlet pressure monitoring with digital display for pressure (with analog pressure transmitters) plus optical alarm, adjustable alarm limits, obligation of acknowledgement, protection of alarms, interfaces for controlling external alarms etc.
Our gas mixers are always aligned to the needs of the customer. Please tell us your requirements, we will realize them.
