Package Leak Detector LeakMaster EASY PLUS

Leak detection system for packages - with electronic control unit. LEAK-MASTER® EASY features the detection of even the smallest leaks without the need of trace gases.

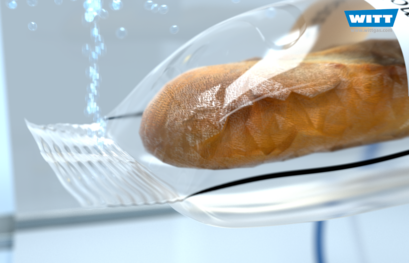

The package is placed into a chamber filled with water, the head space above the water-level is evacuated using a venturi vacuum (compressed-air) system. The package immersed in water inflates, any leak and the location of the leak is clearly identified by a stream of bubbles.

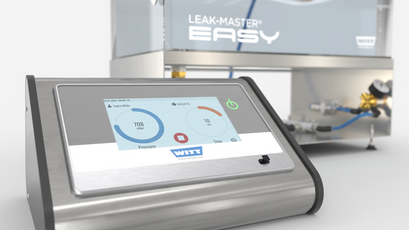

The addition of the electronic control unit facilitates the operation of LEAK-MASTER® EASY and provides fast, standardised test processes and optimal documentation.

Benefits of LEAK-MASTER® EASY:

• economical and uncomplicated
• visual inspection allows localisation of the leak
• for all flexible and rigid kind of packaging (food-, pharmaceutical-, industrial- and other packaging)
• short testing period (< 30 sec.)
• easy-to-use intuitive operation – no special skills required
• easy installation and start-up
• no trace gas required in package
• can also be used for altitude simulation

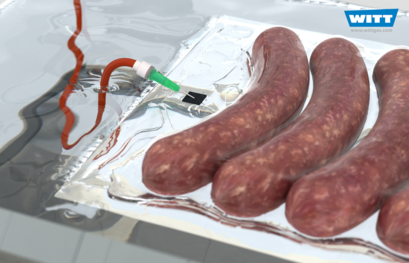

• optionally also for vacuum packaging
• no calibration required

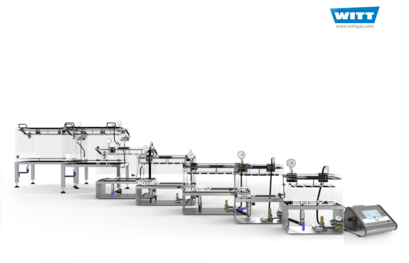

• various chamber sizes available
• low maintenance
• easy-to-clean acrylic glass housing
• standard with compressed air driven Venturi nozzle (without electrical connections)
• optionally with electrical vacuum pump
• ASTM D3078, ASTM D6653, ASTM D4169, ASTM D4991, ASTM D 5094 standard

• minimal response time
• quick product change
• no calibration required
• simple to operate via touchscreen
• permanent monitoring of set limit values
• user-friendly – data and process parameter entry by means of integrated keyboard or remote personal computer (e.g. MS-Excel®)
• convenient data administration and evaluation for customer-oriented quality documentation
• alarm signals are given if the set limits are exceeded and a potential-free contact operates to e.g. auto-stop your machine to avoid quality problems
• easy installation and start-up
• hygienic and easy to clean splash-proof stainless steel cabinet / housing
• remote transmission of results via Ethernet
• potential-free alarm contact for connection of external audible/visual device
• Ethernet connection for network integration
• measured data storage
• administration of product names
• user management for measurement personalisation

• Barcode Reader for simple and quick user/product selection with IP-protection
• software GASCONTROL CENTER for recording of results (see separate data sheet)
