  • ProLine Tip PL-12A [0386-0820]
    Niche Gas Products

    ProLine Tip PL-12A [0386-0820]

    Air/Acetylene tip with piezo trigger built in. Connects to ProLine handle H-4. Soft solder: 50-90mm Silver solder: 25-50mm Replacement tip end: 12A-TE Replacement orifice: OR-T-6
    $140.00
    $140.00
  • Regulator Model 601 - Acetylene [601-ACET]
    Niche Gas Products

    Regulator Model 601 - Acetylene [601-ACET]

    Light duty cutting, welding and brazing Model 601 Compact single stage cylinder pressure regulator for Acetylene use Maximum outlet pressure: 1.5 bar Inlet:  Type 20 Outlet:  5/8″-18 LH
    $102.66
    $102.66
  • Regulator outlet - 5/8"-18
    Niche Gas Products

    Regulator outlet - 5/8"-18

    Replacement outlet for ProLine regulators AR-BSP & R-LP
    $15.40
    $15.40

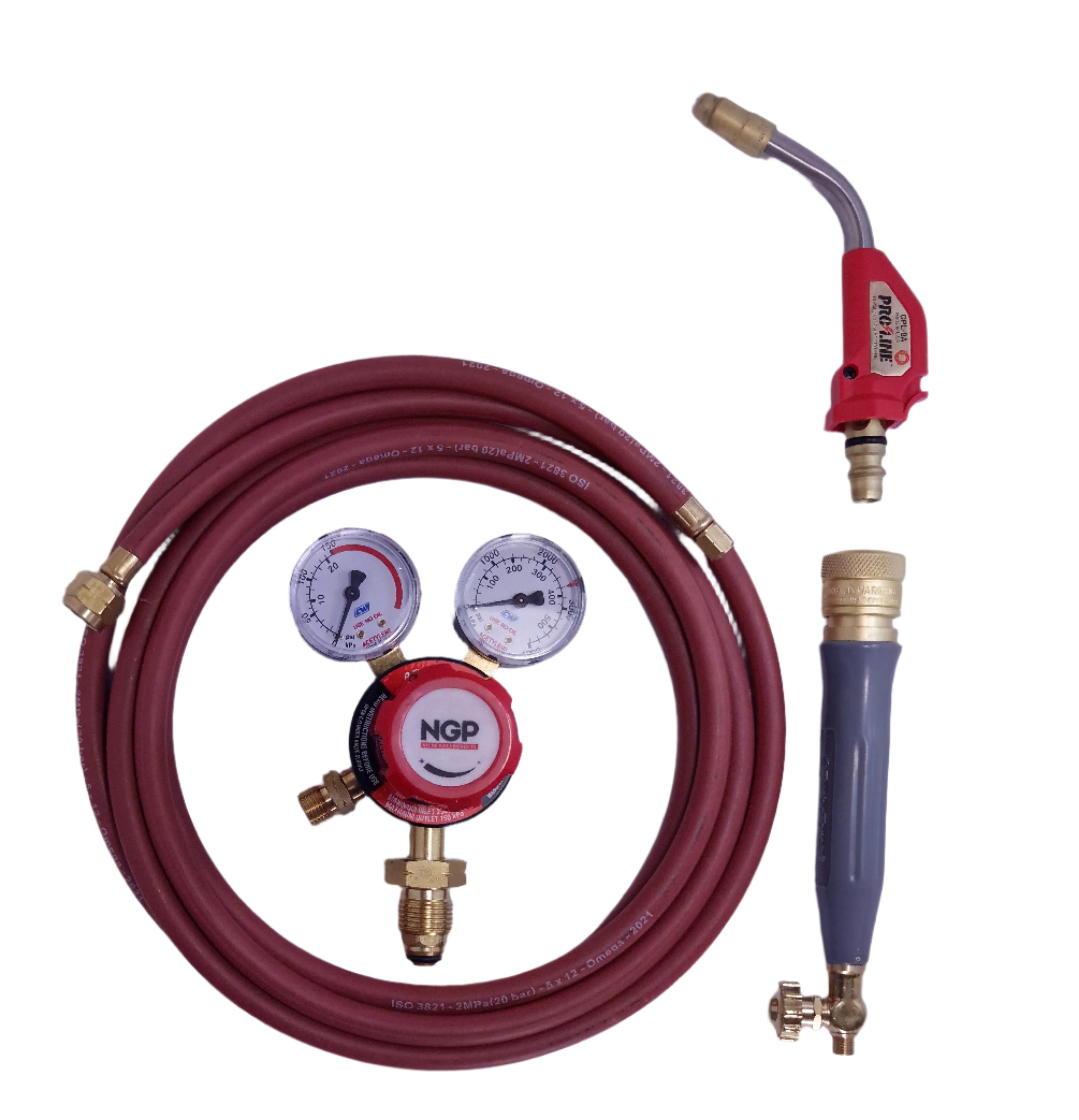

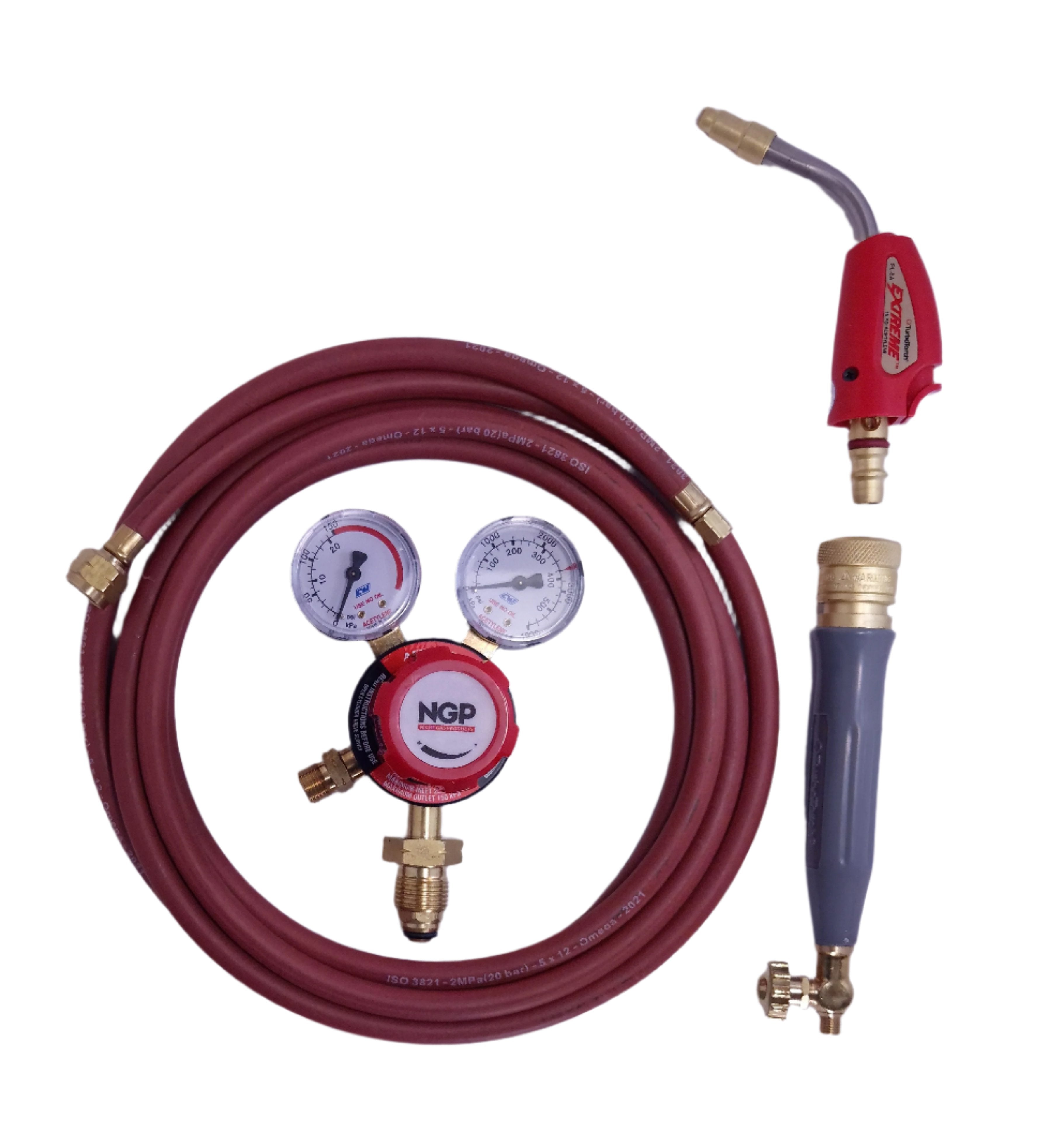

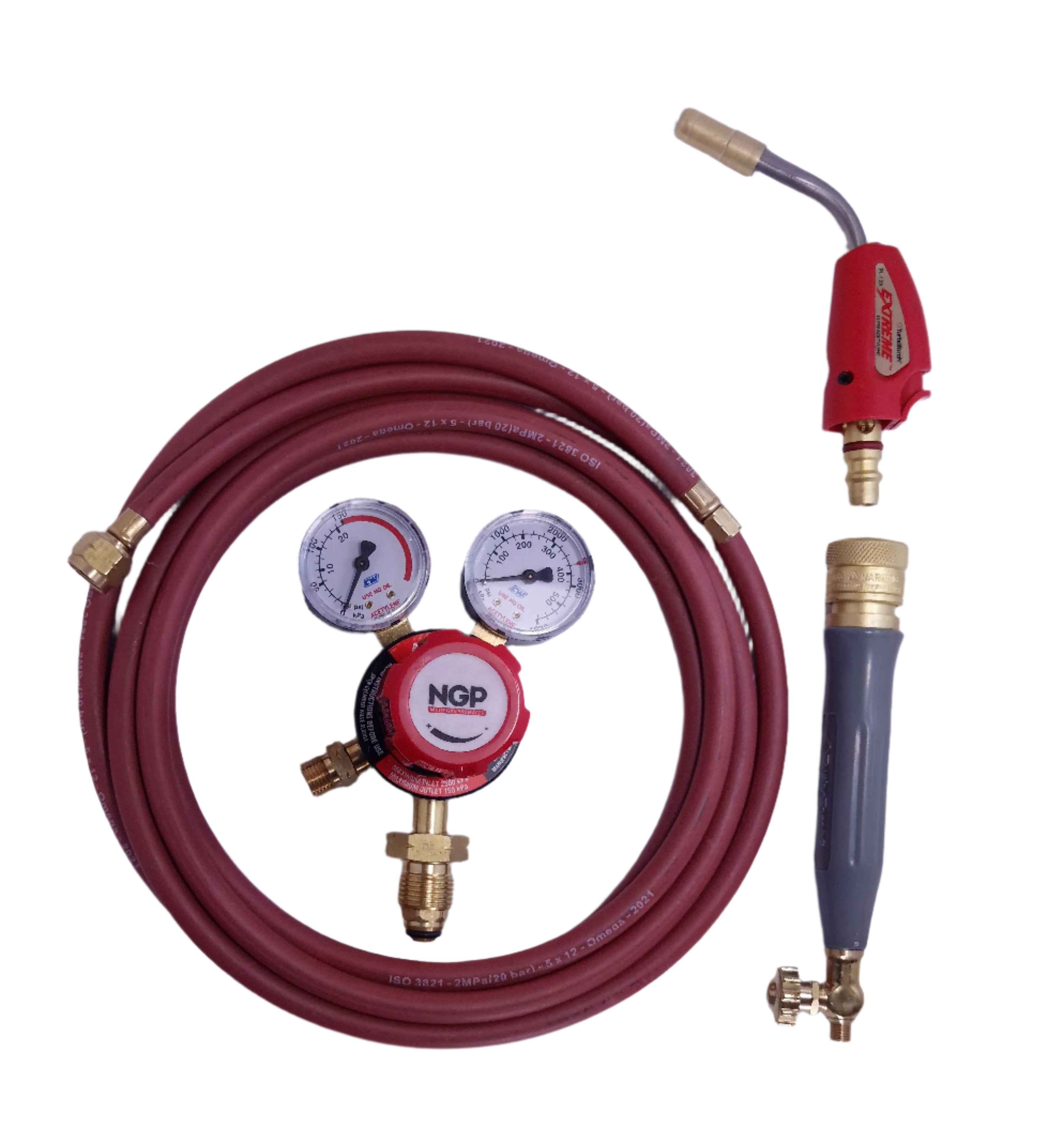

  • ProLine Kit Acet [NGP7003-PL5A]ProLine Kit Acet [NGP7003-PL5A]
    Niche Gas Products

    ProLine Kit Acet [NGP7003-PL5A]

    Air/Acetylene ProLine Kit with 1 x PL-5A tip. Kit also contains 601 series regulator, H-4 handle, 3M acetylene hose (including connections) Note: PL-3A is not available
    $320.00
    $320.00

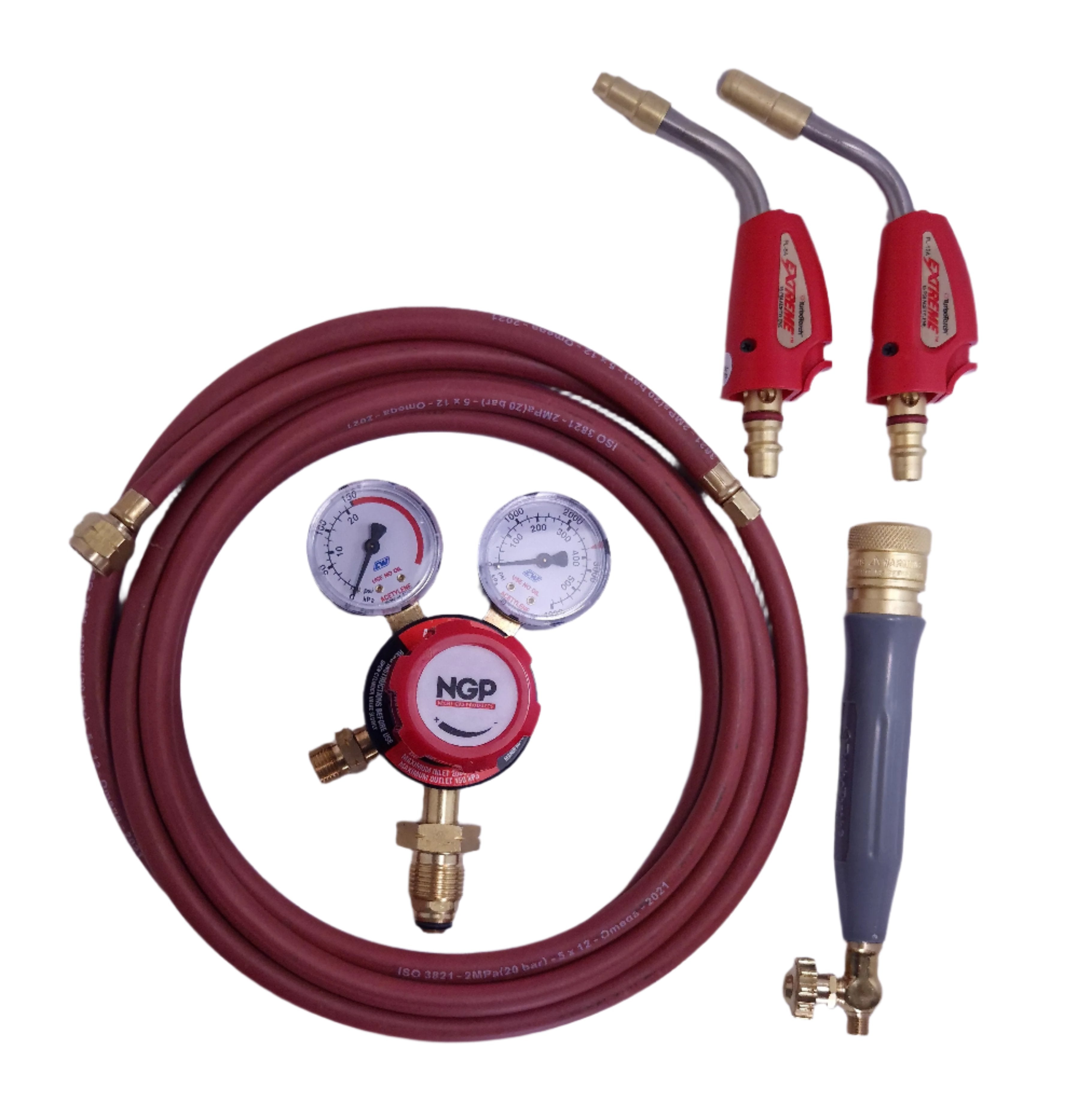

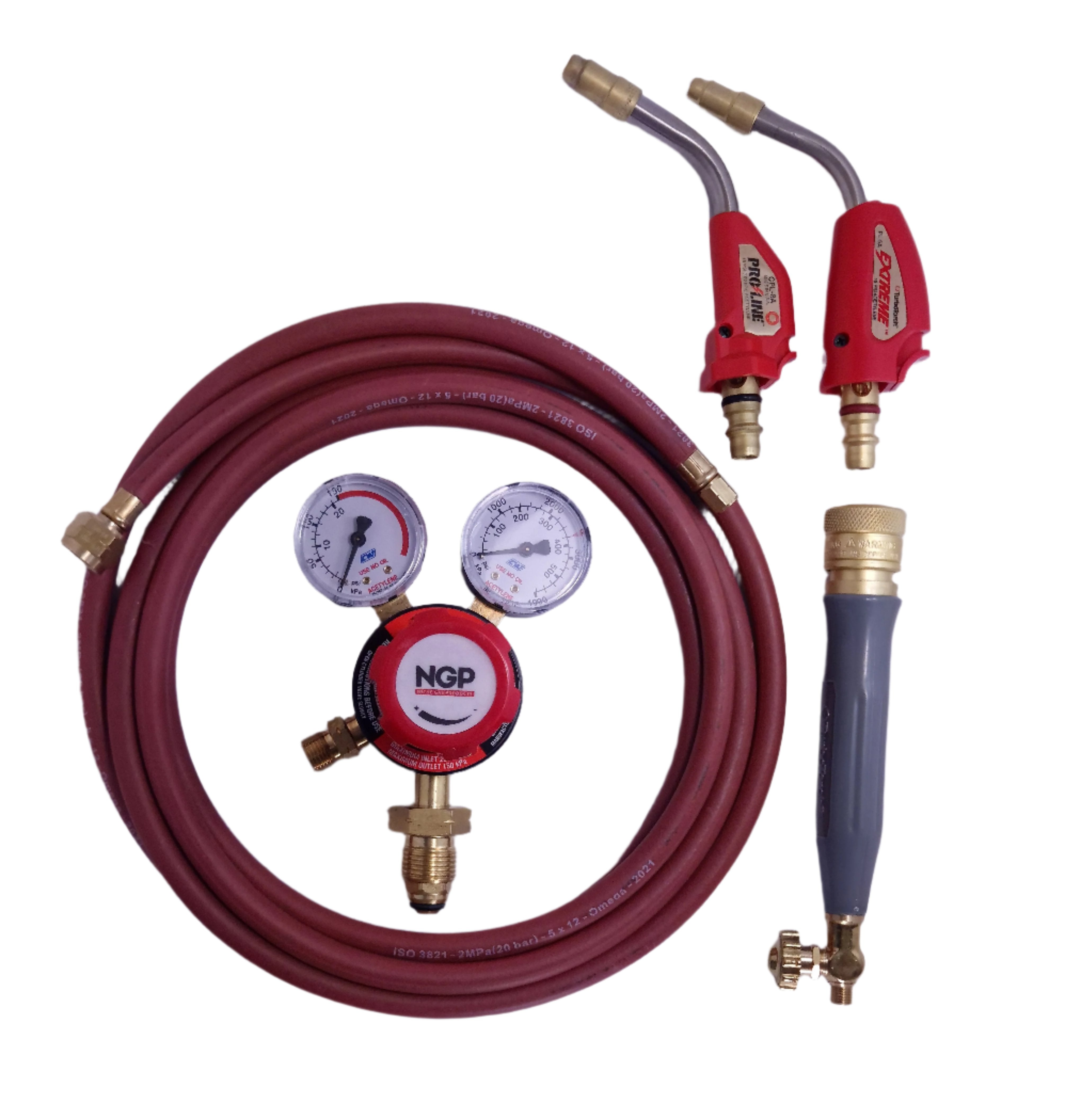

  • ProLine Kit Acet 2 [NGP7004-PL5A-PL8A]ProLine Kit Acet 2 [NGP7004-PL5A-PL8A]
    Niche Gas Products

    ProLine Kit Acet 2 [NGP7004-PL5A-PL8A]

    Air/Acetylene ProLine Kit with PL-5A & PL-8A tips. Kit also contains 601 series regulator, H-4 handle, 3M acetylene hose (including connections) Note: PL-3A is not available
    $378.00
    $378.00

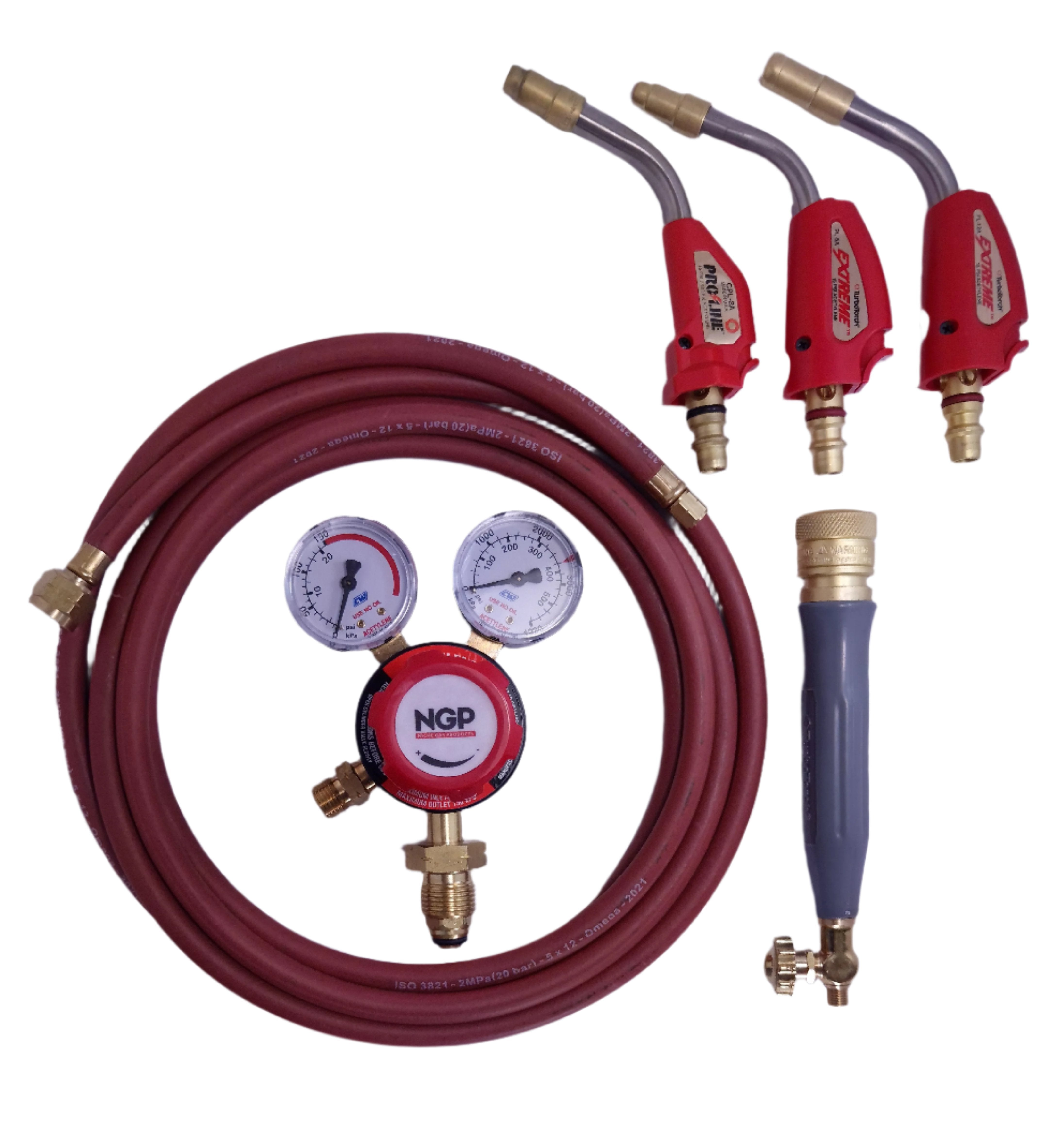

  • ProLine Kit Acet 3 [NGP7005]ProLine Kit Acet 3 [NGP7005]
    Niche Gas Products

    ProLine Kit Acet 3 [NGP7005]

    Air/Acetylene ProLine Kit with PL-5A, PL-8A & PL-12A tips. Kit also contains 601 series regulator, H-4 handle, 3M acetylene hose (including connections) Note: PL-3A is not available
    $435.00
    $435.00
  • ProLine Tip PL-5A [0386-0818]
    Niche Gas Products

    ProLine Tip PL-5A [0386-0818]

    Air/Acetylene tip with piezo trigger built in. Connects to ProLine handle H-4. Soft solder: 20-40mm Silver solder: 10-20mm Replacement tip end: 5A-TE Replacement orifice: OR-A8
    $110.00
    $110.00
  • ProLine Tip PL-8A [0386-0819]
    Niche Gas Products

    ProLine Tip PL-8A [0386-0819]

    Air/Acetylene tip with piezo trigger built in. Connects to ProLine handle H-4. Soft solder: 25-50mm Silver solder: 15-25mm Replacement tip end: 8A-TE Replacement orifice: ORPL-A8
    $110.00
    $110.00
  • ProLine Handle H-4 (NGP7006)
    Niche Gas Products

    ProLine Handle H-4 (NGP7006)

    Fits all ProLine and TurboTorch tips. Quick connect mechanism for rapid changing of tips. On/Off valve at rear. 5/8-18 LH hose connection to Aust/NZ standards
    $114.40
    $114.40

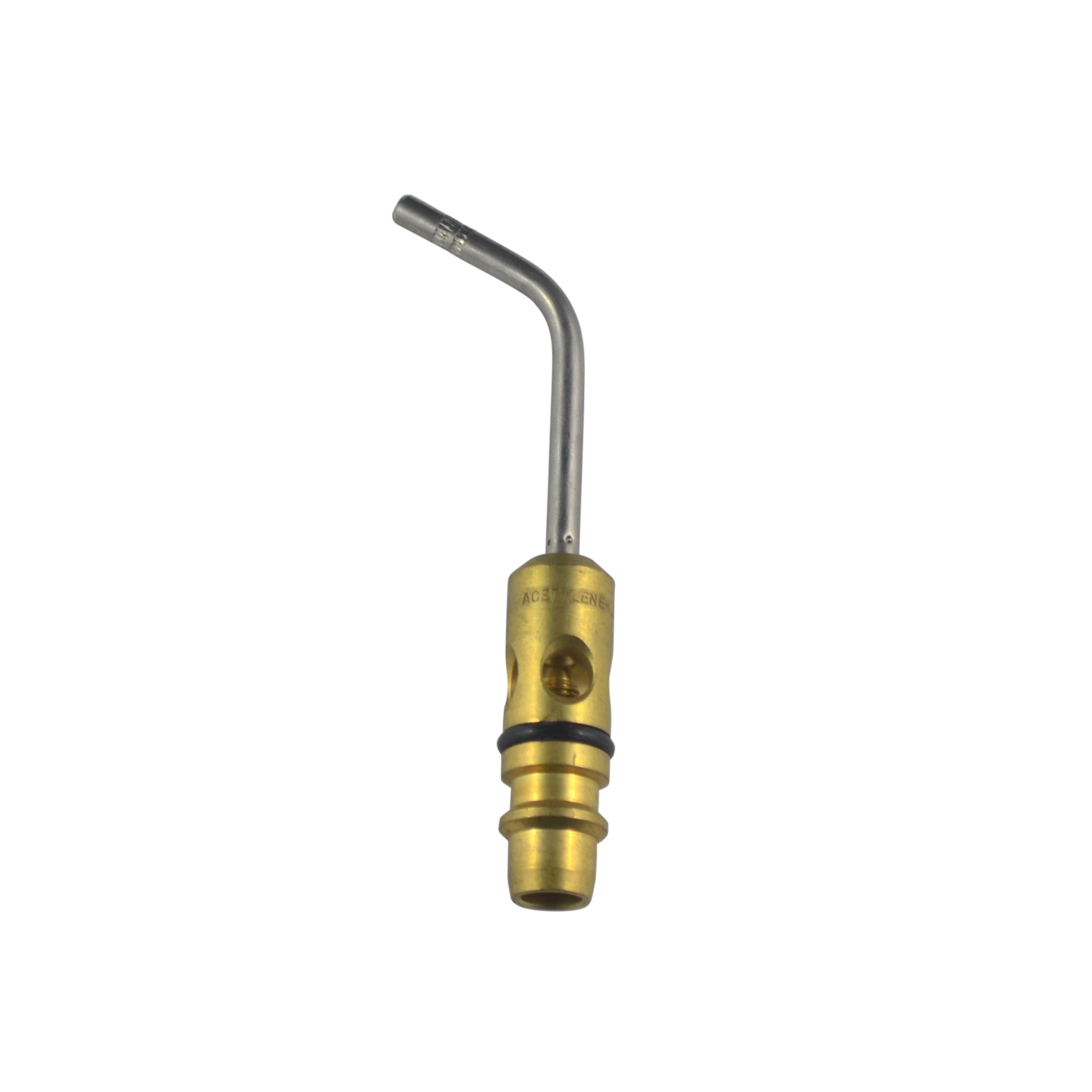

  • ProLine Tip A-2 [0386-0100]ProLine Tip A-2 [0386-0100]
    Niche Gas Products

    ProLine Tip A-2 [0386-0100]

    Air/Acetylene tip. Connects to ProLine handle H-4. Soft solder: 3-15mm Silver solder: 3-10mm Replacement orifice: OR-A2
    $48.10
    $48.10

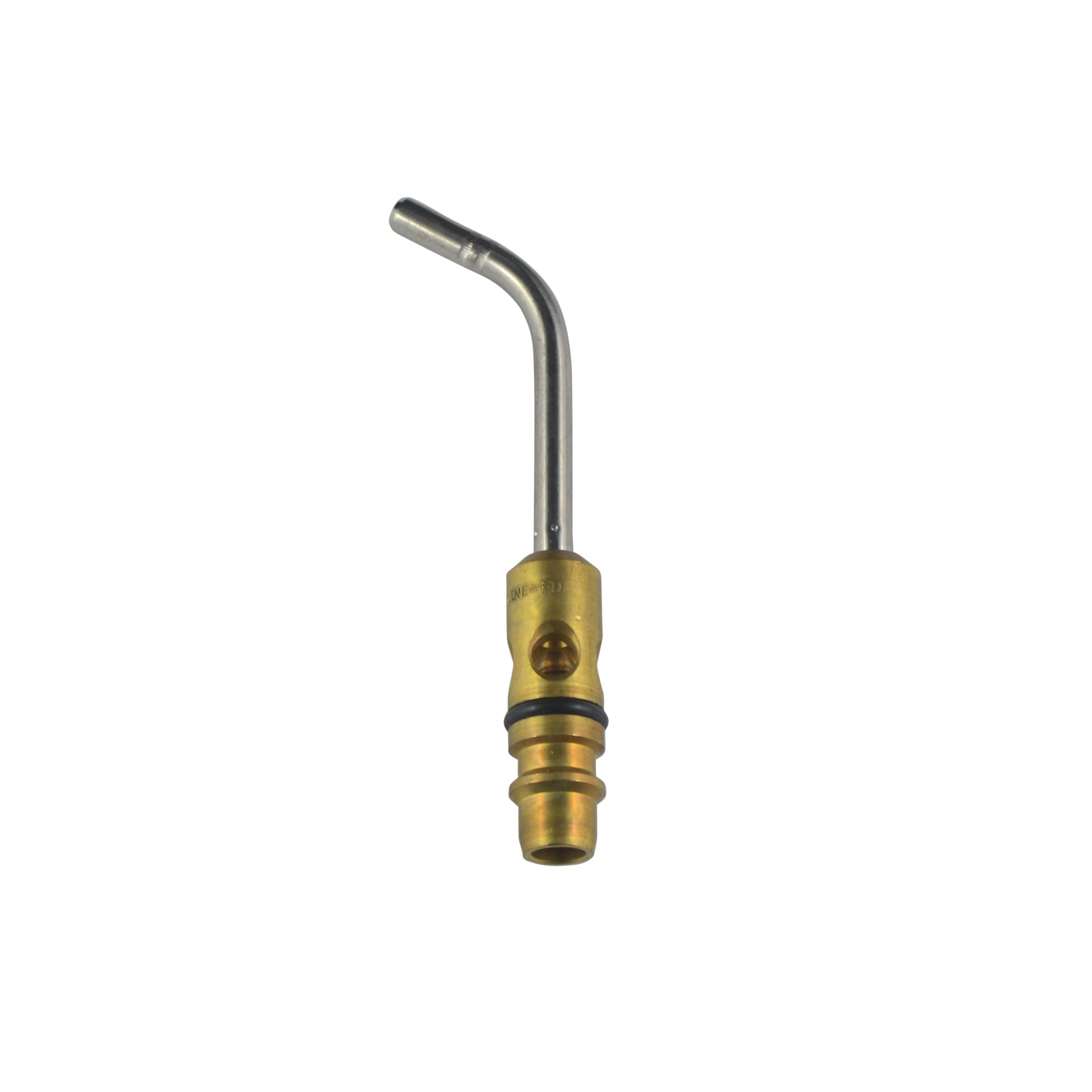

  • ProLine Tip A-3 [0386-0101]ProLine Tip A-3 [0386-0101]
    Niche Gas Products

    ProLine Tip A-3 [0386-0101]

    Air/Acetylene tip. Connects to ProLine handle H-4. Soft solder: 10-25mm Silver solder: 3-12mm Replacement orifice: OR-A3
    $56.30
    $56.30
  • ProLine Tip A-5 [0386-0102]ProLine Tip A-5 [0386-0102]
    Niche Gas Products

    ProLine Tip A-5 [0386-0102]

    Air/Acetylene tip. Connects to ProLine handle H-4. Soft solder: 20-40mm Silver solder: 10-20mm Replacement orifice: OR-A5
    $58.65
    $58.65

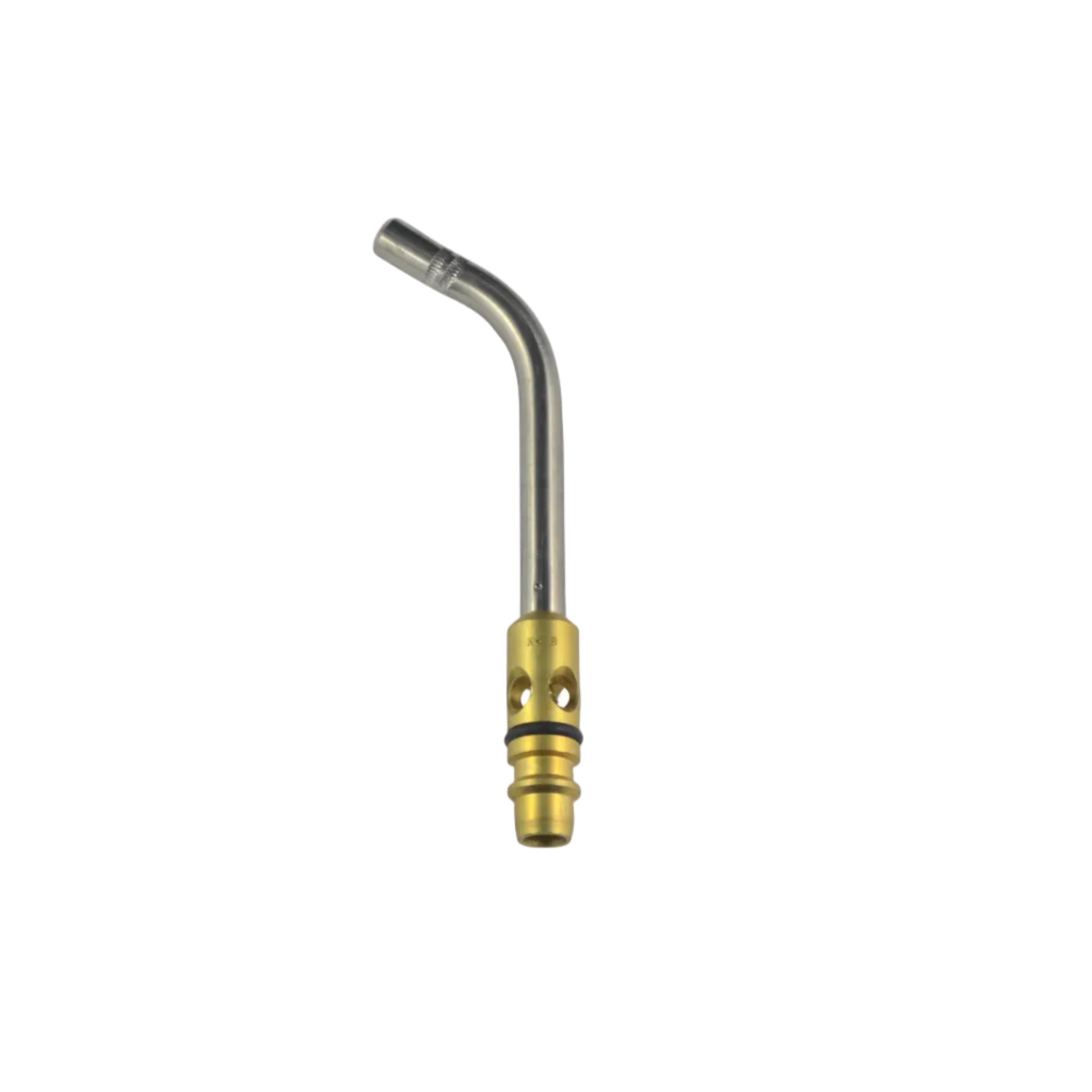

  • ProLine Tip A-8 [0386-0103]ProLine Tip A-8 [0386-0103]
    Niche Gas Products

    ProLine Tip A-8 [0386-0103]

    Air/Acetylene tip. Connects to ProLine handle H-4. Soft solder: 25-50mm Silver solder: 15-25mm Replacement orifice: OR-A8
    $64.55
    $64.55
  • ProLine Tip A-11 [0386-0104]ProLine Tip A-11 [0386-0104]
    Niche Gas Products

    ProLine Tip A-11 [0386-0104]

    Air/Acetylene tip. Connects to ProLine handle H-4. Soft solder: 40-75mm Silver solder: 20-40mm Replacement orifice: OR-A11
    $70.40
    $70.40

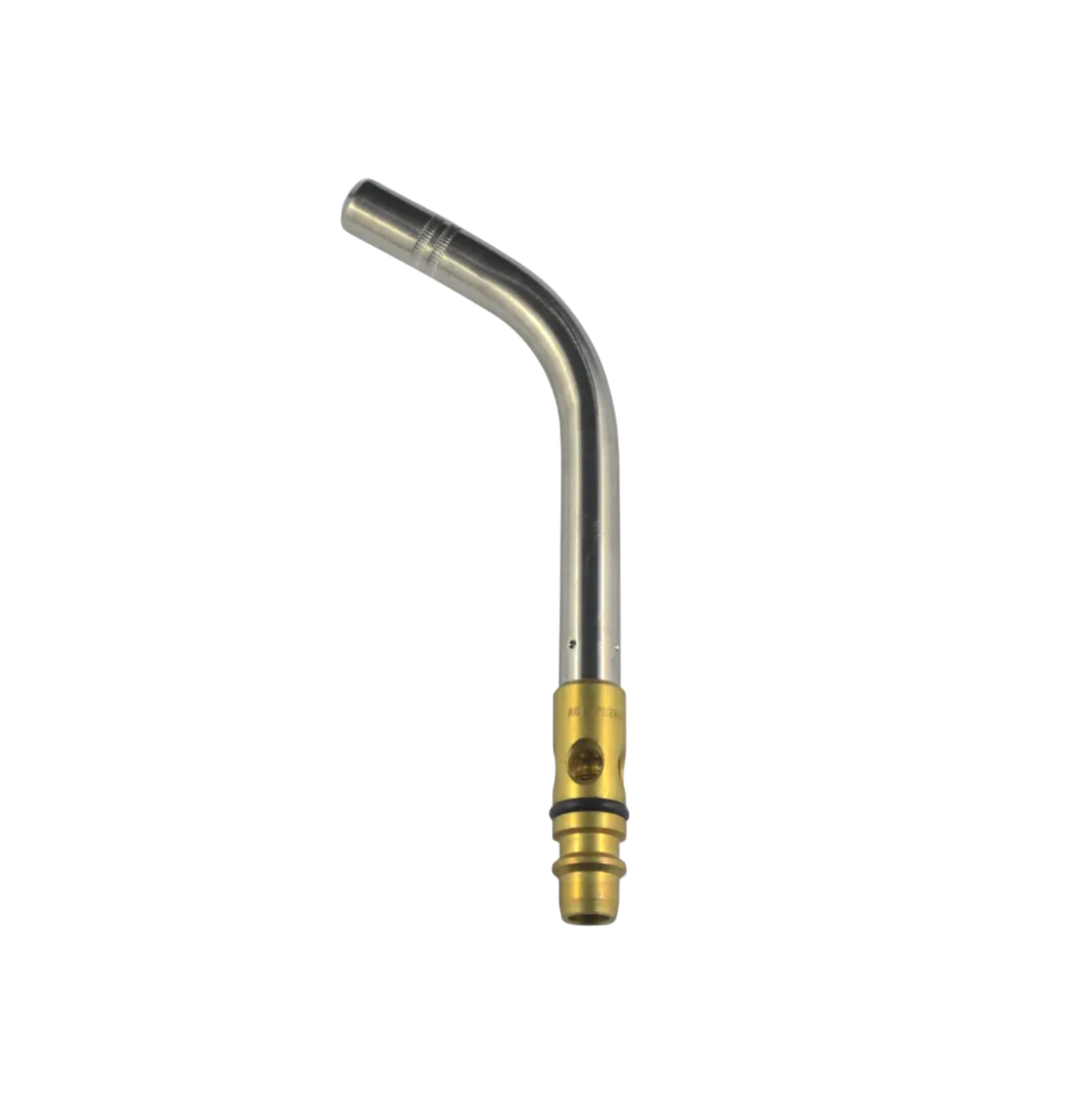

  • ProLine Tip A-14 [0386-0105]ProLine Tip A-14 [0386-0105]
    Niche Gas Products

    ProLine Tip A-14 [0386-0105]

    Air/Acetylene tip. Connects to ProLine handle H-4. Soft solder: 50-90mm Silver solder: 30-50mm Replacement orifice: OR-A14
    $79.20
    $79.20
  • ProLine Tip A-32 [0386-0106]ProLine Tip A-32 [0386-0106]
    Niche Gas Products

    ProLine Tip A-32 [0386-0106]

    Air/Acetylene tip. Connects to ProLine handle H-4. Soft solder: 100-150mm Silver solder: 40-100mm Replacement orifice: OR-A32
    $124.65
    $124.65
  • Tip end 5A-TE [0386-1064]
    Niche Gas Products

    Tip end 5A-TE [0386-1064]

    Replacement brass tip end to suit PL-5A Acetylene tip assembly. Note tip ends are not transferrable between tip assemblies
    $31.90
    $31.90
  • Tip end 8A-TE [(0386-1065)]
    Niche Gas Products

    Tip end 8A-TE [(0386-1065)]

    Replacement brass tip end to suit PL-8A Acetylene tip assembly. Note tip ends are not transferrable between tip assemblies
    $32.26
    $32.26
  • Hose kit 5/8-18 Acetylene [NGP6009-3-C]
    Niche Gas Products

    Hose kit 5/8-18 Acetylene [NGP6009-3-C]

    3Mtr acetylene hose with 5/8-18 LH nuts to connect Handle (H-4) to acetylene regulator
    $33.00
    $33.00
  • Tip end 12A-TE [(0386-1066)]
    Niche Gas Products

    Tip end 12A-TE [(0386-1066)]

    Replacement brass tip end to suit PL-12A Acetylene tip assembly. Note tip ends are not transferrable between tip assemblies
    $32.26
    $32.26

ProLine systems are designed for use with either acetylene or LPG. There is a system specifically for each gas and the systems are NOT inter-changeable between the gas types.

Acetylene ProLine regulators are designed to connect directly onto standard acetylene Type 20 cylinders. Swirl combustion using the acetylene makes them ideal for fast brazing. Where brazing speed is not essential, the LPG versions are recommended. To make it easy for you, NGP has grouped the ProLine components into systems depending on how many self-lighting tips you want. ProLine torch handles also accept a range of standard acetylene tips namely A-2, A-3, A-5, A-8, A-11, A-14, A-32.

For details on tip specification, copper pipe brazing sizes for silver solder and soft solder, view the PDF.
