Hose Fittings & Adaptors

90° Cylinder Adaptor – Type 20 (Acetylene & Hydrogen) Use this adaptor to change the outlet orientation of an Acetylene or Hydrogen cylinder—ideal when gas suppliers switch from vertical to horizontal valves and your regulator is configured for the previous setup. Type 20F configuration:...

Outlet Connector – 1/4″ NPT Male to 3/8″ BSP LH Designed as an outlet connection for fuel gas regulators, using the common 3/8″ BSP LH hose thread found on UK-sourced regulators etc. Also suitable as an inlet connection for high-pressure fuel manifolds and point...

Suitable for a wide range of applications where a low-cost option is required to connect to ¼" NPT. NGP mini valves are rated for use up to 450 psi (31 bar) and are commonly used for equipment drains, spray/nozzle equipment, low-pressure gas systems, and applications where...

Right-angle connector – Fuel Gases Typically used on the outlet of a regulator, the right-angle design helps reduce excessive hose “stick out.” Thread: 5/8″-18 LH nut to 5/8″-18 LH male

A-Type outlet adaptor (3/8″-24) for USA-sourced torches and regulators Suitable as an outlet connection for regulators or an inlet connection for torches sourced from the USA. A-Type (3/8″-24) is a common hose thread used on American-made equipment. Designed for fuel gases including acetylene, LPG,...

A-Type outlet adaptor (3/8″-24) for Oxygen & Inert gases Suitable as an outlet connection for regulators or an inlet connection for torches sourced from the USA. A-type (3/8″-24) is a common hose thread used on American-made regulators and equipment. Designed for Oxygen and inert...

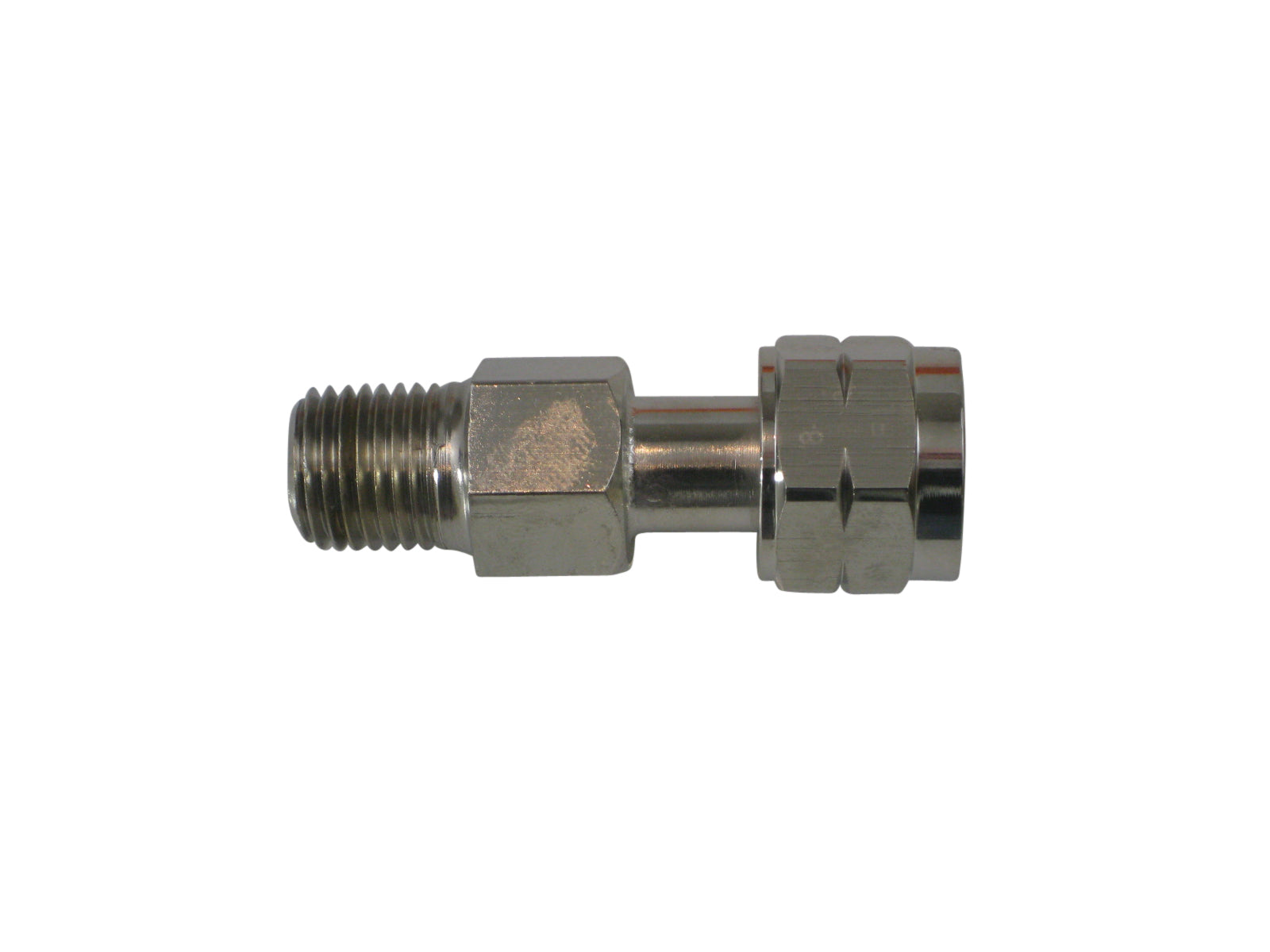

Outlet adaptor for regulators – 1/4″ NPT to 9/16″-18 LH Designed for connecting AUS/NZ hoses to USA-sourced regulators. This adaptor provides a common hose connection for American-made equipment. Thread: 1/4″ NPT male to 9/16″-18 LH male Application: Outlet connection for regulators

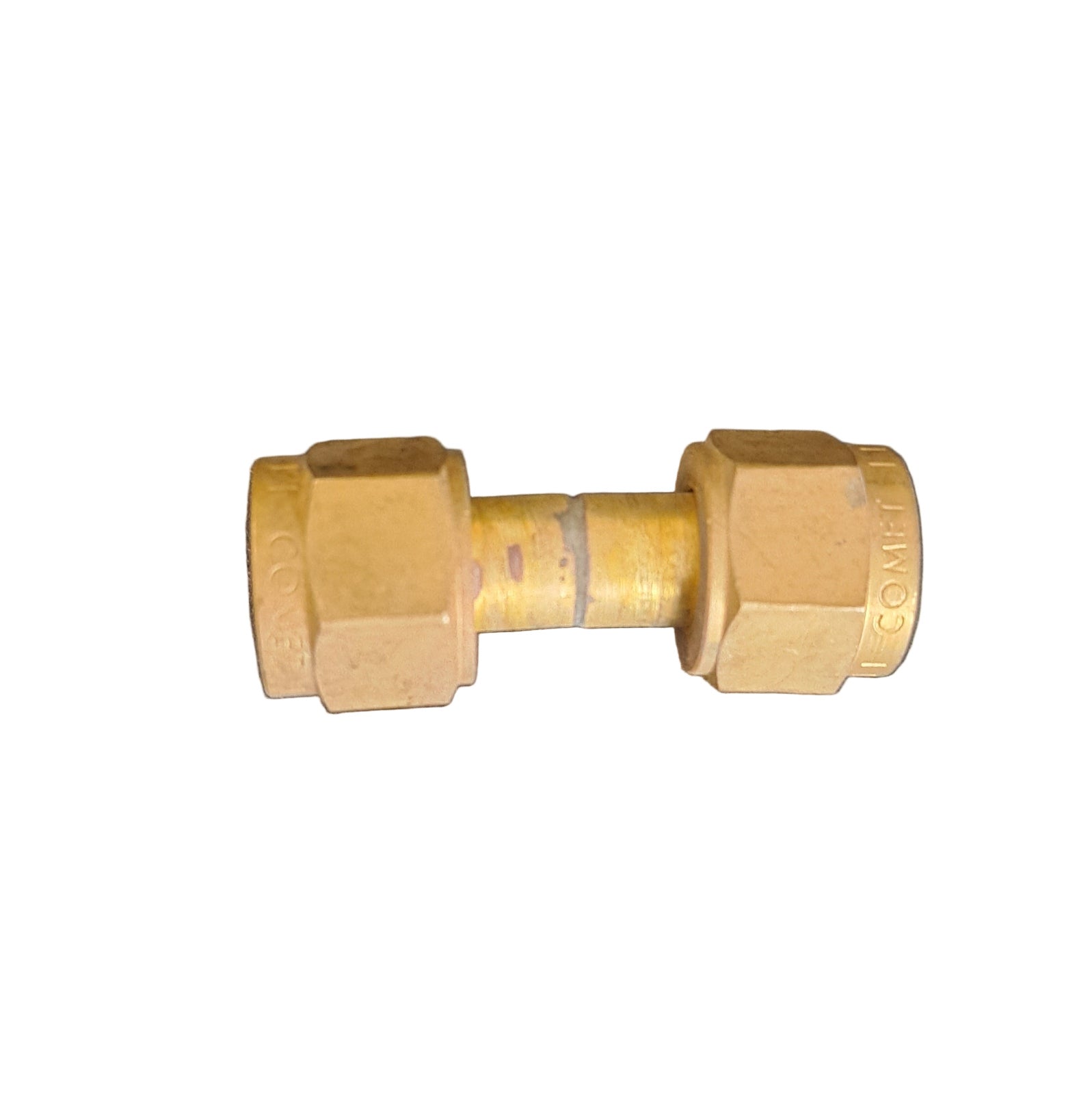

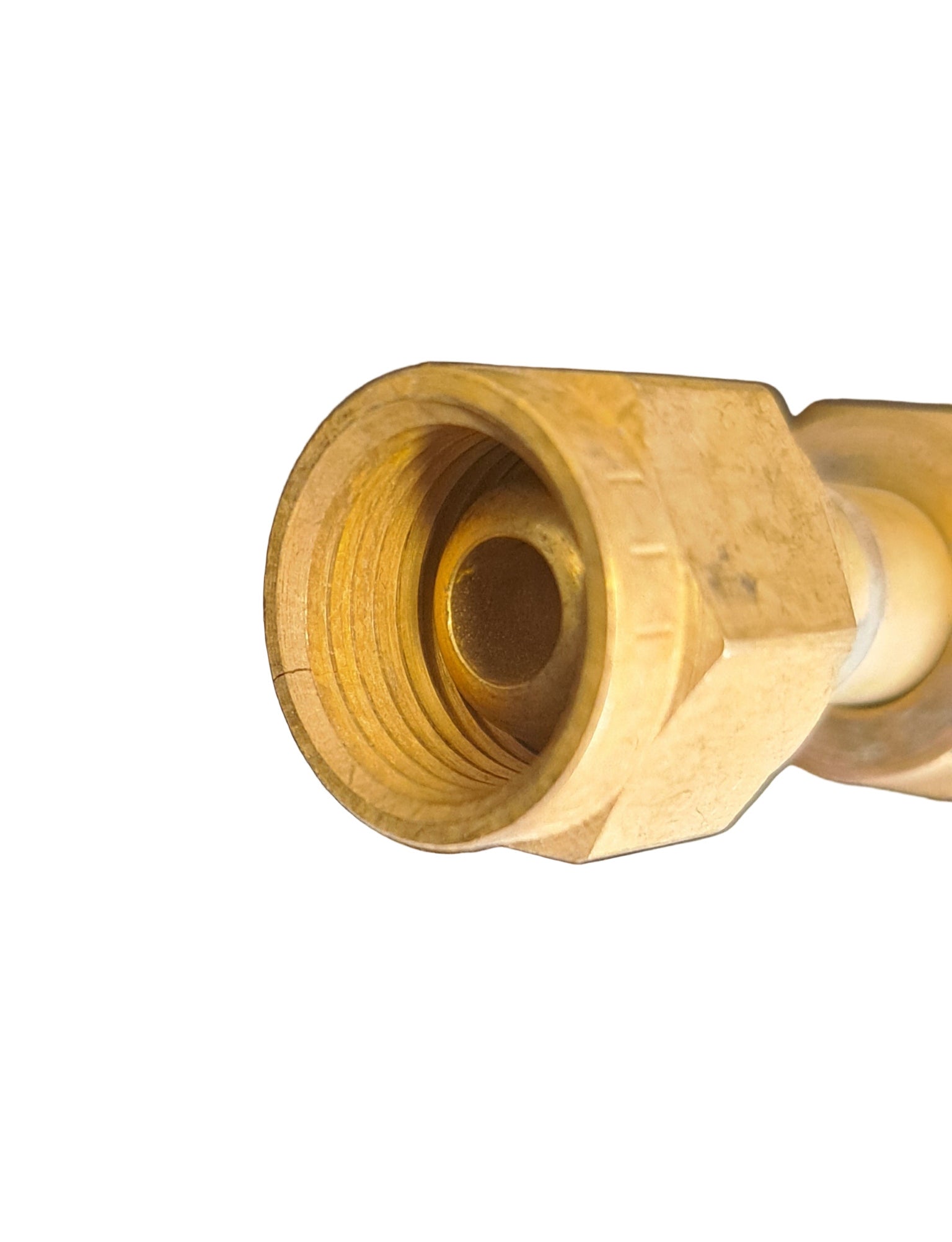

Brass hose joiner with internal seat (5/8″-18 RH) Designed to join MIG or TIG torch hoses together. Features an internal concave seat, with the seat angle opposite to the standard 5/8″-18 hose connection. Thread: 5/8″-18 RH internal threads on both ends Construction: Brass with...

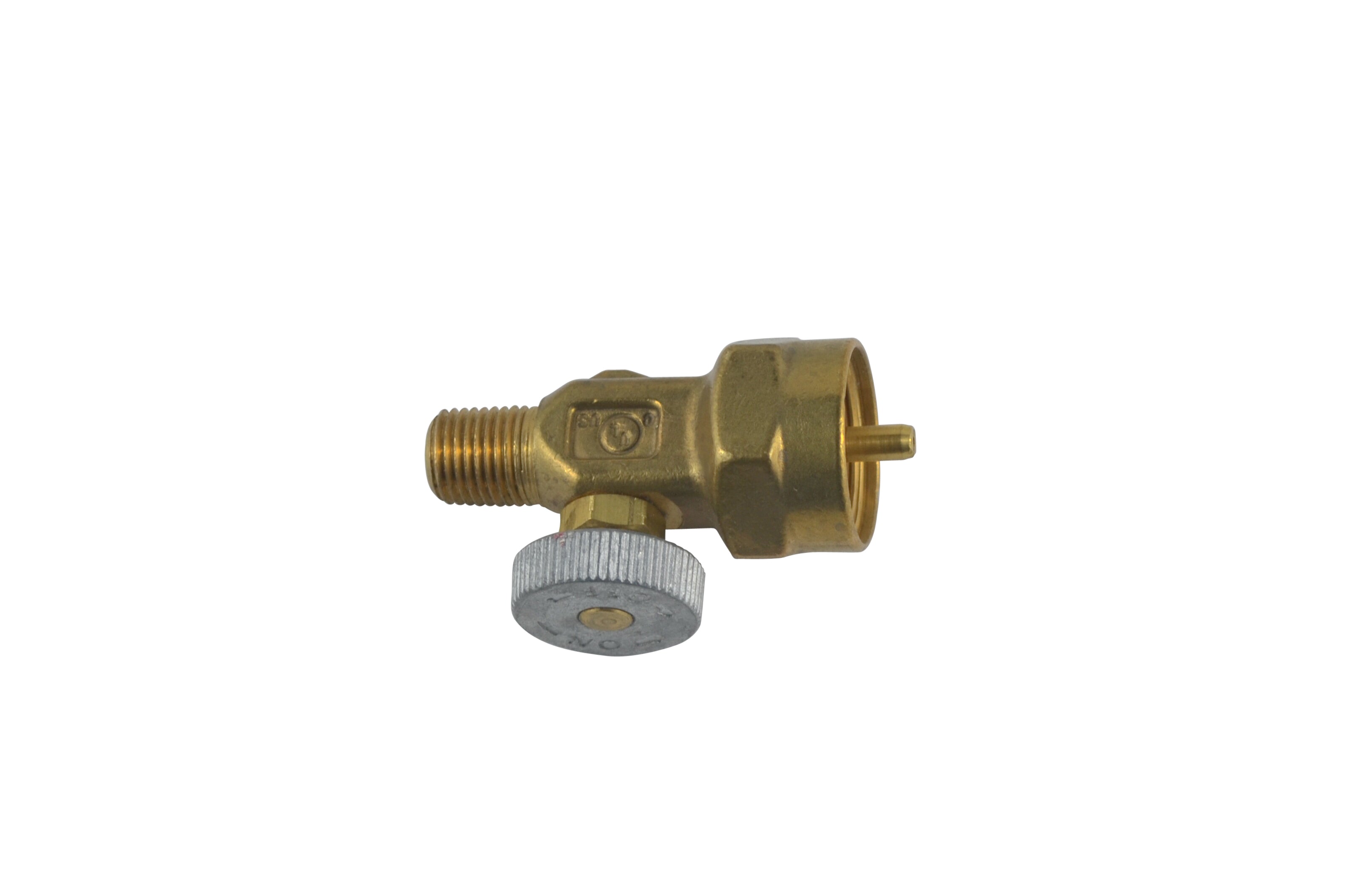

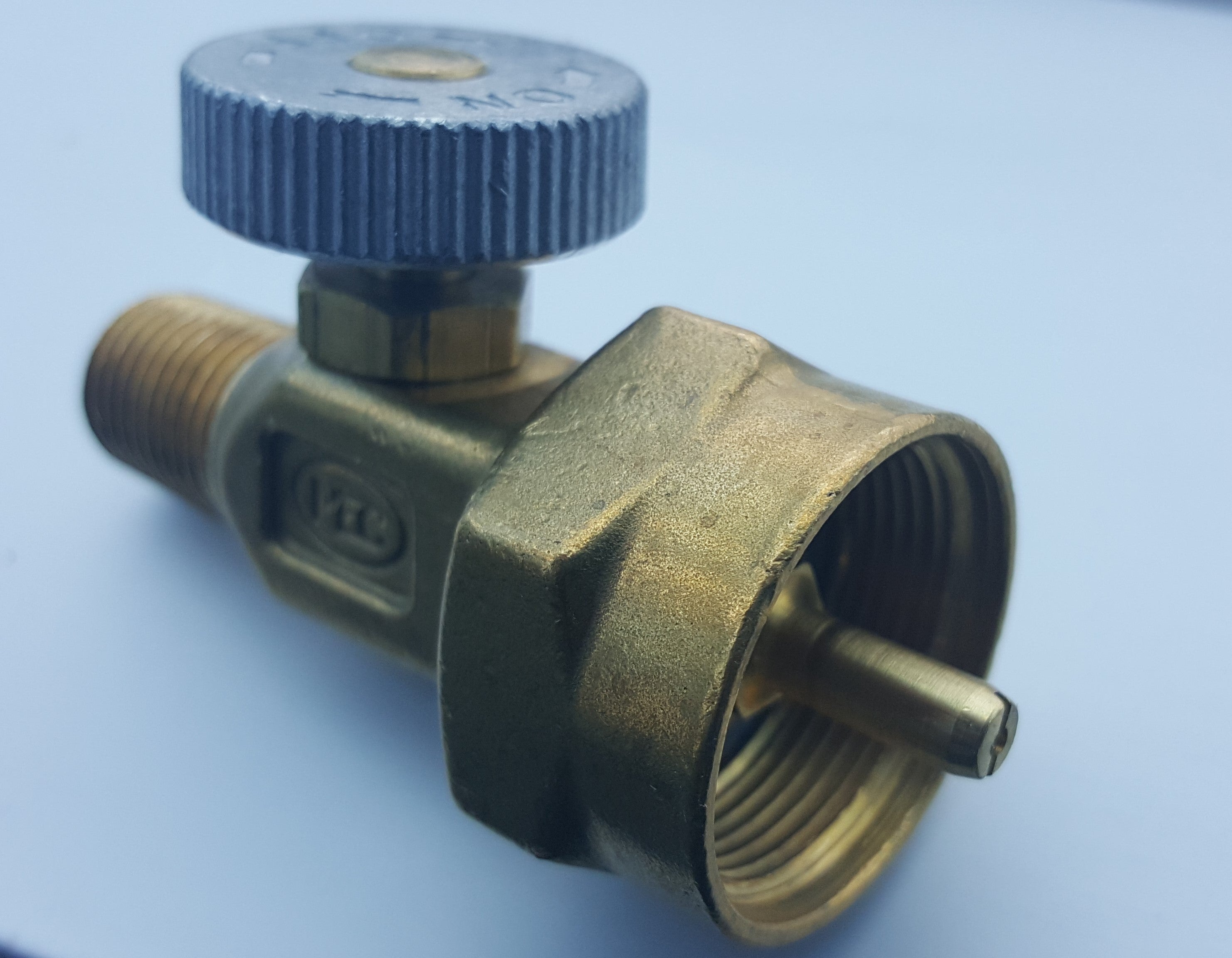

This adapter screws on to a non-refillable MAPP gas LPG/propane cylinder. The ¼" NPT female thread then allows easy connection to a range of equipment options.

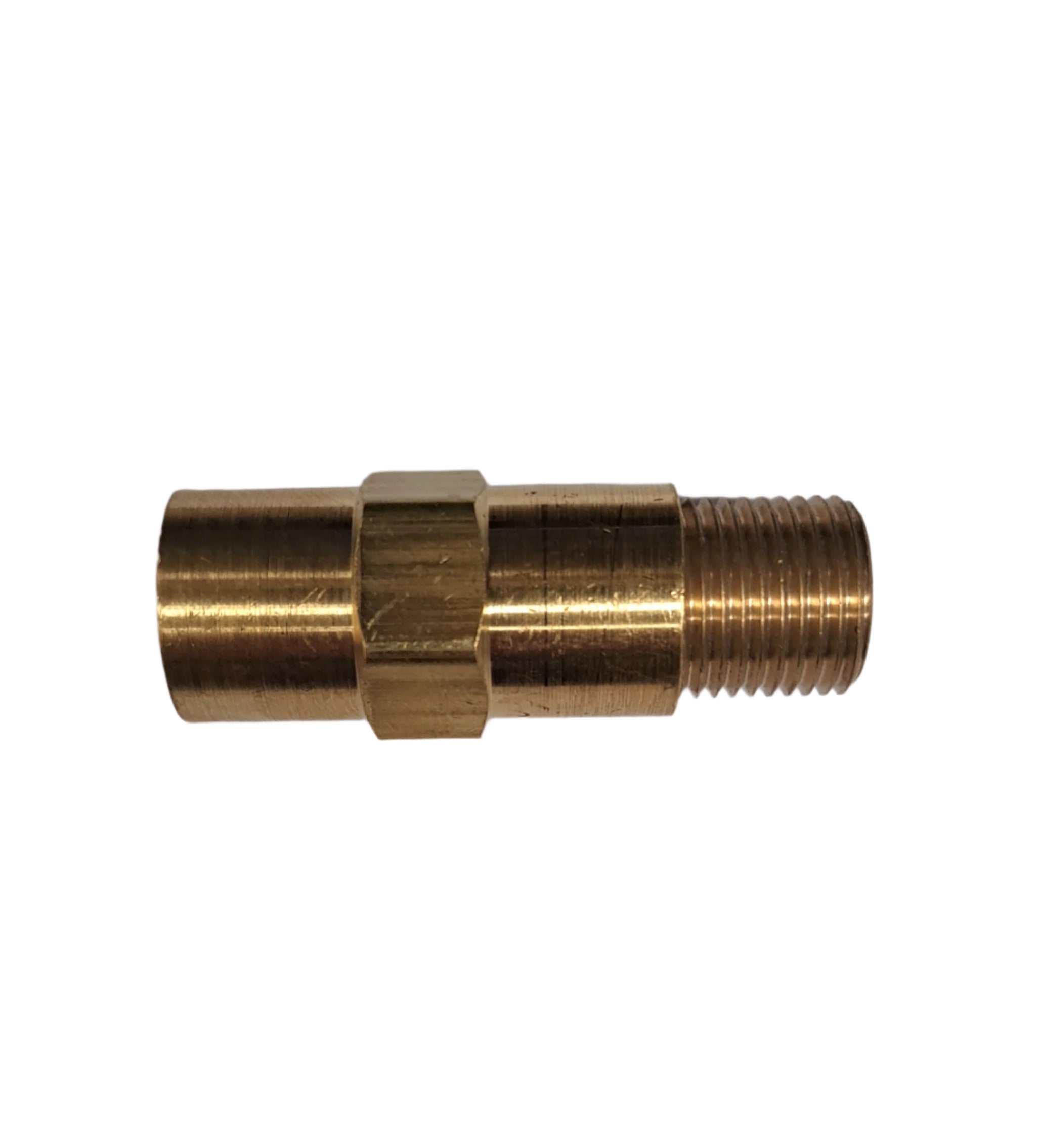

Adaptor – 5/8"-18 LH Nut to 1/4" NPT Converts 5/8"-18 LH connections to 1/4" NPT Typically used to connect to hoses with a 1/4" NPT female fitting

Extension:  1/4" NPT female to 1/4" NPT male Overall Length: 76mm OAL Material: Brass

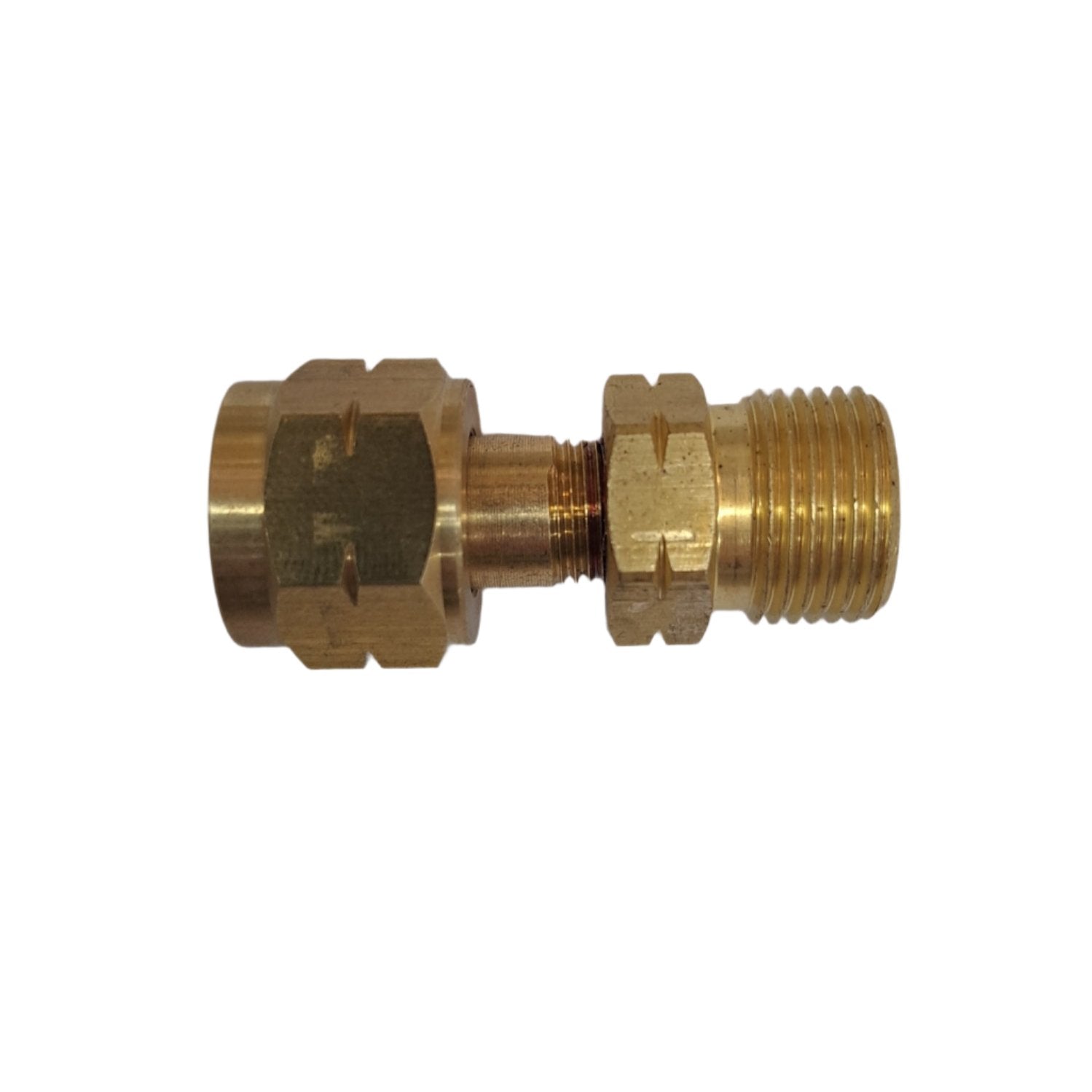

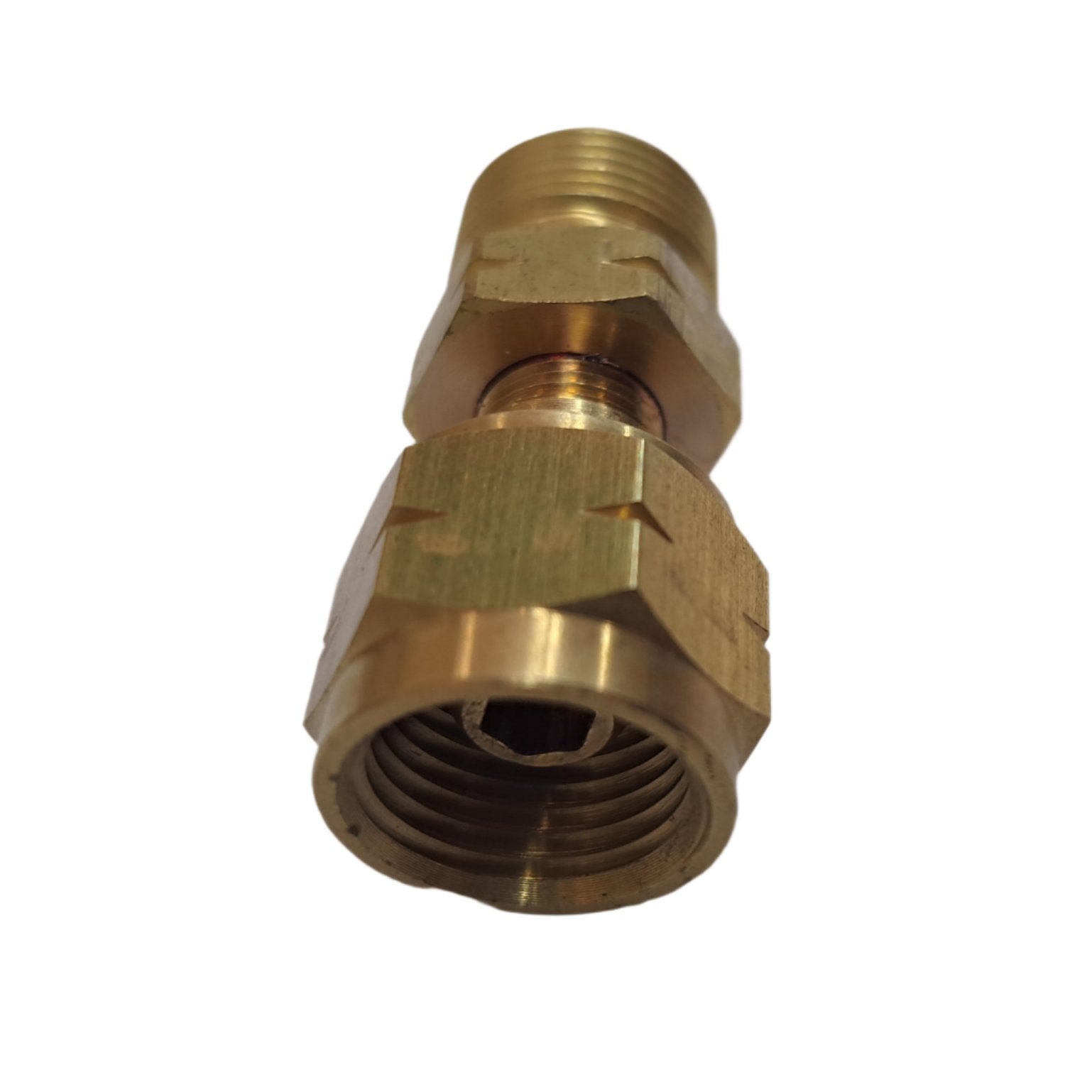

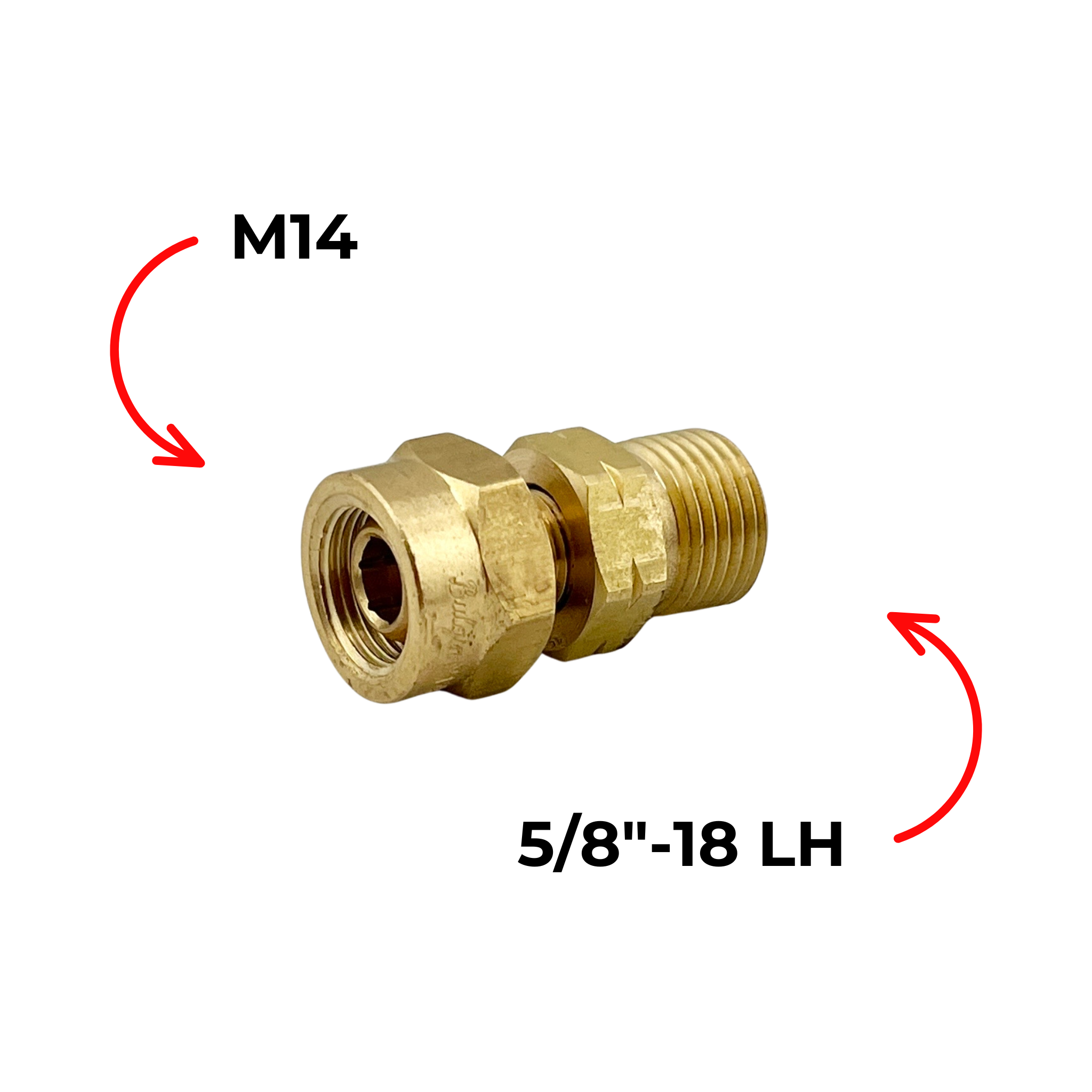

Thread adaptor for M14 male to 5/8″-18 LH connection Designed for converting a gas torch or other equipment with an M14 male thread to a 5/8″-18 LH male connection. Thread: M14 male to 5/8″-18 LH male Application: Enables compatibility between M14 and 5/8″-18 LH...

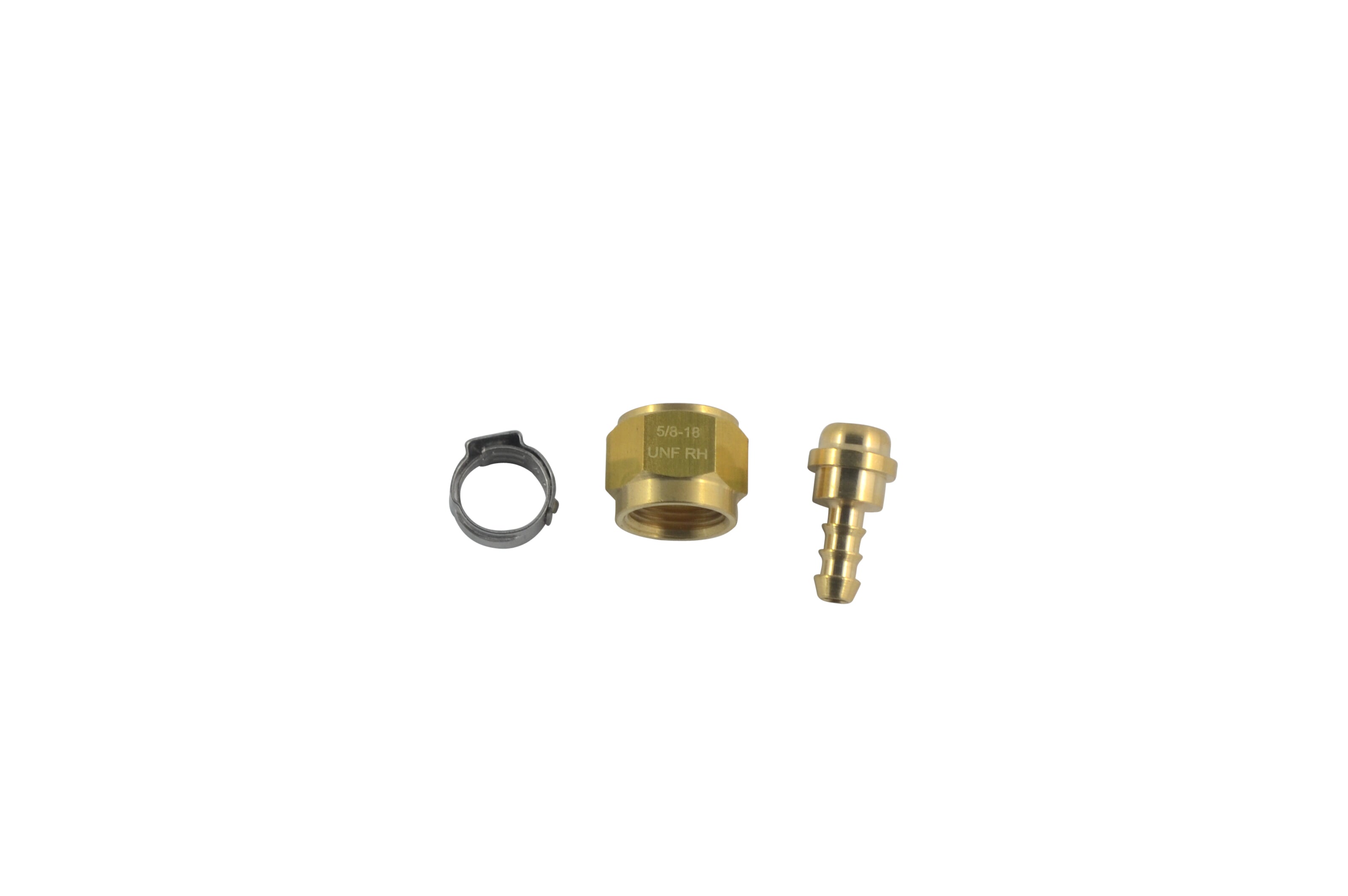

Oxygen hose kit (5 mm ID) with 5/8″-18 RH nut Designed for connecting oxygen hoses with a 5 mm internal diameter. Thread: 5/8″-18 RH nut Hose fitting: 5 mm nipple Note: Requires ferrule to be crimped to outside of hose

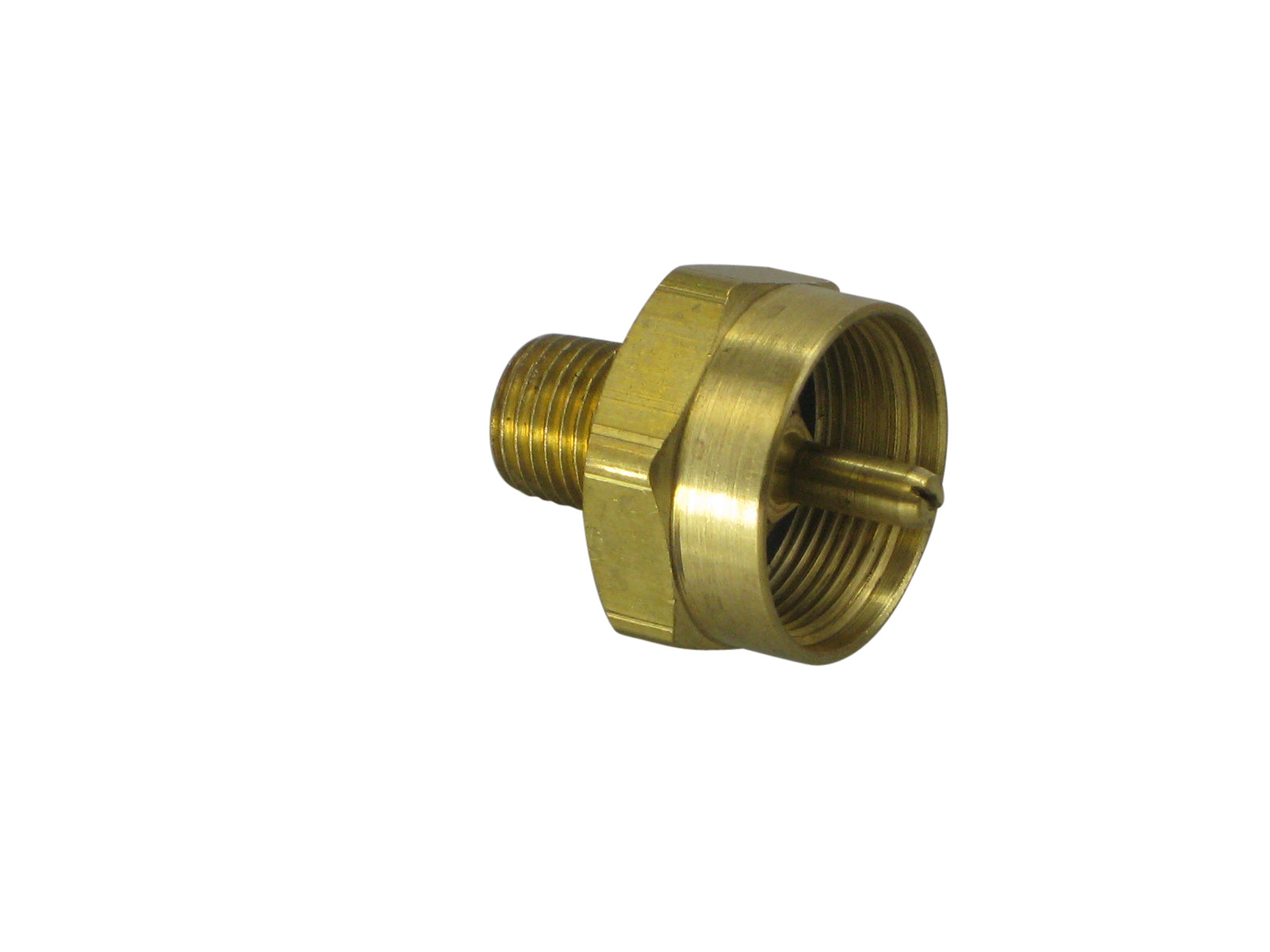

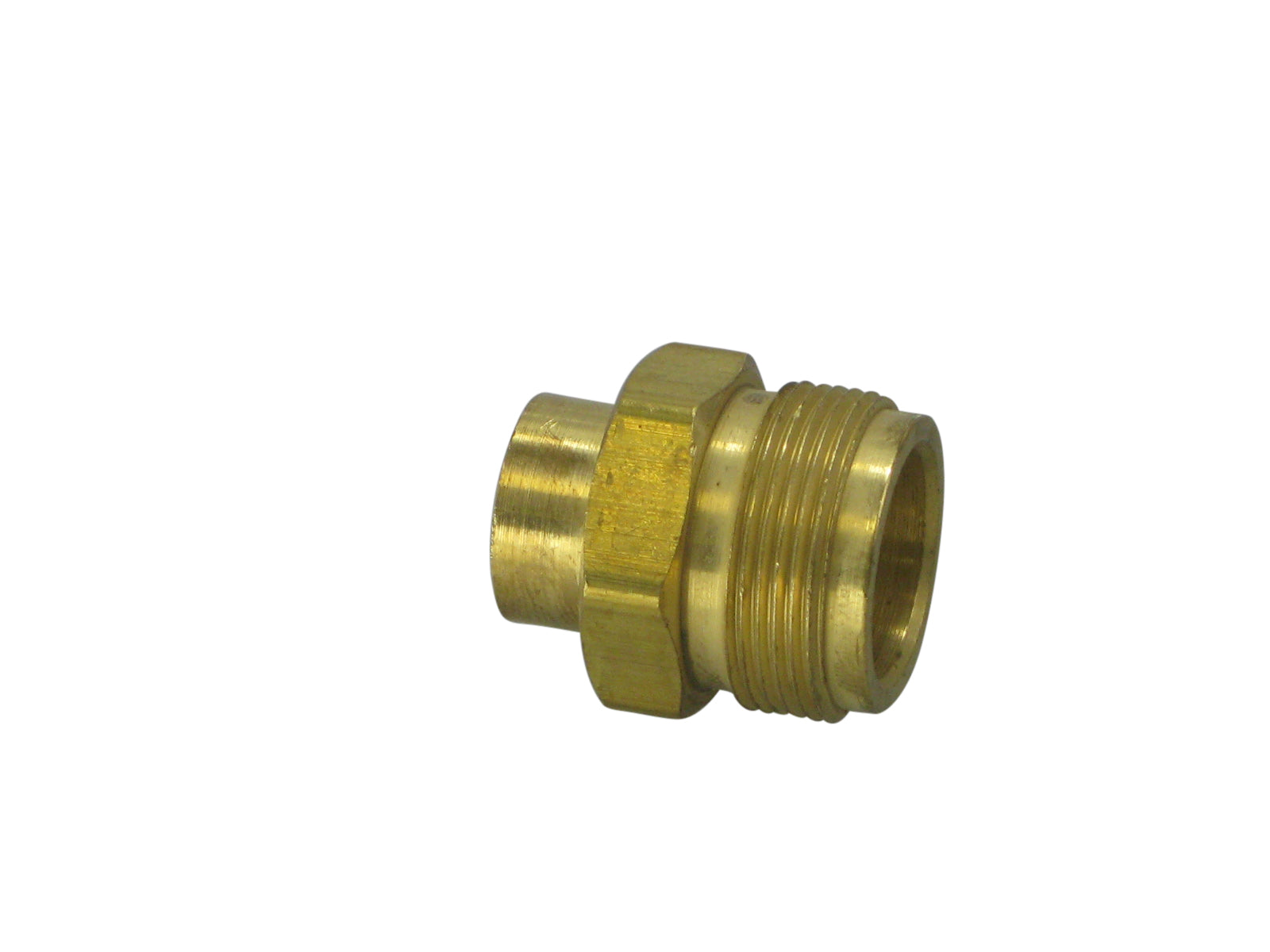

This adapter screws on to a non-refillable MAPP gas LPG/propane cylinder. The ¼" NPT male thread then allows easy connection to a range of equipment options.

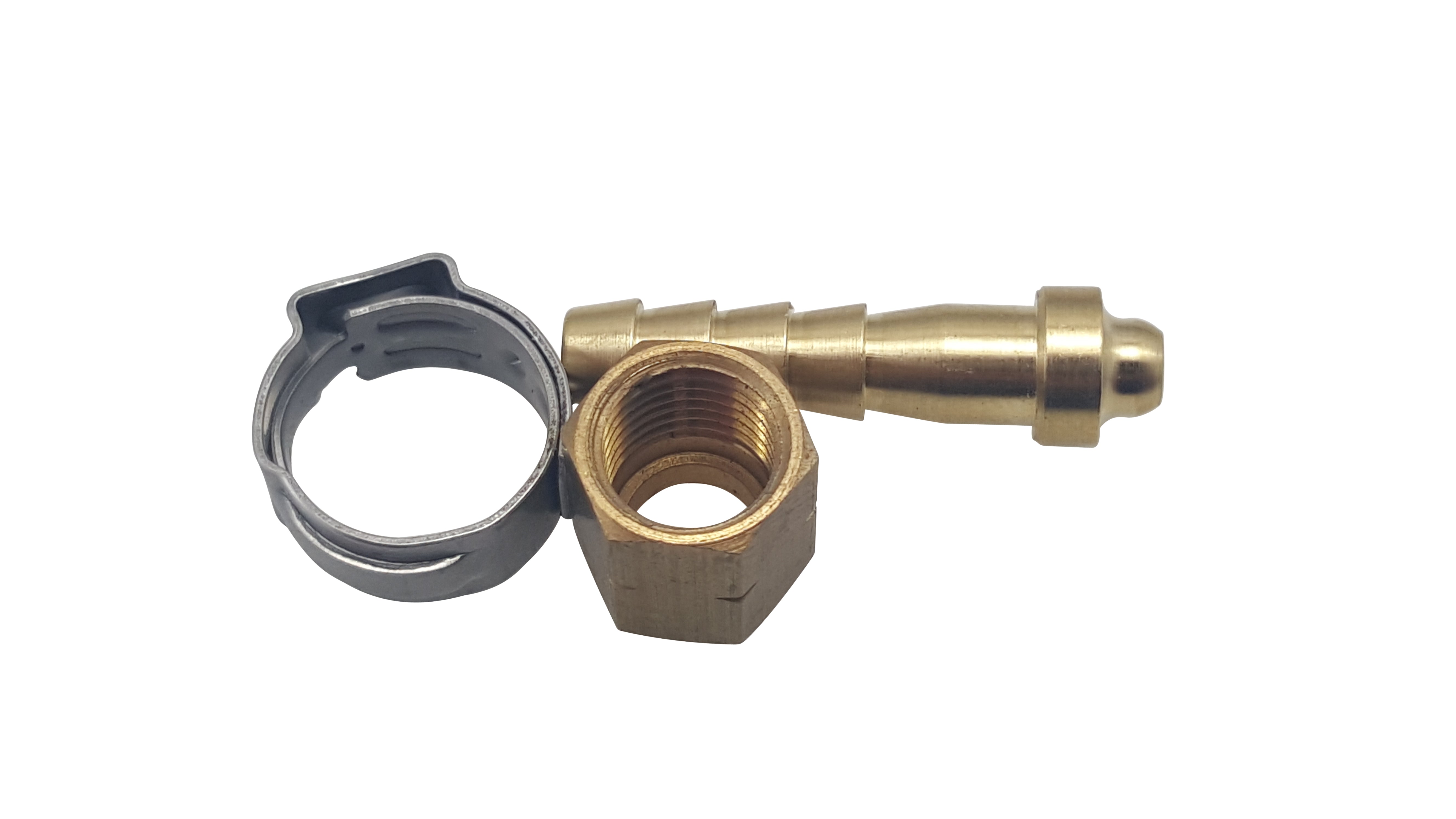

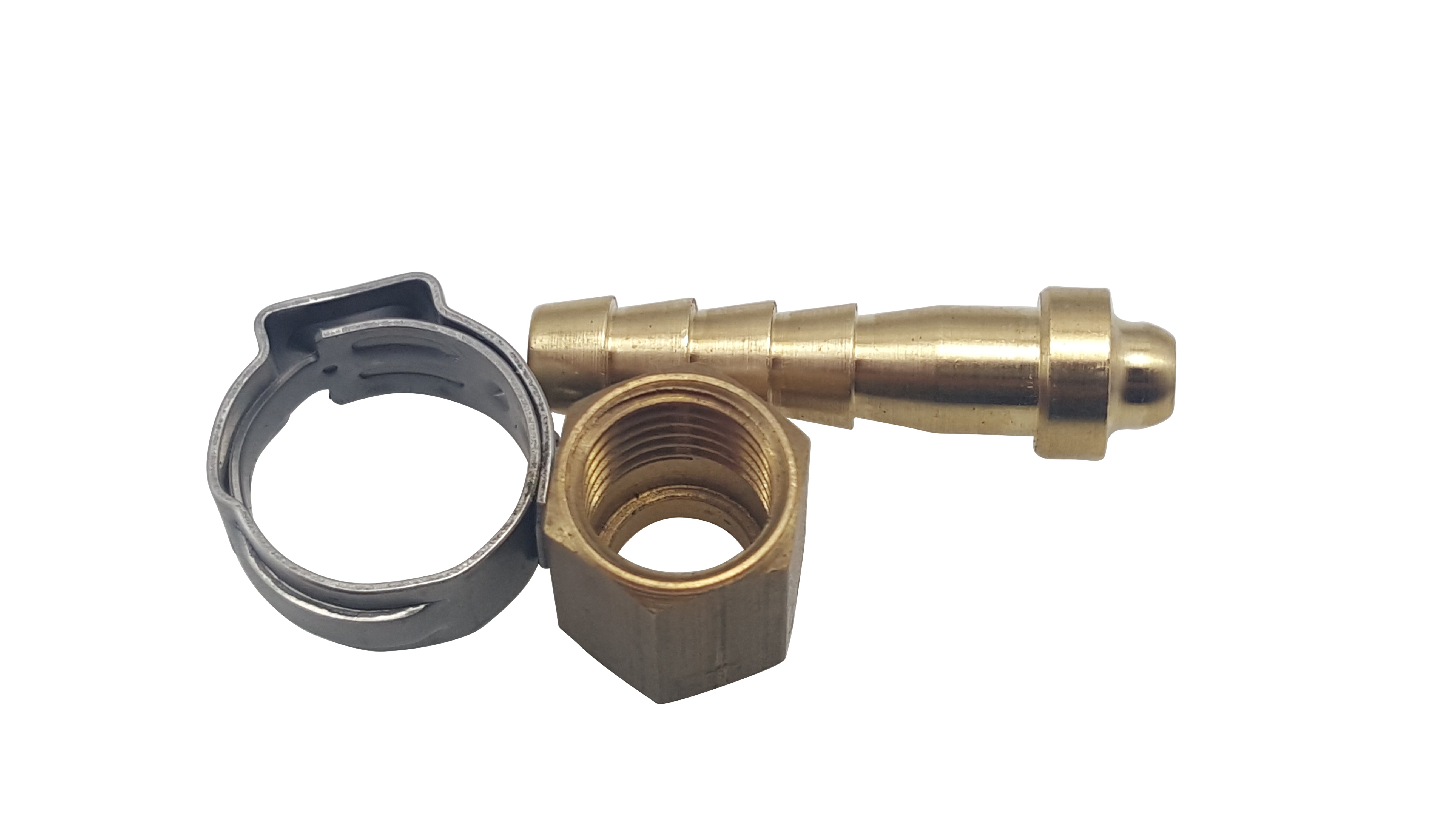

Fuel gas hose kit (5 mm ID) – A-series (3/8″-24 LH) Designed for connecting fuel gas hoses to USA-sourced torches and regulators. A-Type (3/8″-24) is a common hose thread used on American-made equipment. Suitable for acetylene, LPG and hydrogen.  Hose ID: 5 mm Thread: 3/8″-24 LH...

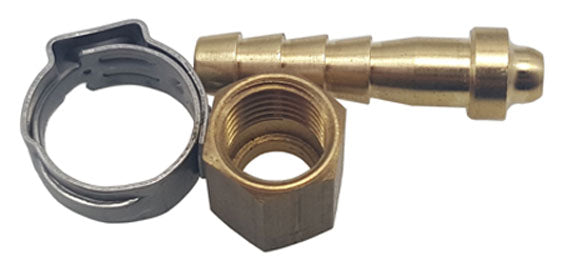

Oxygen & inert gas hose kit (5 mm ID) – A-Type (3/8″-24 RH) Designed for connecting oxygen or inert gas hoses to USA-sourced torches and regulators. A-Type (3/8″-24) is a common hose thread used on American-made equipment. Hose ID: 5 mm Thread: 3/8″-24 RH nut Includes:...

Outlet Connector – 1/4″ NPT Male to 3/8″ BSP RH Outlet connection for Oxygen & Inert Gases regulator. Common hose connection for UK sourced regulators etc. Inlet connection for high pressure Oxygen & Inert gases manifolds and point valves.

Thread adaptor – 1/4″ male to 5/8″-18 Designed for connecting equipment with a 1/4″ male thread to fittings with a 5/8″-18 thread. This adaptor converts the outlet to enable compatibility between the two thread types. Thread: 1/4″ male to 5/8″-18 male Application: Enables connection...

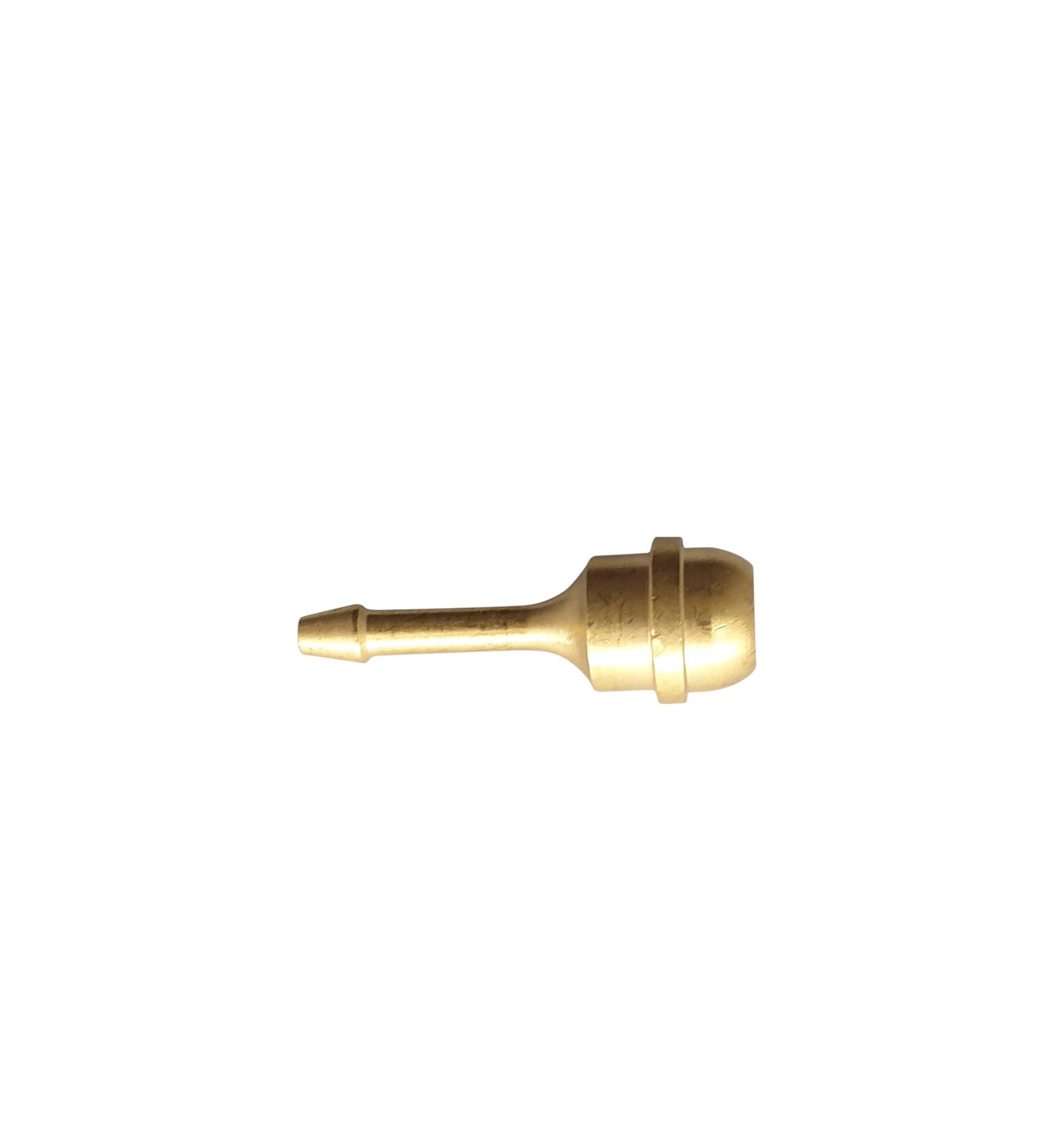

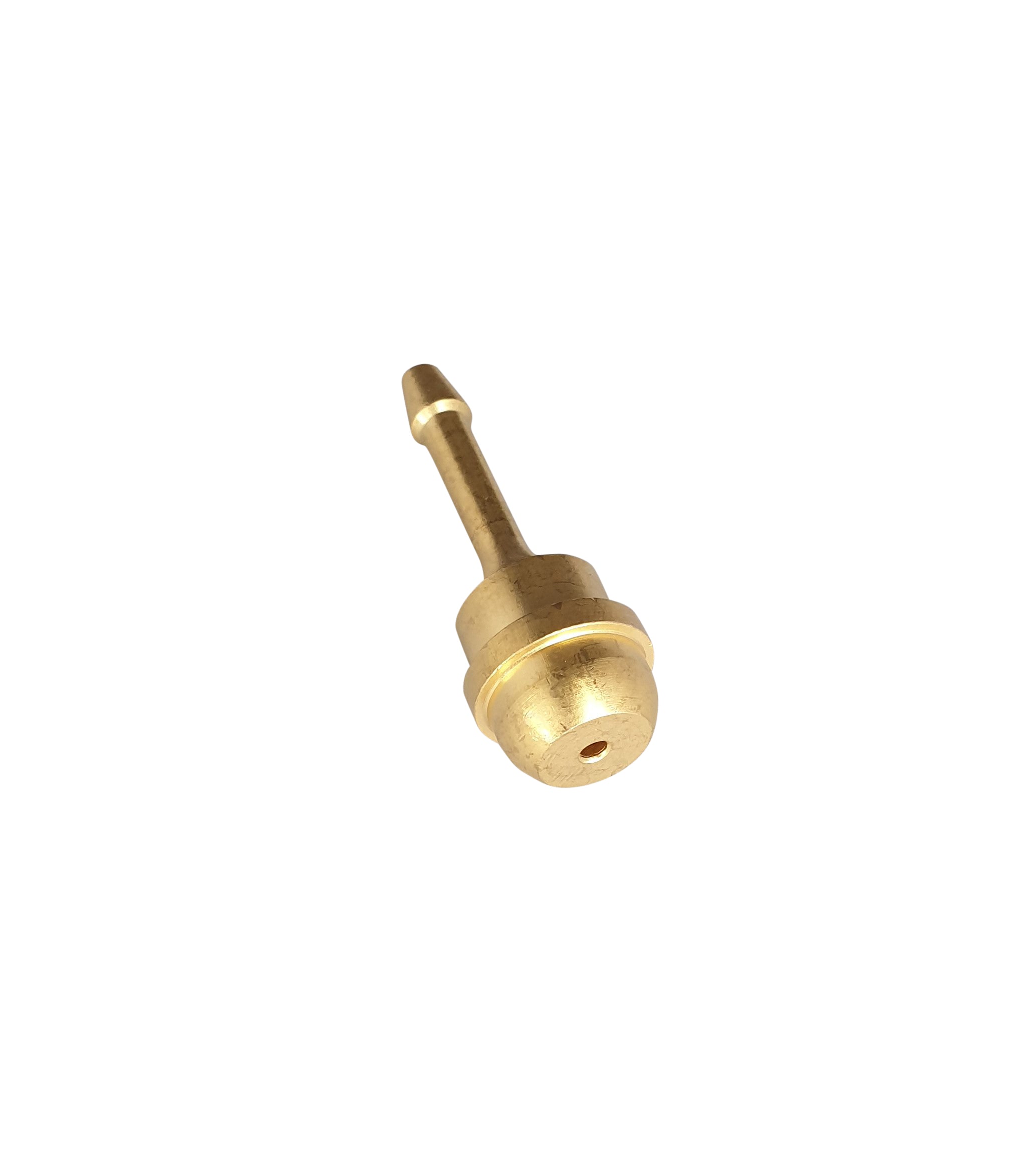

Hose Nipple – 3 mm This 3 mm barb (tail) suits mini or micro torches fitted with lightweight hose. It fits standard AUS/NZ and USA (Type B) welding nuts.

45° Street Elbow – ¼" NPT M–FBrass connector rated to 3,000 psi for high-pressure gas applications. Threads: ¼" NPT male to ¼" NPT female Application: Allows adjustment of the angle by 45° on a regulator; suitable for use on gases rated up to 3,000 psi Alternate...
